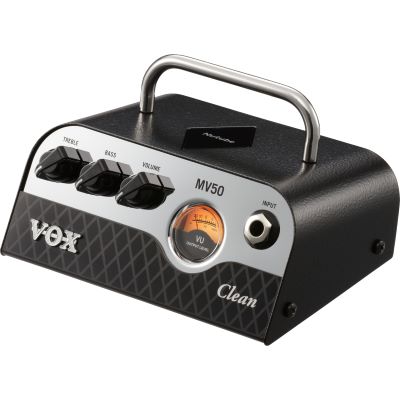

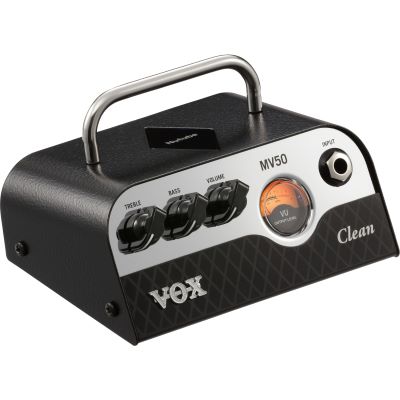

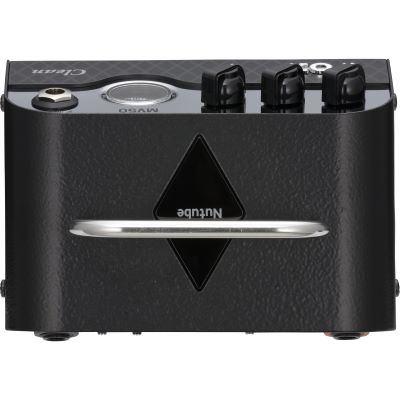

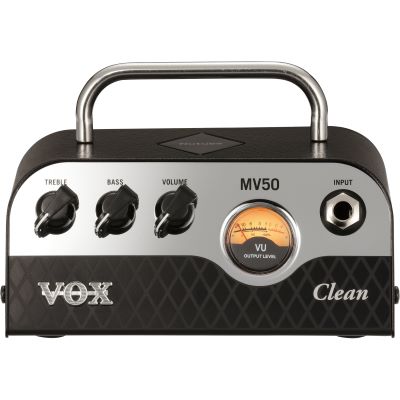

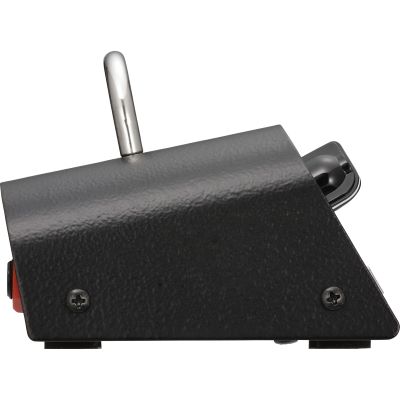

Vox MV 50 Clean

The Vox MV50AC is a super light electric guitar top equipped with a Nutube 6P1. The "Clean" model (CL model) produces a natural, undistorted sound with an enormous headroom. Alternatively, the preamplifier is also available in crunch or rock version.

Features:

• MV50 Series - "Clean" Version
• Analog preamplifier with revolutionary Nutube technology
• Weighs only about 500 grams
• 50 Watt continuous output power
• The circuits of the MV50 are similar to the classic analog circuits.
• Class D' output stage for 'quiet', efficient and powerful operation
• EQ switch for tuning to the bass response of the speakers used
• Line/headphone jack with speaker simulation for direct recording
• Stunning retro look with mirror front and VU meter
• Fits perfectly to the new VOX boxes BC108 and BC112

Technical data:

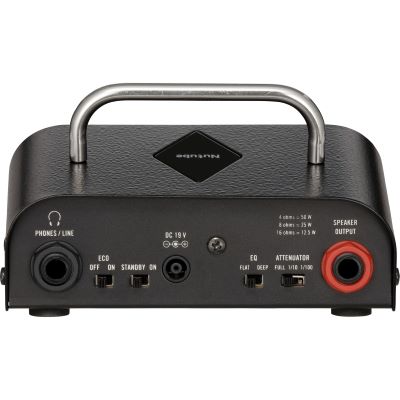

• Inputs/outputs: INPUT x1, LINE/PHONES x1, SPEAKER OUT x1
• Preamplifier: Nutube 6P1
• Ausgangsleistung：Max. 50W RMS@4Ω, 25W RMS@16Ω, 12.5W RMS@4Ω
• Power supply: DC19V power supply unit
• Current consumption: 3,43A
• Dimensions (W x D x H): 135mm x 74.5mm x 100mm
• weight: 0,6kg
• Scope of delivery: Power supply unit

Specs:

• Impedance: 4 Ω
• Impedance: 8 Ω
• Impedance: 16 Ω
• Channels: 1
• Effect Processor: no
• Power: 50 W
• Power: 25 W
• Power: 12.5 W
• Amplification: Solid State
• Amp Type: E-Guitar Head
• Headphone Out: yes
• digital modelling: no
• Type: Amps
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (1.11 MB)
