Warwick DS 500 Double Stage Bass Amp Head with USB Interface 500 Watt

Warwick DS 500 Double Stage Bass Amp Head with USB Interface 500 Watt - Two-channel power for flexible bass performance

The Warwick DS 500 Double Stage Bass Amp Head with USB Interface 500 Watt is the perfect choice for bassists who value versatility, power and modern connectivity. This compact and powerful amplifier from the renowned DS series offers two fully independent channels with precise sound shaping, a powerful Class D power amplifier as well as USB and Bluetooth functions for contemporary work in the studio, on stage or in the rehearsal room. Whether you need different bass sounds, cover different playing styles or want to switch between two basses, the DS 500 delivers the flexibility you need in a robust, road-ready format.

Warwick Amplification - Advanced technology for demanding bassists

The DS series from Warwick was specially developed for modern bassists who need to rely on their equipment. The DS 500 delivers the sonic precision and technical sophistication expected in this class. Two separate channels, each with its own gain and EQ range, allow lightning-fast switching between sounds, while an integrated compressor, ultra-sensitive tuning function and extensive connectivity make the system a central component of any professional setup.

Independent signal paths for maximum creativity

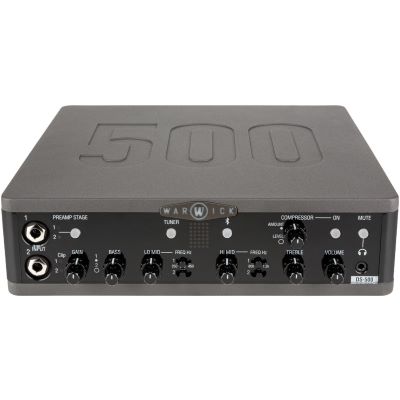

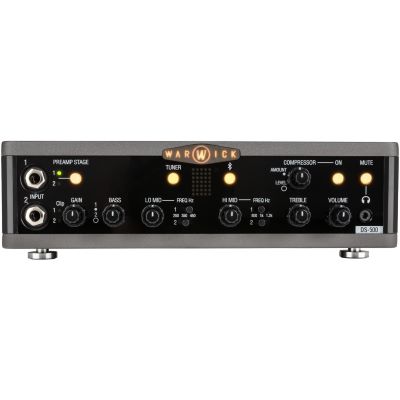

Each channel is equipped with tandem controls for Gain, Bass, Lo Mid, Hi Mid, Treble and Volume. In addition, the effective frequency of Lo Mid and Hi Mid can be adjusted via their own FREQ selector switches - a valuable feature for targeted sound customization. The cross-channel compressor can be activated directly via a separate switch and controlled via Amount/Level. The LED CLIP display helps to keep an eye on the optimum input level. An integrated MUTE switch, TUNER switch with LED tuning indicator and a headphone output (3.5 mm stereo) round off the front panel controls. Two input sockets (6.35 mm) allow the use of different signal sources.

Technical details of the Warwick DS 500 Double Stage Bass Amp Head

The Class D power amplifier delivers 500 watts into 4 ohms or 300 watts into 8 ohms - more than enough power for live stages of any size. The sound is controlled via a 4-band EQ with presets for the mid-range. The compact design (250 x 270 x 74 mm) and moderate weight of just 3.47 kg make the DS 500 easy to transport and suitable for touring. The user interface is logically structured, quickly accessible and offers comprehensive control over every parameter.

Full connectivity for live and studio

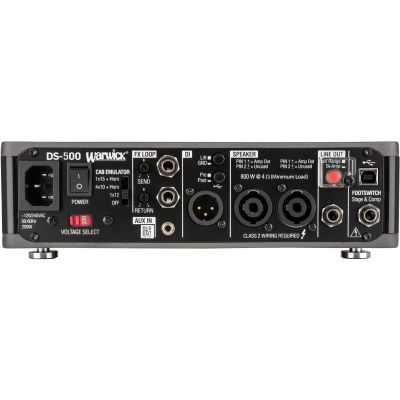

The rear of the amplifier offers everything that modern bassists need: An AUX-IN (3.5 mm stereo) for playing in external sources, a parallel effects loop with SEND and RETURN (6.35 mm mono) and separate level control, a balanced XLR DI OUT with ground lift and pre/post EQ switch and a line out with full range / bi-amp switch. In addition, a USB-B connection is integrated for direct connection to recording software or digital workstations. The Cab Emulator offers three selectable modes plus OFF function for realistic speaker simulation.

Two Speaker Twist sockets allow the connection of suitable speaker cabinets. A footswitch connection allows external switching of channels and compressor. The power switch on the rear panel, the IEC power socket and the voltage selector switch (120/240 VAC) make the device ready for use anywhere in the world - provided the mains voltage complies with the specifications.

Warwick DS 500 - sound control at a professional level

With the Warwick DS 500 Double Stage Bass Amp Head with USB Interface 500 Watt you get a powerful, flexible bass amplifier with extensive features. Two full channels, compressor, USB and Bluetooth, bi-amping, speaker simulation and numerous connection options - all packed into a lightweight, robust housing. Whether for studio recordings, live gigs or daily use in the rehearsal room: the DS 500 is ready for any challenge and more than meets the demands of modern bassists.

Features:

• Two-channel bass amplifier top with USB and Bluetooth interface
• Transistor circuit, Class D power amplifier
• Two-channel design
• Bluetooth and USB connectivity
• tuning function
• speaker simulation
• effects loop, aux in, DI out, bi-amp line out
• 500 W into 4 ohms / 300 W into 8 ohms
• 4-band EQ with presets for the mids
• incl. compressor control
• 2-channel tandem controls on the front for gain, bass, lo mid, hi mid, treble, volume
• 2-channel FREQ selector switch on the front for Lo Mid and Hi Mid
• Channel selector switch on the front
• front-side compressor control for Amount / Level (tandem)
• Compressor switch on the front
• Bluetooth switch on the front
• TUNER switch on the front
• front tuner display for tuning
• front LED CLIP display
• front LED channel indicator
• MUTE switch on the front
• Front headphone output (3.5 mm stereo)
• 2 x front input sockets (6.35 mm)
• Power On / Off switch on the rear
• AUX-IN connection on the rear (3.5 mm stereo)
• rear SEND and RETURN connections for effects loop (6.35 mm, mono) with separate level control
• balanced XLR DI output on the rear with pre/post EQ switch and ground lift switch
• Cab emulator selector switch on the rear (OFF + 3 modes)
• 2 x rear Speaker Twist speaker sockets
• rear line-out connection (6.35 mm, mono) with full range / bi-amp switch
• USB-B interface on the rear
• Rear footswitch socket for channel and compressor switching
• rear mains cable connection (IEC IEC socket)
• rear voltage switch (120/240 VAC)
• Input voltage 120 - 240 VAC / 50-60 Hz / 150 W
• Dimensions (L x W x H) 250 x 270 x 74 mm
• Weight 3.47 kg
• 230 V EU version incl. power cable with EU plug (Warning: The appliance can only be used in countries with 120-230 V mains voltage. Other mains voltages may cause damage to the appliance).

Specs:

• Channels: 2
• Effect Processor: no
• Power: 500 W
• Amplification: Solid State
• Amp Type: Bass Head
• Headphone Out: yes
• digital modelling: no
• Compressor: yes
• Equalizer: yes
• Type: Amps
• Theme: Guitars and Basses
