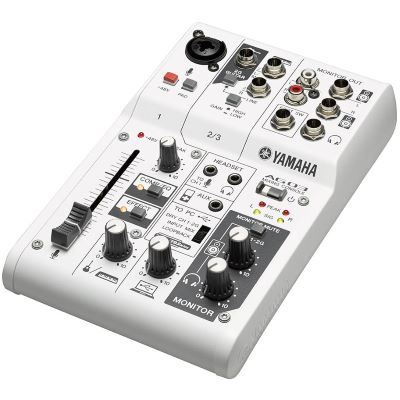

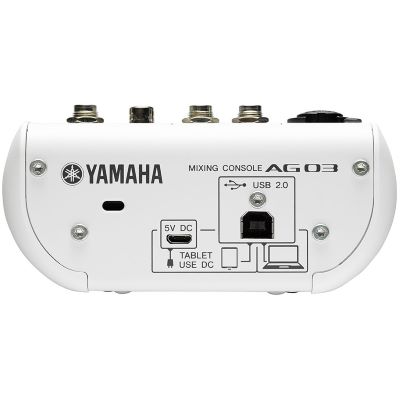

Yamaha AG03 USB 2.0 Kompaktmixer

Models of the AG series are compact multi-purpose mixers with integrated, high-resolution USB audio interface. With an ingenious device combination like this, the creative output of web/ podcasters, gamers, music producers or live musicians can be greatly enhanced.

Features:

• Multi-purpose mixer with 3 channels and integrated USB audio interface
• Flexible LOOPBACK function - perfect for live recording or Internet broadcasts
• High-resolution 2-track playback and recording (192 kHz / 24 bit)
• "D-PRE" microphone preamplifier with low-noise preamplification, low distortion and studio-quality sound
• Simple operation despite "Pro" sounds thanks to 1 TOUCH control of the COMP/EQ and EFFECT processors
• +48V phantom power on input channel 1 for condenser microphones and DI boxes
• High impedance Hi-Z input for guitars on channel 2
• iPad connection (iPad 2 or later) via the "Camera Connection Kit" for Apple's iPad (requires external USB power supply)
• Runs on Macs & PCs with USB bus power
• Robust metal housing
• Cubase-AI license included (software for download)
• Dimensions WxHxD: 129 x 63 x 202 mm
• weight: 0,8kg

Specs:

• Color: White
• Rack Mountable: no
• Line Inputs: 3
• Line Outputs: 1
• Mic Inputs: 1
• Phono Inputs: 0
• Instrument Inputs: 2
• digital Output: USB
• digital Input: none
• Headphone Out: yes
• MIDI Inputs: 0 Ports
• MIDI Outputs: 0 Ports
• Host Port: USB
• Number of headphone outputs: 1
• Type: Mixer
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (770.2 KB)
