Yamaha DTX-Multi 12

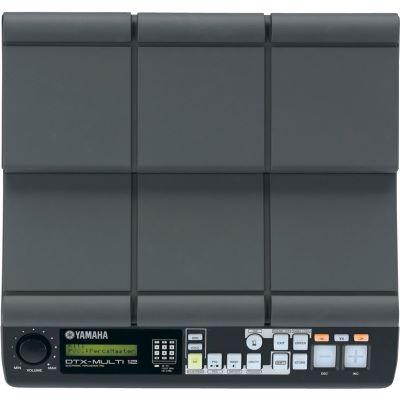

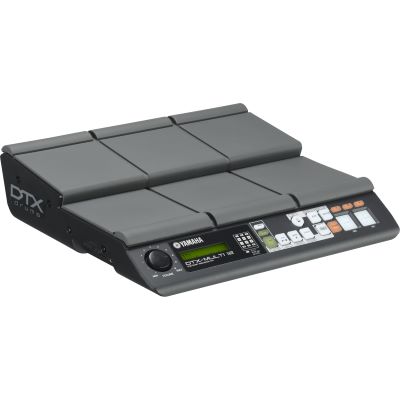

The DTX-MULTI 12 offers twelve striking surfaces (pads) that are easy to distinguish from each other, even on dark stages. You can use it in a variety of situations, whether in combination with an acoustic drum kit or a percussion setup to significantly expand the sound palette, or in conjunction with a kick pad as a mini e-drum kit for ultra-fast set-up and dismantling. The DTX-MULTI 12 also feels at home in studio environments, as it can be easily connected to computers and can therefore provide the best service as a play-in tool.

Features:

• Dimensions: 345 x 96 x 319 mm (WxHxD)
• Weight: 3.3 kg
• Number of pads: 12
• Inputs for external connections: 1x three-zone, 4x mono
• Polyphony: 64 voices max.
• Voices: 1061x drums and percussion, 216x keyboard
• Effects: 42x variation, 6x chorus, 6x reverb, 5-band master EQ
• Drum kits: 50x preset, 200x user-defined
• Wave memory: 100 MB (16 bit linear)
• Note resolution: 480 ppq (parts per quarter note)
• Patterns: Preset patterns: 128 phrases (including three demo patterns), user patterns: 50 phrases
• Sequence formats: Custom format, SMF format 0 (load only)
• Sequence capacity: 152,000 notes
• Recording modes: Realtime, Overdub
• Waves readable quantity: 500
• Waves bit depth: 16 bit
• Wave memory: 64 MB
• Waves max. size: 2 MB mono sample, 4 MB stereo sample
• Sample formats: Custom format, WAV, AIFF
• Display: Backlit LCD with two lines of 16 characters each

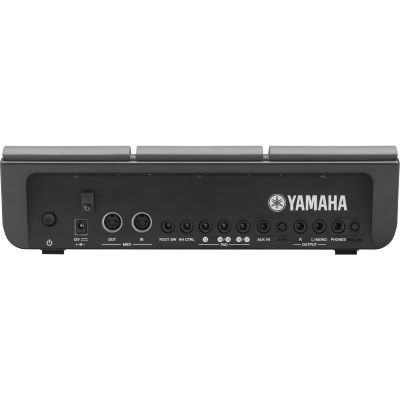

• Connections: Pad 13 (standard stereo jack; L = Trigger, R = Rim Switch); Pad 14/15 and Pad 16/17 (standard stereo jack; L = Trigger, R = Trigger); Hi-Hat Control (standard stereo jack); Footswitch (standard stereo jack), Output L/Mono and R (standard jack); Phones (standard stereo jack); Aux In (standard stereo jack), Midi In/Out; USB to Host; USB to Device; DC In
• Pad functions: Step-by-step selection of drum kits, patterns, tempo; tap tempo; click track on/off; control change event generation
• Click track tempo: 30 to 300 BPM, tap tempo function
• Click track bars: 1/4 - 16/4, 1/8 - 16/8, 1/16 - 16/16
• Click-track note accentuation: accent, quarter note, eighth note, sixteenth note, triplets
• Supplied accessories: mains adapter, operating instructions, data list, DVD-ROM (with software)
• Optional accessories (not included): HH65, KP65, FC4, FC5, FC7

Specs:

• Color: Black
• USB Port: yes
• Headphone Out: yes
• MIDI Inputs: 1 Port
• MIDI Outputs: 1 Port
• Line Outputs: 1
• Type: electronic Drums
• Theme: Drums and Percussion

Instruction manual / Safety instructions:

• Manual (2.26 MB)
