NEW Yamaha MGX16 Digitalmischpult weiß

Yamaha MGX16 digital mixing console white - Compact 16-channel mixing console for professional audio applications in a modern design

Are you looking for a flexible, high-quality digital mixing console that is ideal for live performances as well as in the studio or for streaming - and not only looks modern in terms of technology but also appearance? Then the Yamaha MGX16 digital mixing console white is the perfect solution. With its stylish white finish and a host of professional features, this mixing console will take your productions to a new level - whether in the recording studio, for podcasting or on stage.

Yamaha - A brand that inspires confidence

For many decades, Yamaha has stood for quality, reliability and innovation in the field of professional audio technology. The manufacturer's mixing consoles are valued by sound engineers, musicians and producers worldwide. The Yamaha MGX16 white digital mixing console is part of this success story - developed for the highest demands and equipped with everything you need for demanding audio applications.

Whether on the road, in the studio or at a live show: Yamaha understands the needs of professionals and ambitious users alike - and with the MGX16 offers a powerful tool that offers impressive versatility despite its compact design.

Technical details of the Yamaha MGX16 digital mixing console in white

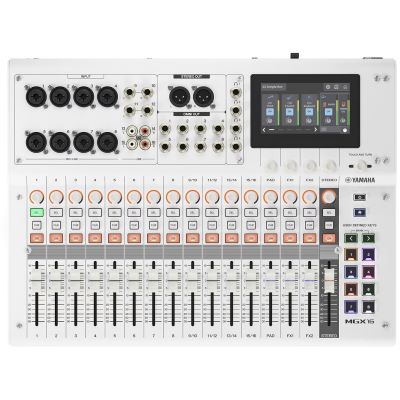

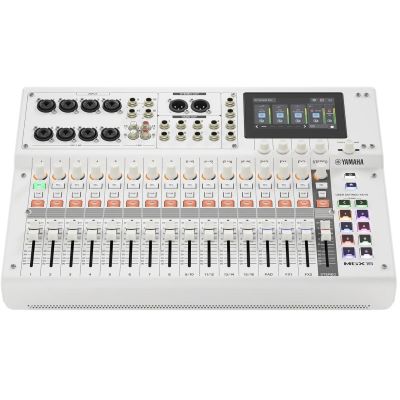

With its 16 input channels, intuitive user interface and sophisticated combination of analog feel and digital control, the Yamaha MGX16 is a true all-rounder. The 15 + 1 faders enable precise control of all signals - without any motorization, but with high reliability. Each channel is equipped with a rotary controller, select button, cue function and on switch, allowing the mixing console to be operated quickly and efficiently.

The heart of the digital control system is a high-resolution 4.3-inch touchscreen which, in conjunction with five multifunctional rotary controls, makes it easy to navigate through menus, effect settings and routing options. There are also eight freely assignable function buttons that can be switched in banks - ideal for creating individual workflows or making frequently used functions immediately available.

In terms of routing, the MGX16 impresses with a professional bus structure: 12 mix buses, 2 FX buses, 1 CUE bus and 1 stereo bus offer sufficient flexibility for complex setups. Thanks to the integrated DSP processor, you benefit from latency-free monitoring - a decisive advantage in live situations or real-time recordings.

The recording function allows 16-track recordings in 24-bit quality at up to 96 kHz, directly via USB or on a MicroSD card. Two tracks are available for playback. Practical: With the integrated Bluetooth 5.0 function (A2DP), you can easily integrate wireless audio sources - for example for playbacks or spontaneous music playback.

Other clever functions such as Auto Gain, Clip Safe, Scene Recall and the choice between a simple or advanced operating mode (Simple/Standard Mode) make the MGX16 interesting for beginners and professionals alike - because this is where user-friendliness meets in-depth functionality.

A white all-rounder - Why it's worth buying the Yamaha MGX16

With the Yamaha MGX16 white digital mixing console, you are not only opting for technical excellence, but also for a visual highlight. The elegant white housing gives the console a modern, stylish touch and makes it an eye-catcher in any studio, showroom or livestream setup.

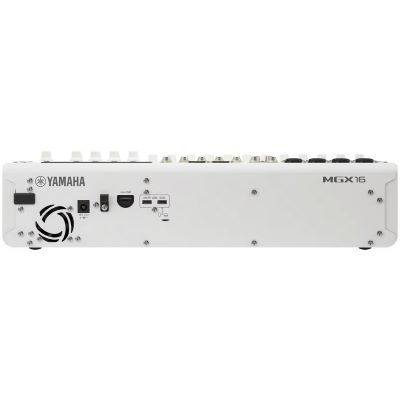

Technically, the MGX16 scores with its versatility. The variety of connections leaves nothing to be desired: 8 XLR/jack combo inputs, 4 line jack inputs, 4 RCA inputs (2x L/R), 2 XLR outputs, 8 jack line outs and 4 headphone outputs enable a wide range of applications - from recording to complex stage sound reinforcement.

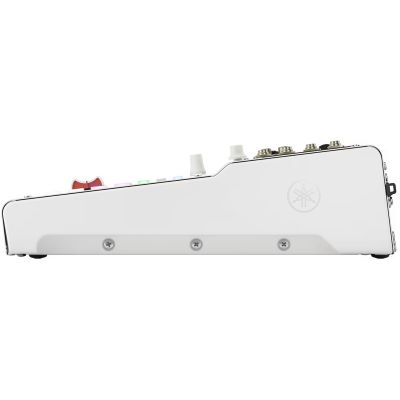

The compact format with dimensions of 419 x 96 x 319 mm and a weight of just 4.6 kg makes the mixing console easy to transport and flexible to use. It fits into mobile racks as well as on the studio table - without compromising on functionality.

The scope of delivery not only includes the necessary 16 V power supply (PA-300), but also a comprehensive software package including Cubase AI, WaveLab Cast, the Basic FX Suite and Steinberg Plus - perfect for starting production straight out of the box.

Features:

• 16-channel digital mixing console in elegant white
• 15 + 1 non-motorized faders for precise control
• 4.3-inch touchscreen with 5 rotary controls for intuitive operation
• Per channel: Rotary controller, select, cue and on buttons
• 8 assignable function buttons, switchable in banks
• 12 mix buses, 2 FX buses, 1 CUE bus, 1 stereo bus
• DSP processor for latency-free real-time monitoring
• Bluetooth 5.0 with A2DP for wireless audio playback
• Integrated USB audio interface and MicroSD card slot
• 16-track recording / 2-track playback in 24-bit / up to 96 kHz
• Functions: Auto Gain, Clip Safe, Scene Recall, Simple/Standard Mode
• 8 mic/line combo inputs (XLR/jack), 4 line jack inputs
• 4 RCA inputs (2x L/R) for additional playback sources
• 2 XLR outputs, 8 jack line outs for flexible signal routing
• 4 headphone outputs (6.3 mm jack)
• 2 USB-C ports for audio and connection to the computer
• Includes power supply unit (PA-300) and software package (Cubase AI, WaveLab Cast, FX Suite)
• Compact design: 419 x 96 x 319 mm, weight: 4.6 kg

Specs:

• Type: Mixer
• Theme: DJ Equipment
