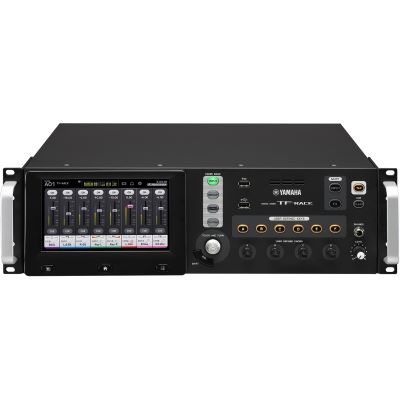

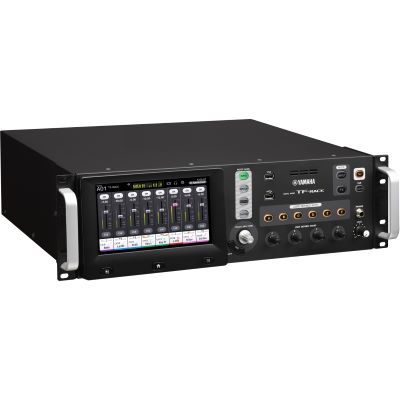

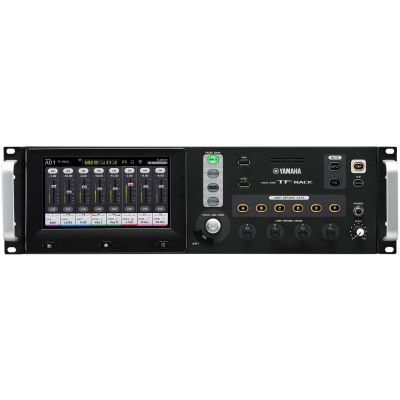

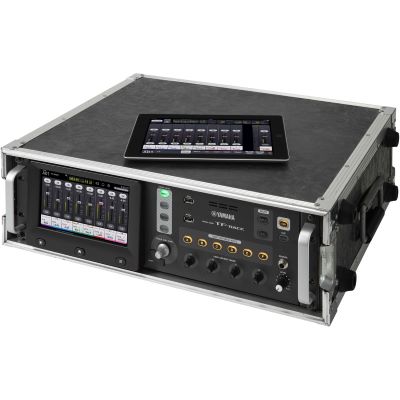

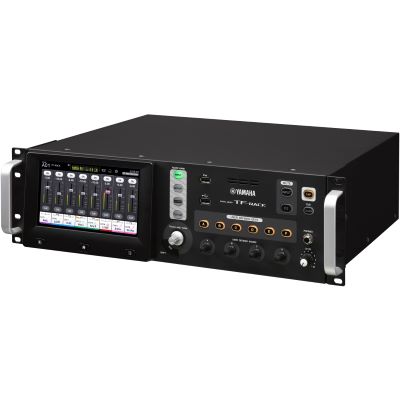

Yamaha TF-RACK

The Yamaha TF Rack is the rack version of the Yamaha TF-Series digital mixing consoles. It offers the same strong performance characteristics and excellent functionality.

Features:

• digital mixing console
• Rack version of the Yamaha TF1
• Input channels: 40 (32x mono, 2x stereo, 2x return)
• Aux buses: 20 (8x mono, 6x stereo)
• Stereo buses: 1
• Sub Buses: 1
• Input channels Functions: 8 DCA groups

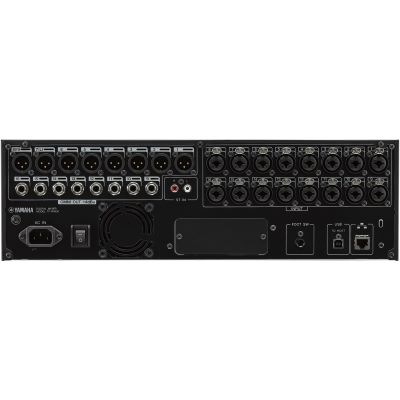

• Input connectors: 16x Mic/Line XLR/jack combo, 1x stereo Line Cinch
• Output connectors: 16 (8x XLR, 8x Sttereoklinke Phone)
• Expansion Slot: 1x for NY64-D
• DSP: 8 effects, 10x GEQ
• Internal sampling rate: 48 Hz
• Signal delay: < 2.6 ms INPUT to OMNI OUT Fs=48 kHz
• Fader resolution: 10-bit, +10 dB to -138 dB, -∞ dB all faders
• Distortion factor: < 0.05% 20 Hz-20 kHz @+4 dBu @ 600 Ω, INPUT to OMNI OUT, Input Gain=Min. (measured at a -18 dB/octave filter@80 kHz)
• Frequency Response: +0.5, -1.5 dB 20 Hz-20 kHz, +4 dBu Output @1kHz, INPUT to OMNI OUT
• Dynamic range: 110 dB typ., DA converter, 108 dB typ., INPUT to OMNI OUT, Input Gain=Min.
• Noise level: -128 dBu typ., Input Gain=Max. (@ A-Weight filter)
• Residual output noise: -85 dBu, ST master off (@ A-Weight filter)
• Crosstalk: -100 dB (@ -30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
• Power supply: 100-240 V 50/60 Hz
• Power consumption: 85 W
• Dimensions (WxHxD): 480 x 132 x 409 mm
• weight: 9,2 kg
• Supplied accessories: Quick guide, power cord, Nuendo Live (DAW software), 4 rubber feet
• Optional accessories (not included): Audio Interface Card NY64-D, Foot Switch FC5
• Operating temperature: 0-40°C
• Storage temperature: -20-60°C
• Recording/Playback PC/Mac (USB 2.0): 34 tracks each
• Recording/Playback USB Speaker: 2 tracks each

Specs:

• Type: Mixer
• Theme: PA and Sonication
