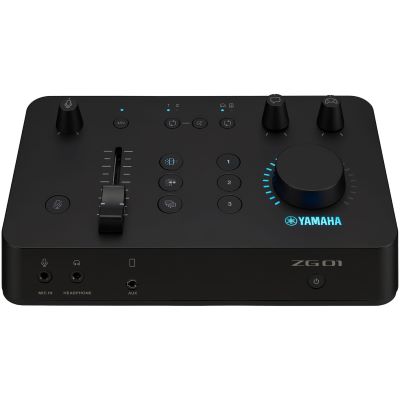

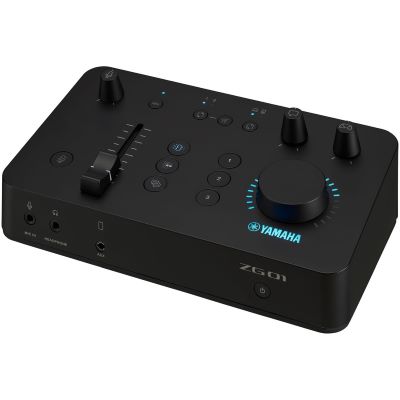

Yamaha ZG01 Game-Streaming Mixer

The ZG01 is Yamaha's first audio mixer designed specifically for game chat and game streaming. It allows you to match the sound of the game, your voice, and the voice of the person you're chatting with to your own playback environment, while providing the ideal audio signal for both your chat partner and the audience you're streaming to. The ZG01 also offers easy audio operation with carefully selected controls, a variety of DSP effects such as a chat voice changer and authentic surround sound processing through stereo headphones, and 2-in/1-out HDMI connectors that also function as HDMI switchers and conversion adapters. The ZG01 thus provides the highest level of immersive gaming sound and a more comfortable gaming environment.

Features:

• Yamaha ZG01 Game Streaming Mixer
• Intuitive volume control for gamers and game streamers
• High-resolution (24-bit, 48 kHz) USB audio recording and playback
• Flexible volume control with dedicated drivers recognized by Windows/Mac as virtual multiple devices
• ZG sound processing (ZG SURROUND, FOCUS MODE/EQ, 3D CHAT SPACE, voice changer, transceiver/radio voice effect.... and more)
• 6 effect buttons (3 for voice chat effects, 3 for game sound effects)

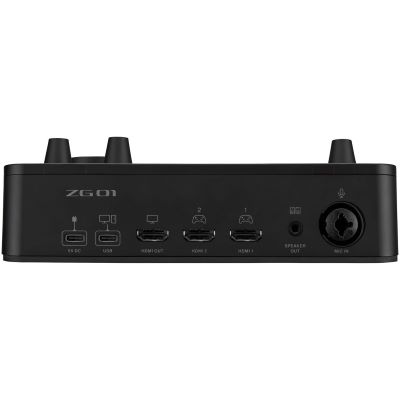

• HDMI connector x 3 (2 inputs/1 output, audio output: 2-channel 24-bit/48 kHz fixed, video signal: pass-through)
• MIC input for condenser microphones with +48 phantom power and mute button
• Independent inputs and outputs for headset/microphone with headphones or desktop speakers
• 4-pin mini input/output (TRRS) for smartphones
• ZG Controller (Windows/Mac) for precise parameter control
• Windows/Mac support through USB-C connector
• iOS and Android support through 4-pin mini input/output (TRRS)
• USB-C power input (5 V DC, 1.5 A)

Specs:

• Color: Black
• Rack Mountable: no
• Line Inputs: 0
• Line Outputs: 1
• Mic Inputs: 1
• Phono Inputs: 0
• Instrument Inputs: 0
• digital Output: none
• digital Input: none
• Headphone Out: yes
• MIDI Inputs: 0 Ports
• MIDI Outputs: 0 Ports
• Host Port: USB
• Number of headphone outputs: 1
• Type: Audio Interface
• Theme: Recording and Studio
