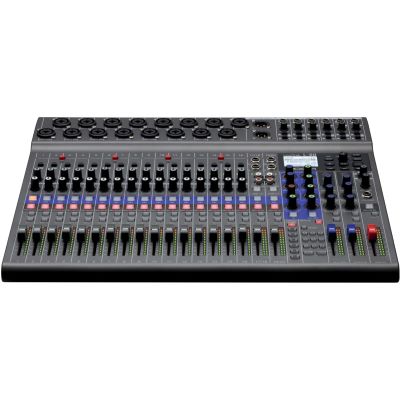

Zoom L-20 LiveTrak

The L-20 is the new flagship of the digital zoom consoles and, compared to the popular L-12, features an extended range of functions suitable for larger setups and arrangements. The mixer offers 20 discrete audio channels with 16 mono mic / line inputs and two stereo inputs and allows the recording of 22 tracks (20 channels plus one stereo mix) of pure audio in resolutions up to 24 bit / 96 kHz to the internal SD card and / or simultaneously via USB to a connected PC / MAC. At -128 dBu ON with +60 dB maximum input gain, the L-20 is equipped with our lowest noise and most advanced preamplifiers. The L-20 also offers six independent monitor outputs for musicians, and each output - switchable between a powerful headphone output and a balanced line out - can have its own custom mix. With two integrated effects units, the L-20 now offers two individual EFX sends per channel. The L-20 also features a wireless mix function to control the L-20 via a free iOS app that controls most of the built-in functions.

Features:

• 20 discrete channels (16 mono plus two stereo channels) with XLR and 6.3 mm jack sockets
• Simultaneous recording of 22 tracks, playback of 20 tracks
• USB audio interface with 22 inputs and four outputs
• Audio recording with up to 24 bit/96 kHz on SD memory media
• 48 V phantom power
• Hi-Z connectors (channels 1-2)
• 26 dB Pad (Channels 3 to 16)
• Integrated compressor control (channels 1 to 16)
• Solo buttons for the individual channels
• Variably controllable high pass filter
• Sum outputs and six configurable monitor outputs
• Separate headphone output for the sound engineer
• Memory function for up to nine mixer scenes
• 20 internal, editable chorus, delay and reverb effects
• Two effect busses
• Integrated talkback microphone
• Class compliance operation (for iOS compatibility)
• Compatible with Remote Mixer App for iPad
• Ability to automatically start and stop recording
• pre-record function
• Import and export of projects via the USB 2.0 interface
• Compatible functions for the ZOOM FS01 foot switch
• Automatic power saving function

Specs:

• Type: Mixer
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (2.96 MB)
