NEW ADAM Audio Sub8 Pro Subwoofer

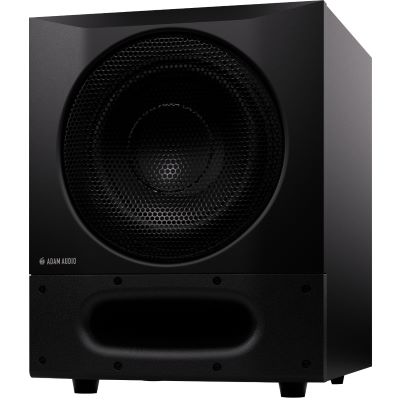

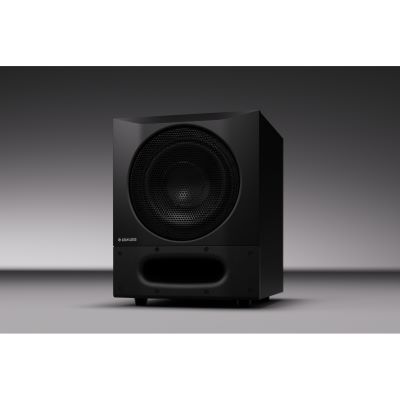

ADAM Audio Sub8 Pro Subwoofer

Are you looking for a compact studio subwoofer that precisely extends your monitoring system’s low-frequency response and can be professionally calibrated? The ADAM Audio Sub8 Pro Subwoofer is a DSP-based, network-ready subwoofer featuring a long-throw 8-inch woofer, an FEA-optimized bass-reflex port, and a powerful Class-D amplifier.

Designed as the foundation for compact monitoring systems, the ADAM Audio Sub8 Pro Subwoofer offers a combination of acoustic precision, digital connectivity, flexible room adaptation, and rugged construction. Using ADAM Control, the subwoofer can be managed, calibrated, and adjusted to match the rest of the monitoring system.

Compact subwoofer for professional monitoring systems

With its long-throw 8-inch woofer and front-firing bass-reflex design, the ADAM Audio Sub8 Pro subwoofer delivers controlled low-frequency reproduction for studio applications. The frequency response ranges from 30 Hz to 228 Hz at -3 dB and from 26 Hz to 300 Hz at -6 dB.

The subwoofer is suitable for classic stereo setups as well as for multichannel and immersive applications. In addition to stereo mode, an LFE mode and a wide mode are available. LFE mode operates at a crossover frequency of 120 Hz and is intended for Dolby Atmos productions, while Wide mode reproduces the subwoofer’s full frequency range.

ADAM Control and Sonarworks Integration

A key feature of the ADAM Audio Sub8 Pro subwoofer is network control via ADAM Control. Through the Ethernet port, tuning, level, delay, phase, and equalizer settings can be conveniently managed.

The software allows you to control multiple A-Series subwoofers and monitors. Additionally, calibration filters from Sonarworks SoundID Reference can be saved and applied directly on the subwoofer. This allows the Sub8 PRO to be precisely tailored to the studio’s acoustic conditions.

High-Performance Woofer and FEA-Optimized Bass-Reflex Enclosure

The ADAM Audio Sub8 Pro subwoofer features a long-throw woofer with a fiber-reinforced paper composite cone. An elastic rubber surround stabilizes the cone during large excursions, while the ferrite magnet system with demodulation rings is designed for clean reproduction.

The bass-reflex port was developed using finite element analysis. Airflow within the port was modeled to precisely tune its curvature, diameter, and length. This reduces turbulence and supports controlled bass reproduction at high sound pressure levels.

Digital and Analog Connectivity

The ADAM Audio Sub8 Pro subwoofer offers digital inputs and outputs in the AES3 format, as well as balanced analog connections via XLR and TRS. The AES3 input and AES3 output support two audio channels with up to 24-bit resolution and sample rates up to 96 kHz.

Thanks to end-to-end digital signal processing, high-resolution audio signals can be transmitted over long distances. Analog XLR and TRS connectors are also available for traditional studio cabling.

DSP, Class-D Power Amplifier, and Protection Circuits

The ADAM Audio Sub8 Pro subwoofer’s powerful Class-D amplifier drives the woofer in a controlled manner across the entire volume range. A DSP platform controls filters, crossover frequencies, equalizer functions, and limiters.

To protect the electronic and mechanical components, independent peak and thermal limiters, overcurrent protection, overheating protection, and undervoltage protection are integrated. This ensures the subwoofer is designed for reliable studio operation.

Robust Enclosure and Protective Grill

The enclosure of the ADAM Audio Sub8 Pro subwoofer is made of film-coated MDF with a painted MDF front panel. The front design features a front-firing, front-ported configuration.

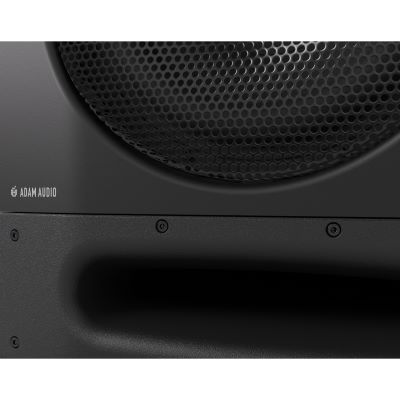

A sturdy metal grille protects the woofer from external influences. This protection is a practical feature, especially when placing the subwoofer under tables or in compact studio setups. The enclosure is designed to minimize unwanted resonances.

Purchase Recommendation

The ADAM Audio Sub8 Pro subwoofer is a great choice for anyone looking to expand a compact monitoring system with precise low-frequency reproduction. In particular, the long-throw 8-inch woofer, the DSP platform, ADAM Control, Sonarworks integration, AES3 connectivity, and the flexible operating modes make this model an attractive option for professional studio applications.

If you’re looking for a subwoofer for stereo, multichannel, or immersive productions and value precise calibration, a wide range of connectivity options, and robust construction, the ADAM Audio Sub8 Pro subwoofer offers a powerful solution for modern monitoring setups.

Features:

• Compact DSP-based studio subwoofer
• Long-throw 8-inch woofer
• FEA-optimized bass-reflex port
• Powerful Class-D amplifier
• Network-ready via Ethernet
• ADAM Control for management, calibration, and firmware updates
• 4-band parametric equalizer via network control
• Delay and level adjustment via ADAM Control
• Compatible with Sonarworks SoundID Reference calibration filters
• Digital AES3 inputs and outputs
• Balanced analog XLR and TRS connectors
• Footswitch connector for bass management bypass
• Stereo mode for classic monitoring applications
• LFE mode for immersive audio productions
• Wide mode for full-range operation of the subwoofer
• Rugged MDF enclosure
• Metal grille to protect the woofer
• Front-firing and front-ported enclosure design
• Product Claim: Complete Your System

Technical Specifications:

• Product Type: Studio Subwoofer
• Model: ADAM Audio Sub8 Pro
• Acoustics:
  • Frequency response at -3 dB: 30–228 Hz
  • Frequency response at -6 dB: 26–300 Hz
  • Maximum sound pressure level in a half-space at 1 m, 50–100 Hz, 3% THD: 105 dB
  • Maximum sound pressure level in a half-space at 1 m, 25–50 Hz, 10% THD: 101 dB RMS / 104 dB peak
  • Maximum peak sound pressure level in a half-space at 1 m with IEC-weighted noise: 112 dB
  • Dolby D.A.R.D.T. maximum peak sound pressure level: 112 dB
  • Crossover frequencies: 70 / 85 / 100 / 115 Hz
  • Self-noise at 10 cm, level +6 dB, Wide mode: < 20 dB A-weighted
• Driver:
  • Diaphragm diameter: 8"
  • Voice coil diameter: 35 mm
  • Woofer material: Paper
• Audio inputs:
  • Analog: 2 x XLR/TRS combo
  • Digital: XLR AES3
  • Analog input impedance: 25 kOhm
  • Digital input impedance: 110 ohms
  • Maximum input level: 19 dBu
• Audio outputs:
  • Analog: 2 x XLR
  • Digital: XLR AES3
• Signal processing:
  • Analog-to-digital converter: 24-bit
  • Internal sample rate: 96 kHz
  • Delay range: 0–10 ms
  • Delay resolution: 32-bit
  • Protection circuits: Peak limiter, thermal limiter, overcurrent protection, overheating protection, and undervoltage protection
• Gain:
  • Amplifier type: PWM
  • Peak power: 325 W at 10% THD, limiter disabled
  • RMS power: 200 W into 3 ohms at 1% THD, limiter disabled

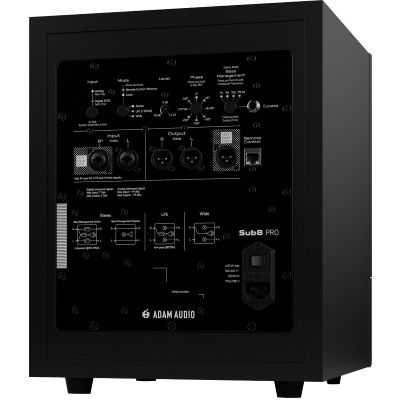

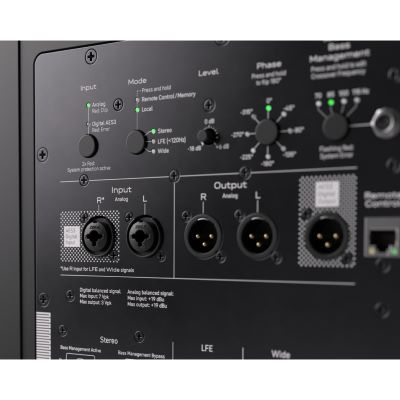

• Controls on the rear panel:
  • Input sensitivity: 0 dBu = 100 dB SPL at 1 m, 0 dB level setting, full space
  • Volume: -18 dB to +6 dB
  • Input selection: analog or digital
  • Phase: 0°, -45°, -90°, -135°, -180°, -225°, -270°, -315°
  • Bass management: 70 / 85 / 100 / 115 Hz
  • Operating modes: network-based, Local / Stereo, LFE <120 Hz, Wide
  • Footswitch: yes, bypass, TS connection, latching
• Network Control:
  • Network connector: RJ45
  • Connection type: Ethernet
  • Communication protocol: AES70 / TCP
  • Software: ADAM Control
  • Advanced room correction: parametric 4-band equalizer, level, and delay
  • Third-party calibration: Import from Sonarworks SoundID Reference
• General Specifications:
  • Enclosure design: front-firing and front-ported
  • Enclosure material: foil-coated MDF and painted MDF front
  • Maximum power consumption: 400 W
  • Standby power consumption: 2.5 W
  • AC input voltage: 100–240 V, 50/60 Hz
  • Rated power: 400 W maximum
  • Maximum inrush current: 6.07 A
  • Operating conditions: -10 °C to +40 °C, <75% relative humidity, non-condensing
• Dimensions and weight:
  • Product dimensions: 385 x 300 x 365 mm
  • Product weight: 15.3 kg

Package Contents:

• 1 x Sub8 PRO
• 1 x power cord
• Quick Start Guide
• Safety Data Sheet
