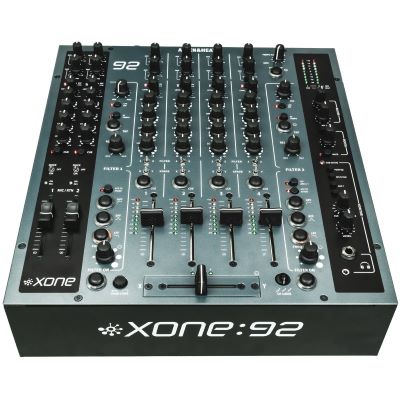

Allen & Heath Xone 92 MK2

Allen & Heath Xone 92 MK2: The benchmark for professional DJ mixers

The Allen & Heath Xone 92 MK2 is a DJ mixer that has been shaping the DJ industry for over two decades. An iconic pro DJ mixer, it combines proven analog technology with modern enhancements that deliver superior sound quality and exceptional versatility. With its six stereo channels, high-quality phono preamps and precise mini innoFADER Pro crossfader, the Xone 92 MK2 is an indispensable tool for DJs seeking maximum creative freedom and fidelity.

Proven analog technology for the highest sound quality

The Xone 92 MK 2 features a fully analog audio path that delivers Allen & Heath's legendary VCF (Voltage Controlled Filter) filters and unparalleled sound quality. The filters offer a wide range of options, including low-pass, high-pass, band-pass, notch and all-pass. These can be switched seamlessly and silently, providing dynamic transitions and precise sound manipulation. Thanks to the improved resonance control and the revised circuitry, the Xone 92 MK2 offers an unmistakable analog sound that is particularly effective for vinyl playback.

Six stereo channels for maximum flexibility

With a total of six usable stereo channels, the Allen & Heath Xone 92 MK2 offers DJs impressive versatility to mix multiple audio sources simultaneously. Each of the four RCA line inputs can be used to connect CD players, computers or other line-level devices. In addition, there are four phono inputs equipped with improved phono preamps to ensure outstanding sound quality for vinyl playback.

Two microphone inputs (XLR and 6.3 mm jack) allow flexible microphone connections, while DJs can make announcements conveniently via the integrated talkover function - the music is automatically lowered when spoken.

Creative freedom through precise sound control

The Xone 92 MK2 offers a 4-band equalizer per channel that enables precise sound processing. This allows DJs to fine-tune the frequencies, which is particularly advantageous when adapting the sound to different rooms or sound systems. The VCA faders (Voltage Controlled Amplifier) ensure smooth volume control and are designed for a long service life.

Custom mini innoFADER Pro crossfader for creative transitions

The Custom mini innoFADER Pro crossfader of the Xone 92 MK2 is specially designed for DJs who appreciate smooth transitions and creative performances. It offers a 3-way adjustable crossfader curve, allowing DJs to set the transition exactly to their preference. The crossfader is extremely robust and durable, making it ideal for intensive use in clubs and live performances.

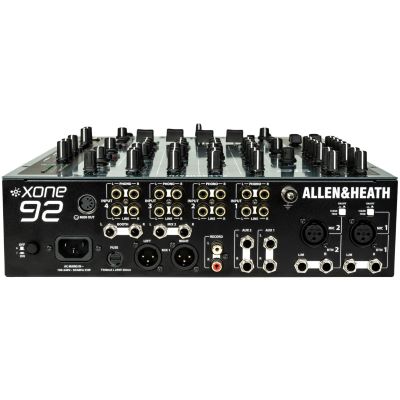

Advanced routing options and connectivity

The Xone 92 MK2 offers a wide range of connection options, making it extremely flexible:

• 2 aux sends - for routing audio signals to external effects or devices
• 2 stereo mix outputs - allow flexible routing of the mix signal to various output devices
• Booth output - for pre-listening to the mix for DJs who want to prepare for their performance
• Record output - ideal for recording the mix
• MIDI DIN output - for synchronization with external MIDI devices
• Headphone outputs - two separate headphone connections (6.3 mm jack), perfect for teamwork between two DJs

These connectivity options make the Xone 92 MK2 an extremely flexible and adaptable mixer that can be seamlessly integrated into any DJ setup. The rackmountable 19-inch form factor also makes it easy to integrate the mixer into existing rack systems.

Robust design for professional use

The Allen & Heath Xone 92 MK2 has been designed with a "bulletproof built" construction that makes the mixer extremely robust and durable. The anthracite-colored housing not only gives the mixer a modern and elegant appearance, but also provides solid protection against wear and tear during intensive touring and club use.

Conclusion: Allen & Heath Xone 92 MK2 - The perfect mixer for demanding DJs

The Allen & Heath Xone 92 MK2 is the epitome of a professional DJ mixer that meets the highest demands in terms of sound quality, flexibility and durability. With its analog signal path, legendary VCF filters and extended connectivity options, it offers DJs maximum creative freedom. Whether in the club, on stage or in the studio, the Xone 92 MK2 is the perfect choice for DJs who want to get the best out of their performance.

Features:

• 6 stereo channels for simultaneous use of multiple audio sources
• 4 RCA line inputs and 4 phono inputs with improved phono preamps
• 2 XLR microphone inputs and 2 stereo 6.3 mm jack microphone inputs
• 2 aux sends for external effects
• 2 stereo mix outputs and 1 booth output
• Record output for recording the mix
• MIDI DIN output for synchronizing external MIDI devices
• 4-band EQ for precise sound processing
• Custom mini innoFADER Pro crossfader with 3-way adjustable crossfilter curve
• Revised VCF filters (low-pass, high-pass, band-pass, notch, all-pass)
• Robust "bulletproof built" construction
• 19 inch rackmountable
• Color: Anthracite
• Weight: 6 kg
• Dimensions: 320 mm (width), 358 mm (depth), 88 mm (height)

Specs:

• Channels: 6
• Rack Mountable: no
• Effect Processor: yes
• Talkover: yes
• USB Port: yes
• Line Inputs: 4
• Mic Inputs: 2
• Phono Inputs: 4
• Crossfader adjustable: yes
• Color: Grey
• Type: DJ Mixer
• Theme: DJ Equipment
