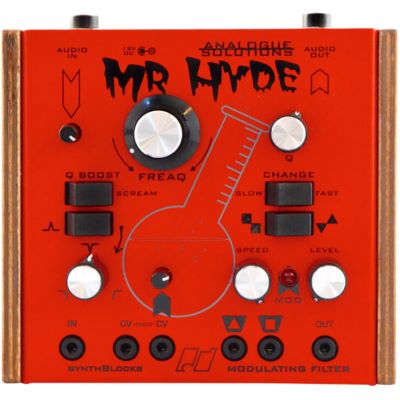

Analogue Solutions Mr. Hyde

Mr. Hyde from Analogue Solutions is the first offshoot of the Synth Blocks series, which consists of extremely compact desktop devices from the traditional British synthesizer manufacturer. The fully analog, handcrafted Filter Effects Box provides subtle to extreme filter and modulation effects, whether simple filter sweep or total FM chaos - Mr. Hyde breathes real analog hardware life into flabby synths and unspectacular DAW tracks. On the back there are 6.35 mm jack sockets for direct connection to a mixer or sound card without the need for an adapter. On the top side there are 3.5 mm mini jack sockets that can be connected to semi-modular synthesizers (e.g. Analogue Solutions Fusebox) or to Eurorack, other modular systems and other Synth Blocks.

Features:

• Analog 12 db filter
• Compact and robust desktop metal housing
• Wood side panels
• Low pass, High pass, Band pass and Notch Filter
• Resonance incl. boost features for self-oscillation
• LFO incl. triangle and rectangle waveform
• Range switch, modulation speed up to the audio range
• Audio and CV inputs and outputs
• Designed, constructed and handcrafted in England
• Power supply included
• Power supply: 12 Volt DC (plus internal)
• Dimensions: 135 x 125 x 55 mm
• Weight: 400 g

Specs:

• Type: Module
• Theme: Recording and Studio
