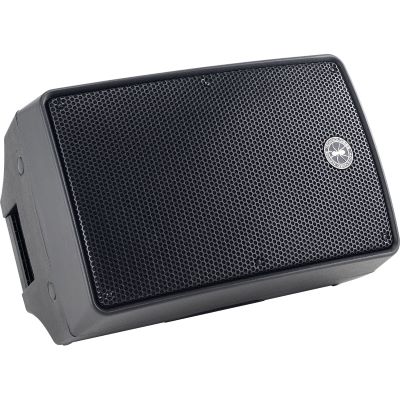

ANT Redfire 12

With an unobtrusive exterior and a comparatively low weight of 17.3kg, the Redfire 12 is perfect for ambitious beginners. It offers a 12 inch woofer and an output of 800 watts.

Features:

• 2 separately adjustable mic/line inputs + aux (2 x XLR/jack)
• 3.5mm mini jack)
• 2-band filter
• Lineout (XLR)
• 12" woofer
• 800 Watt Peak Bi-Amped, active
• Transmission range: 50Hz to 20 kHz
• 122 dB Max SPL
• 385 mm x 597 mm x 366 mm (width, height, depth); 17.3 kg
• 36mm poles with locking screw
• Integrated flying points
• Insensitive plastic housing

Technical data:

• LF 12" Custom Loudspeaker - 1,5" V.C.
• HF 1" compression driver - 1" V.C.
• Frequency range 50 Hz - 20 kHz
• Maximum sound pressure level 122 dB
• Peak power 800 W

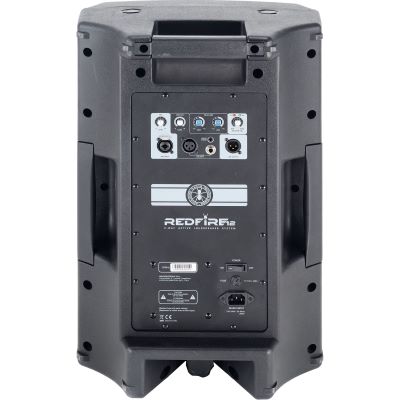

• I/O connector MIC: Combo
• LINE IN: XLR-F + 6,35mm jack (1/4")
• AUX IN: 3,5mm mini stereo jack
• OUTPUT: XLR-M
• MIC LEVEL, LINE/AUX LEVEL, LOW EQ, HIGH EQ, MASTER LEVEL controls
• carrying system 4 x M10 - top/bottom
• Housing Polypropylene
• Dimensions (WxHxD) 385 x 597 x 366 mm
• Weight 17,3 Kg

Specs:

• Power: 800 W
• Housing Material: Plastic
• Pole Mount: yes
• Airworthy: yes
• Woofer: 1 x 12
• Tweeter: 1 x 1
• Number of channels: 2
• Set Offer: no
• Bluetooth: No
• Type: Full Range Speaker
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (2 MB)
