Apart Audio Champ 1 One Product Details
Champ-One realizes what many in the audio industry deemed impossible: an amplifier without cooling fans that is capable of delivering high-end musical sound,
high dynamics, high reliability.

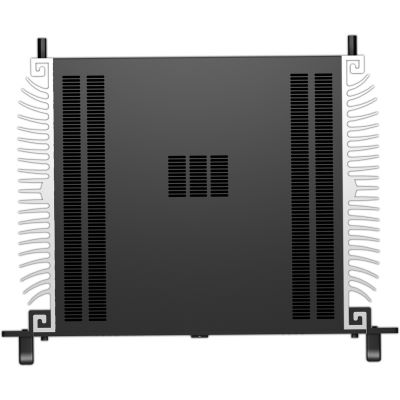

Unique heat sinks
Especially for Champ-One APart introduces the unique, custom-designed side mount heat sinks. In combination with a self-supporting low resonance frame, they
make it possible to create a discrete high power amplifier without a noisy and dust-collecting fan inside the enclosure.
This means: less maintenance, no annual fan or dust filter exchange procedure, no more amplifier cleanout, and no more unwanted noise from cooling fans.
Champ-One relies on convection cooling only, a unique feature in its output power class!
APC power management circuitry gets the best out of an amplifier
APC power management circuitry has been designed especially for Champ-One. It is one of the most intelligent amplifier protection circuits ever designed,
simply because it does the job without interfering with the typical dynamic character of music.
APC allows the user to preset the power potential of the amplifier, while maintaining high power reserves and thus producing high, clean power. It constantly
analyses incoming music signals and keeps dynamics alive. An additional ultra fast peak limiter avoids amplifier clipping. With APC, your system is always in
control, including your speakers.
All the components in Champ-One are audiophile grade quality. Thanks to the tube emulation circuitry, the unit produces an exceptionally warm sound, which
considerably reduces listeners' fatigue.
The striking design and technical innovations of the Champ-One are setting new industry standards....whether it is for AV, studio, gigs, home or catering
applications: experience the pure musical power of Champ-One!
Features:
- Fanless 2 x 600W Power Amplifier
- high efficiency > 70%
- APC power management
- Sound selection: Solid or Tube
- Extensive Protection Circuit
- Bridge- or Stereo Mode
- User protected power and sound settings
- Color: black
- Dynamic program power: Bridge-mono (8 ohm) 1100 W, 2 channel (4 ohm) 2 x 600 W
- Input impedance: 10 kOhm (RCA), 20 kOhm (XLR)
- Frequency response: 10 Hz - 50 kHz, (0, -0.5 dB)
- Distrotion: < 0.05 %
- Signal to Noise Ratio: > 100 dBA
- Gain: 33 dB (39 dB bridged)
- Protection circuits: DC, HF, clip, overcurrent, short-circuit, 2 step Temperature protection
- Cooling: convectional, no fan
- Power consumption: 18VA idle, 1KVA full program, 1.5KVA peak
- Mains power requirements: 230VAC, 50Hz
- Dimensions (W x H x D): 48.3 x 8.8 x 38 cm
- Weight: 13 kg
