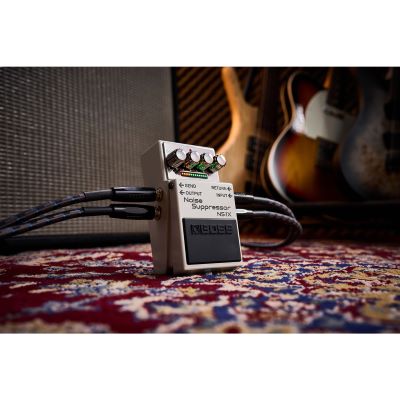

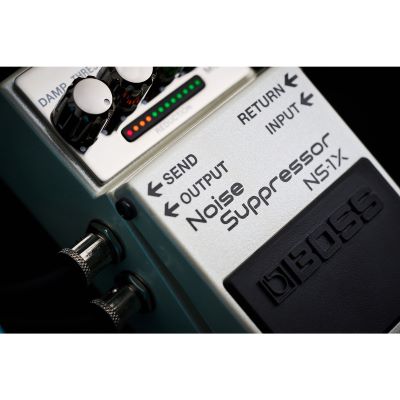

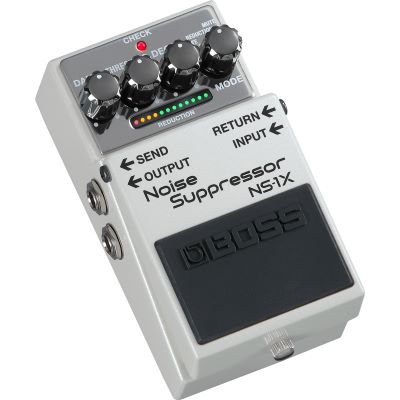

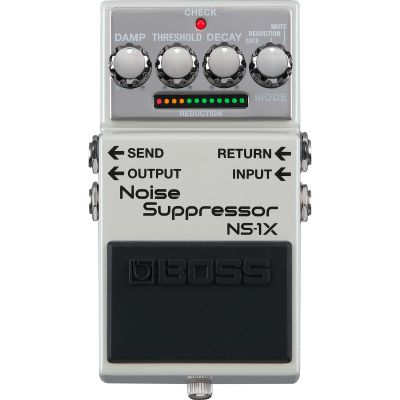

Boss NS-1X Noise Suppressor

Based on advanced BOSS MDP technology, the NS-1X reduces noise and hiss without compromising the natural sound and feel of your guitar or bass. While the Reduction mode ensures a quiet rig in a wide variety of setups, the Gate mode impresses with its ultra-fast performance for precise high-gain riffs that sound sharp and concise at all times. The NS-1X is an indispensable, versatile and intuitive tool for eliminating distracting noise when practicing, performing and recording.

Especially in high-gain setups, noise and background hiss can be a problem when using guitars and basses. The MDP approach in the NS-1X works quickly and transparently in any application, eliminating unnatural attack and decay artifacts that can occur with conventional noise reduction systems. To do this, high-speed digital technology analyzes the input signal in real time on multiple levels, enabling extremely precise signal processing that provides just the right amount of noise reduction for any playing style or venue.

Features:

• Next-generation noise suppressor and gate for guitar, bass and other electric musical instruments
• Intelligent BOSS MDP technology eliminates noise and hiss without compromising feel and response
• Intuitive operation with controls for Threshold, Decay, and Damp
• Reduction mode for general noise suppression
• Gate mode with ultra-fast response time for tapping, sweet picking and heavy rhythms with high-gain sounds
• Mute mode for muting the instrument signal when the pedal switch is activated (when the switch is deactivated, the pedal operates in reduction or gate mode, depending on the user's choice)

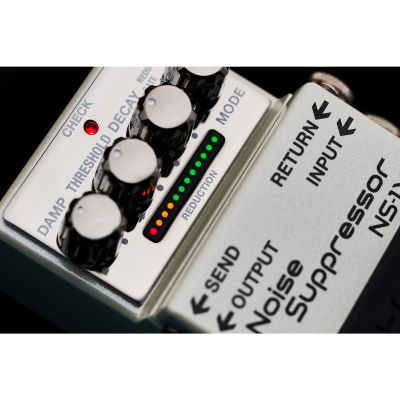

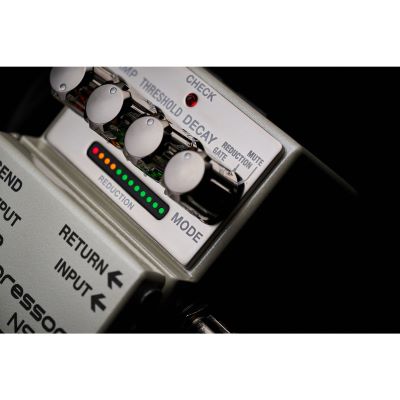

• Reduction display dynamically visualizes the current level of noise reduction
• Send/return loop for optimized noise suppression when using overdrive, distortion and other pedals that produce noise

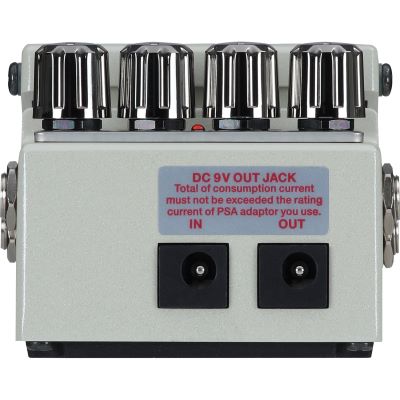

• DC Out for powering additional pedals (requires optional PSA adapter and PCS-20A parallel cable)

Technical data:

• Sampling frequency: 48 kHz
• AD conversion: 24 bit + AF process
• DA conversion: 32 bit
• Processing: 32-bit floating point
• Modes: 3 modes (TOR, REDUCTION, MUTE)
• Nominal input level: INPUT, RETURN: -20 dBu
• Maximum input level: INPUT, RETURN: +7 dBu
• Input impedance: INPUT, RETURN: 1 M ohm
• Nominal output level: OUTPUT, SEND: -20 dBu
• Maximum output level: OUTPUT, SEND: +7 dBu
• Output impedance: OUTPUT, SEND: 1 k ohm
• Recommended load impedance: OUTPUT, SEND: 10 kOhm or higher
• Bypass: Buffered bypass
• Controls: MODE knob, DECAY knob, THRESHOLD knob, DAMP knob, pedal switch
• Display: CHECK indicator (also serves as battery check indicator), REDUCTION indicator
• Connections: INPUT socket: 1/4-inch jack plug; RETURN socket: 1/4-inch jack plug, OUTPUT socket: 1/4-inch jack plug, SEND socket: 1/4-inch jack plug, DC IN socket, DC OUT socket
• Power supply: Alkaline battery (9 V, 6LR61), mains adapter (PSA series: available separately)
• Current consumption: 60 mA
• Expected battery life in continuous operation: Alkaline: approx. 6.5 hours
• Accessories: Instruction sheet, dry cell battery (9 V, 6LR61)
• Width: 73 mm
• Depth: 129 mm
• Height: 59 mm
• Weight (including battery): 460 g

Specs:

• Color: Silver
• Effect Type: Misc.
• Type: digital Effects Processor
• Theme: Guitars and Basses
