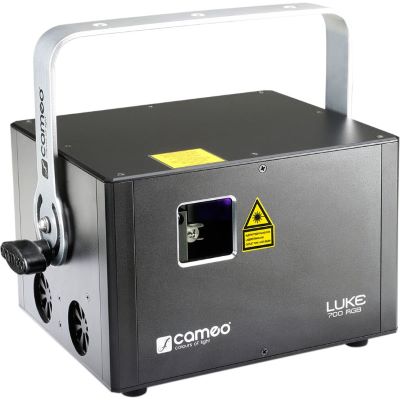

Cameo LUKE 700 RGB Show Laser

The LUKE 700 RGB has diode and DPSS lasers for the colours red, green and blue and a power of 700 mW. The beam diameter is 3 mm with a maximum divergence of only 2 mrad.

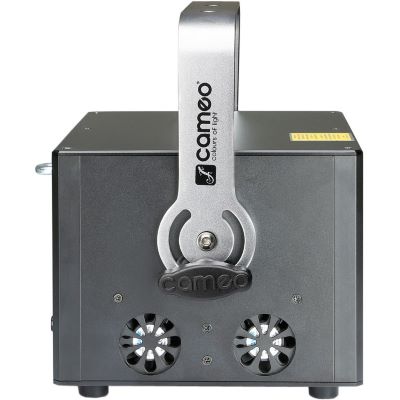

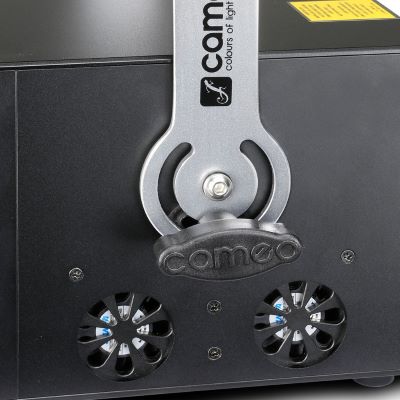

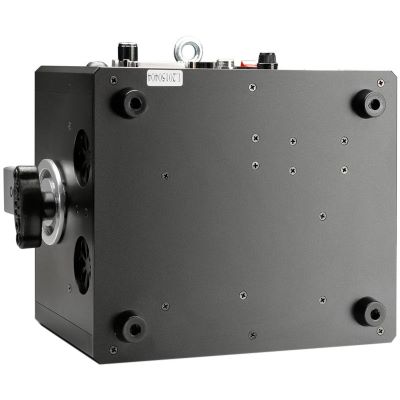

The professional show lasers of the Luke series are designed with two layers for optimum performance and separate the power supply and fan from the optical components. They are equipped with high speed 30 Kpps Galvos 8° ILDA, a 60° scan area and 128 presets, which produce effective graphic projections with crystal clear, razor sharp beams. The Luke lasers feature an ILDA interface with 25-pin D-Sub connectors for computer control, 3-pin inputs and outputs for DMX control in 4-channel and 11-channel modes, and a sensitivity-adjustable microphone for sound control. They can also be operated as master, slave and standalone. The robust and lightweight aluminium housing is equipped with a key switch to prevent unauthorised use, a bright display with four buttons for manual operation and Neutrik powerCON mains connections. A low-noise fan ensures low operating temperatures, and the Luke Series lasers have a Scan Fail Safety system to protect the audience.

Note: The Luke lasers and Ioda Series models are equipped with identical presets and are compatible for master and slave operation. Through switchable inversion, the master and slave arrangement is able to generate even more impressive laser shows.

Features:

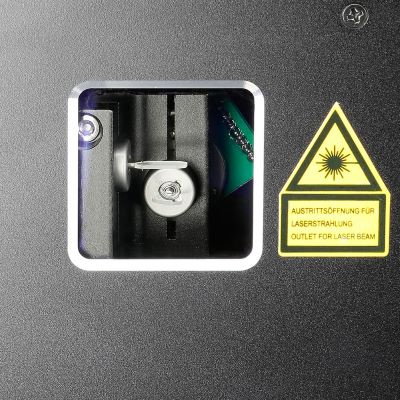

ATTENTION: We would like to point out that this device contains a class 4 laser (according to the classification according to DIN EN 60825-1:2015-07).

Specs:

• Power: 0.7 W
• Type: Laser
• Theme: Light and Show

Instruction manual / Safety instructions:

• Manual (1.27 MB)
