Cordial D-Sub-Tascam / 8 x XLR male CFD 1,5 DMT

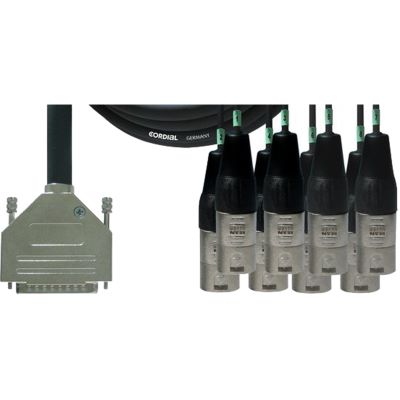

The Cordial D-Sub-Tascam / 8 x XLR male CFD 1.5 DMT has a length of 1.5 meters as well as a D-Sub and 8 XLR male 3-pin connector. The CFD DMT is a multicore cable for professional stage and studio applications. The assignment corresponds to the analog Tascam DSUB 25 specification (DA88). From a 25-pin D-Sub male to eight XLR male connectors (3-pin). The metal connectors are nickel plated.

Features:

• Cable: CMD 8
• Occupancy: DMT
• Plug brand: REAN SILVER
• Connector: 1 D-Sub & 8 XLR male 3-pin

Technical Specificatons:

• length: 1,5 m
• Conductor cross section (mm²): 0.14 mm²
• AWG: AWG 26
• Conductor structure (mm): 18 x 0.10
• Material: CU tinned
• Conductor resistance (Ohm/km): 130 Ohm/km
• Capacity conductor conductor (pF/m): 52 pF/m

Specs:

• Port A: Sub-D 25 male
• Port B: 8 x XLR male
• Usage: Multicore cable
• Cable Length: 1.5 m
• Inputs: 8
• Type: Multi Core
• Theme: Recording and Studio
