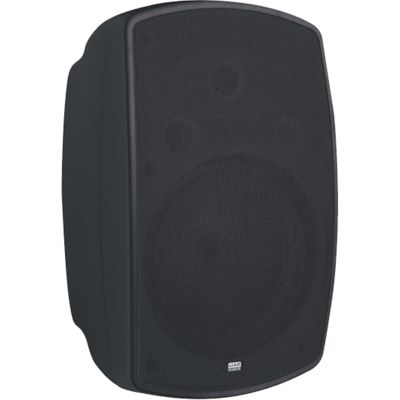

DAP Audio EVO 8 BK

The DAP EVO speaker series is designed for fixed audio installations and a wide range of applications. The EVO series combines an elegant design with high-fidelity audio in a variety of cabinet sizes. This series of 2-way cabinets are available as low impedance loudspeakers or with line transformers and are suitable for both small as well as large installations. 100V models feature an easy-access power tap switch that allows you to select the desired power (including the low-impedance option) before and after installation. The included multi-angled bracket provides quick and easy installation and allows for optimal alignment for both horizontal and vertical mounting. The DAP Evo series is the perfect solution for installations in environments such as restaurants, retail stores, pubs or even clubs, thanks to its powerful components and extremely wide coverage.

The DAP Audio EVO Series loudspeaker range is specifically designed for fixed audio installations and a wide range of applications. The EVO series combines an elegant design with high-fidelity audio in a variety of enclosure sizes. These 2-way loudspeakers are available in low impedance or 100V line transformer versions, to meet the needs of both small and larger installations. The bracket, which is included and suitable for multiple angles, not only enables not only quick and easy installation, but also optimal alignment for horizontal and vertical mounting. The DAP Audio EVO series, thanks to its powerful components and extremely wide coverage, the DAP Audio EVO Series is a perfect solution for environments such as restaurants, pubs and stores, and is even suitable for clubs. Loudspeakers of the EVO series are available as standard models in various power levels and as 100V series.

Features:

• IP54 protection rating

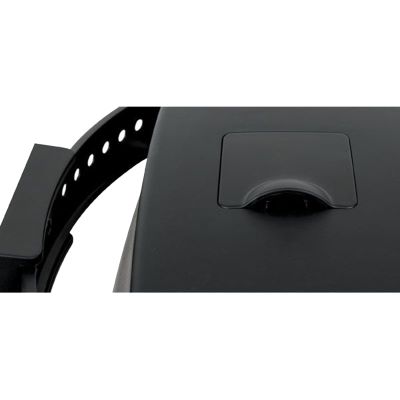

• Brackets with multiple angles
• Quick and easy installation
• Compatible with high input power

Technical data:

• Passive input connector: terminal
• Input power peak: 160 W
• Input power RMS: 80 W
• Mono input impedance: 8 Ω
• Dispersion angle Vertical: 90 °
• Dispersion angle Horizontal: 100 °
• Compression driver Magnet Type: Neodymium
• Compression driver voice coil: 1 "
• Compression driver diameter: 1 "
• Woofer Magnet Type: Ferrite
• Woofer Voice Coil: 1.5 "
• Woofer Diameter: 8 "
• Frequency Response Maximum: 20,000 Hz
• frequency response minimum: 48 Hz
• max. sound pressure 1 meter: 115 dB
• speaker input sensitivity: 90 dB
• Speaker system: 2-Way
• IP protection class: IP54(temporary outdoor use)
• Color: black
• Housing material: plastic
• Weight: 5.1 kg
• Width in mm: 250 mm
• Height (mm): 385 mm
• Length (mm): 227 mm
• Mounting options: Bracket
• Mounting positions: Horizontal, Vertical
• Reference Standard: CE
• Mounting included: Bracket

Specs:

• Color: Black
• Set Offer: no
• Power: 160 W
• 100V - Technique: no
• Woofer: 1 x 8
• Tweeter: 1 x 1,5
• Type: Wall-mounted Loudspeaker
• Theme: PA and Sonication
