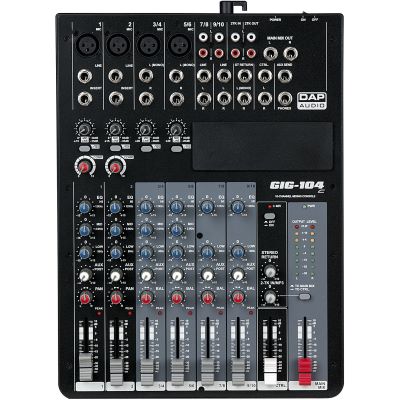

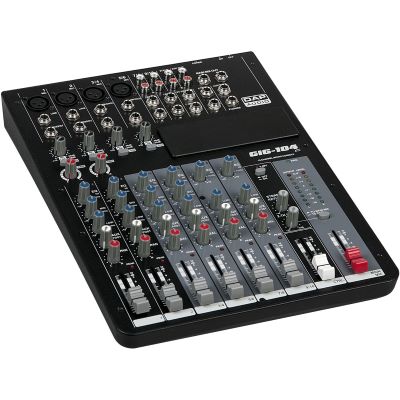

DAP Audio GIG-104C Product Details
The GIG-104 C Mixing Console is packed with features that cannot be found in other consoles of it's size: 4 mono (provided with ultra low noise microphone pre amplifiers and Phantom Power at +48 Volt ) and 4 stereo input channels. Each of them are provided with a 3-band equalizer for HI, MID and LOW controls, as well as 1 auxiliary control, highly accurate 8-segment bar graph meters and 2-track inputs assignable to main mix, control room/phones or group outputs.
Features:
- 10 Channel live mixer incl. dynamics
- Ultra-low noise discrete MIC Preamps with +48V Phantom Power
- Compressors control on first MIC channels
- 3-band EQ and Peak LEDs on each MIC channels
- 2-band EQ and Peak LEDs on Stereo channels
- 1 AUX Sends POST Fader
- Optional expandable with USB or Bluetooth player
Mono Channels:
- Mic Input: XLR balanced
- Line input: 1/4– TRS balanced
- Freq response: 10Hz ~ 55kHz, +/- 3dB
- Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
- Gain range: 50dB
- Input sensitivity: -35dBu ~ +15dBu
- LOW Cut: 75Hz
- SNR <-100dBr
- Phantom Power: +48V switchable
Stereo Channels:
- Mic Input: XLR balanced
- Line input: 1/4– TRS/RCA unbalanced
- Freq response: 10Hz ~ 55kHz, +/- 3dB
- Distortion (THD=N): <0,03% @ 0dB, 22Hz ~ 22kHz
- Gain range: 50dB
- Input sensitivity: -20dBu ~ +20dBu
- LOW Cut: 75Hz
- SNR <-100dBr
- Phantom Power: +48V switchable
Channels EQ:
- High: +/- 15dB @ 12kHz
- Mid: +/- 15dB @ 2,5kHz
- Low: +/- 15dB @ 80Hz
Impedances:
- Microphone input: 1,8K Ohm
- Other inputs: >10K Ohm
- Tape output: 1K Ohm
- All other outputs: 120 Ohm
Miscellaneous technical specifications:
- Power supply: AC 100- 240V 50Hz/60Hz
- Power consumption: 40 Watt
- Measurements: 343 x 254 x 63mm
- Weight: 2,48 kg
Specs:
- Type: Mixer
- Theme: PA and Sonication
