NEW DAP AUDIO PA-5500SA

DAP AUDIO PA-5500SA - 1U Internet radio & MP3 player with integrated 2x 250 W amplifier

The DAP AUDIO PA-5500SA is a compact and powerful 19-inch 1U device that combines Internet radio, multimedia player and integrated Class D amplifier in one multifunctional system. With a powerful output power of 2 x 250 W at 8 ohms or 1 x 250 W in 100V bridge mode, it offers the perfect solution for fixed installations in hotels, restaurants, conference centers or event rooms. The device combines modern streaming technology, flexible connection options and intuitive operation in a single, rack-mountable system.

With integrated support for LAN, Wi-Fi, Bluetooth 5.0 (including aptX HD), USB playback and Airplay as well as Android casting, the PA-5500SA is a true all-rounder in modern audio playback. It supports a variety of audio formats such as AAC, AAC+, ALAC, APE, FLAC, MP3 and WAV, ensuring maximum compatibility with a wide range of sources.

DAP AUDIO - Professional audio technology for installations and events

As part of the renowned Highlite International Group, DAP AUDIO offers practical solutions for professional audio applications. Whether in live operation or in fixed installations: products such as the PA-5500SA stand for user-friendliness, versatility and reliability in professional use. With a focus on installation environments, the PA-5500SA combines functionality and modern design in a compact housing.

Technical details of the DAP AUDIO PA-5500SA

The integrated Class D amplifier delivers an RMS output of 2 x 240 W into 8 ohms or 1 x 240 W bridged at 100 V - ideal for 100 V sound reinforcement systems or powerful zone solutions. The peak output is 460 W. The amplifier supports both stereo and bridge mode and offers flexible output options via XLR, Phoenix and screw terminal connections.

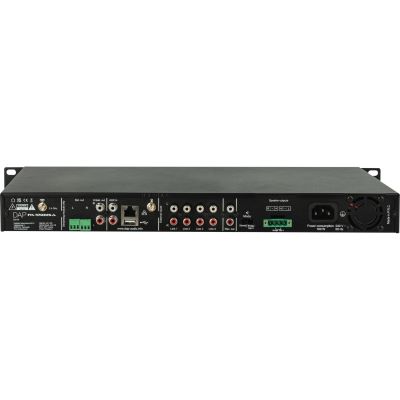

There are five line inputs (RCA) on the rear, while the front has a TRS/XLR combo socket for microphone or line signals and a 3.5 mm TRS aux input. The integrated USB interface supports storage media up to 128 GB (FAT16/FAT32/exFAT) and reads modern formats such as FLAC, APE and ALAC - also ideal for audiophile requirements.

Wireless connectivity is provided via Wi-Fi or LAN - including support for Spotify, Tidal, TuneIn, Amazon Music and more via the 4stream app. Alternatively, the device can also be used as a hotspot to connect devices directly. Bluetooth 5.0 with aptX HD ensures wireless audio quality at a high level with a range of up to 15 meters.

User-friendly operation with display, app & remote control

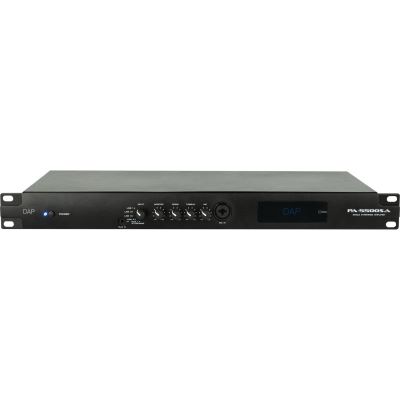

Operation is intuitive via the front panel with buttons for mode selection, volume, bass, treble and microphone level as well as an easy-to-read 1.4" OLED display. The PA-5500SA can also be conveniently controlled using the supplied IR remote control or via the app. The app enables access to a wide range of streaming services and the storage of six favorites (e.g. Spotify playlists or TuneIn radio stations), which can be called up directly.

Thanks to the sophisticated protection mechanisms such as clip limitation, overheating, overvoltage and short-circuit protection as well as soft start technology, operation is safe and reliable at all times. The robust steel housing with powder coating meets the requirements for professional installation (IP20, for indoor use only).

Why the DAP PA-5500SA is the perfect solution for audio installations

The DAP AUDIO PA-5500SA is more than just an amplifier - it is a complete audio center for installations, combining classic audio sources and modern streaming technology in one device. Thanks to integrated Internet radio, Bluetooth, USB playback and network streaming, music can be conveniently played from almost any source - without the need for an external playback device.

The simple operation, paired with advanced technology such as Bluetooth aptX HD and support for high-quality audio formats, make the PA-5500SA a sophisticated solution for professional audio applications. Whether for background music in a hotel, announcements in a conference room or streaming in a café - this 1U rack unit adapts flexibly to a wide range of requirements.

Features:

• 1U 19" Internet radio & MP3 player with integrated Class D amplifier
• Amplifier power: 2 x 240 W at 8 Ω, 1 x 240 W at 100 V (bridge mode)
• Peak power: 460 W
• Supports: AAC, AAC+, ALAC, APE, FLAC, MP3, WAV
• Wi-Fi & LAN for Airplay and Android casting
• USB-A port (max. 128 GB, FAT16/32/exFAT)
• Bluetooth 5.0 with aptX HD, range up to 15 m
• Aux and mic/line input on the front (TRS/XLR combo)
• 5 line inputs (RCA), 2 aux-ins (RCA & 3.5 mm jack)
• Outputs: XLR, Phoenix, terminal point
• OLED display (1.4") for displaying tracks, sources and settings
• App control via 4stream (incl. Spotify, Tidal, Amazon Music, TuneIn)
• 6 storable presets for radio stations or playlists
• Remote control included (battery not included)
• Safety functions: Soft start, limiter, overheating protection, short-circuit protection
• Dimensions: 483 x 210 x 44 mm (W x D x H)
• Weight: 2.5 kg
• Power supply: 220-240 V AC, 50 Hz

Specs:

• Color: Black
• Type: Amps
• Theme: PA and Sonication
