DAP MP-300SBU Professional USB/SD/BT Media Player

DAP MP-300SBU Professional USB/SD/BT Media Player - Versatile 1U Audio Player

The DAP MP-300SBU is a professional USB, SD card and Bluetooth audio player specially designed for installation in a 19-inch rack. With a wide range of playback functions, extensive connectivity options and user-friendly operation, this media player is ideal for restaurants, cafés, bars and fitness and aerobics studios. With pitch and tempo control and support for popular audio formats, the MP-300SBU offers a reliable and flexible solution for background music playback and more.

Versatile media playback

The DAP MP-300SBU supports both USB devices and SD(HC) cards with a maximum storage capacity of 128 GB and offers broad compatibility with FLAC, MP3 and WAV file formats. With a sampling rate of up to 48 kHz, it delivers outstanding audio quality. In addition, the player features Bluetooth 5.3 with A2DP profile, which enables wireless connection to compatible devices and offers a range of up to 20 meters. These versatile inputs allow content from a variety of sources to be played seamlessly.

Advanced control functions

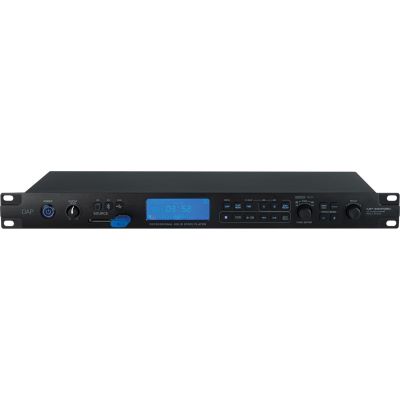

Intuitive operation is made possible by a 3.2-inch LCD display and convenient control buttons on the front panel. Playback functions include play, pause, stop, skip (forward/backward), repeat and folder navigation. A special feature is the ability to queue the next track for playback, ensuring your playlist runs smoothly.

The integrated pitch and tempo function makes the MP-300SBU ideal for applications such as aerobics or fitness where the music speed needs to be adjusted. These functions provide additional versatility and adapt the sound to the requirements of any environment.

Professional connections and sound quality

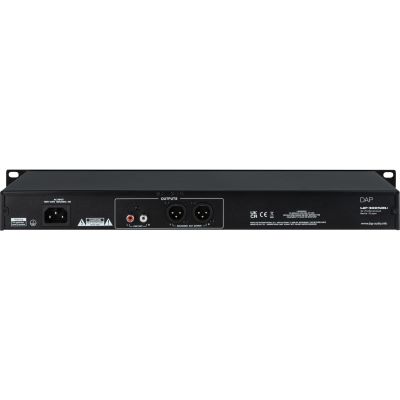

The media player has numerous connection options for maximum flexibility. Balanced XLR outputs and an RCA line output are located on the rear, while a volume control on the front allows for easy adjustment. The MP-300SBU offers an excellent frequency response from 20 Hz to 20,000 Hz, a signal-to-noise ratio of over 70 dB and a THD (Total Harmonic Distortion) of less than 0.005 %. These technical features ensure clear and precise audio reproduction that meets even the highest demands.

Robust design for easy installation

The MP-300SBU was developed for mounting in a 19-inch rack and requires only 1 height unit (1U). With its compact dimensions of 482 x 163 x 44.7 mm (W x D x H) and a weight of just 1.6 kg, it is light and easy to install. The robust steel housing ensures a long service life, while the IP20 protection class allows it to be used indoors.

Efficient power supply and reliability

The media player is powered by a universal power supply (100-240 V AC, 50/60 Hz) and has a low power consumption of just 6 watts. This efficiency makes it ideal for continuous use in professional environments. LED indicators on the front panel provide clear feedback on the operating status and the device is designed for an operating temperature between -20 °C and 50 °C.

Conclusion: DAP MP-300SBU - The perfect choice for professional audio applications

The DAP MP-300SBU Professional Media Player combines versatility, ease of use and a compact design. With its comprehensive playback functions, high quality sound and versatile connectivity options, it is an ideal solution for professional applications in hospitality, fitness studios and other venues. Thanks to its robust construction and elegant design, it is a reliable addition to any audio setup.

Features:

• 1U 19-inch rackmount media player
• Supports USB (2.0), SD(HC) cards and Bluetooth 5.3
• Compatible audio formats: FLAC, MP3, WAV
• Sampling rate up to 48 kHz
• Pitch and tempo function for flexible applications
• RCA and balanced XLR outputs
• Bluetooth audio profile: A2DP, range: up to 20 m
• Power supply: 100-240 V AC, 50/60 Hz
• Low power consumption: 6 W
• Dimensions (W x D x H): 482 x 163 x 44.7 mm
• Weight: 1.6 kg
• Robust steel housing, color: black
• LCD display (3.2 inch) for easy operation
• IP20 protection class - only suitable for indoor use

Specs:

• Color: Black
• Type: Media Player
• Theme: DJ Equipment
