Monacor DMP-130MIXBT

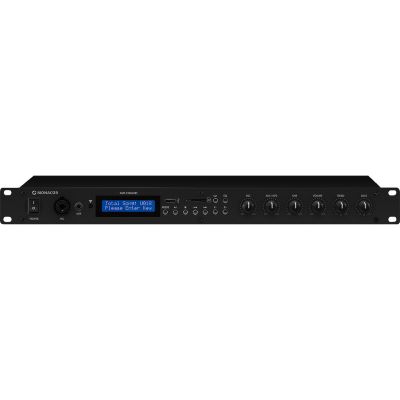

Monacor DMP-130MIXBT MP3 player and microphone line mixer

The Monacor DMP-130MIXBT combines an MP3 player with a microphone line mixer, providing a versatile solution for events, presentations and audio installations. With the ability to mix three audio signal sources, this device is ideal for professional applications where flexibility and ease of use are required. The integrated MP3 player supports SD cards, USB storage media and a Bluetooth connection, allowing a wide range of media sources to be used.

Versatile media support

The Monacor DMP-130MIXBT offers comprehensive support for various media formats and sources. USB storage media and SD/MMC cards (up to 64 GB) can be connected directly, and the Bluetooth receiver enables wireless connection to smartphones, tablets or computers. The MP3 player supports formats such as MP3, WMA, WAV and FLAC and offers practical functions such as auto-play, single-play and a repeat function. Directory support and an alphanumeric display make it easy to navigate through tracks and folders.

Integrated mixing and control options

The DMP-130MIXBT has three input channels that can be individually adjusted with level controls. This includes a microphone input (6.3 mm/XLR combo), an aux/MP3 input and a line input (RCA L/R). In addition, the device offers a 2-way tone control and level control for the master output. This enables precise adjustment of the sound and makes the device ideal for use in conference rooms, churches or at live events.

User-friendly design

The DMP-130MIXBT is designed for 19-inch rack mounting (1 U) and offers a compact design. The blue backlit LC display provides a clear overview of settings and playback information. An IR remote control is included for convenient control of the MP3 player. With auto-start functions that save the last source, playback modes and EQ settings, the device is ready for immediate use.

Outstanding audio quality

The device delivers impressive sound quality with a frequency range of 20-20,000 Hz, a distortion factor of less than 0.1% and a dynamic range of over 96 dB. The channel separation of over 60 dB and the signal-to-noise ratio of more than 70 dB guarantee clear and distortion-free reproduction. The analog output (XLR sym. and RCA) offers flexible connection options for external amplifiers or loudspeaker systems.

Why choose the Monacor DMP-130MIXBT?

The Monacor DMP-130MIXBT is a versatile and professional solution for anyone looking for a reliable MP3 player with an integrated mixer. With its extensive connectivity options, flexible media support and user-friendly operation, it is ideal for events, presentations or audio installations. The robust design and excellent sound quality make this device an excellent choice for professional users.

Features:

• Combination of MP3 player and microphone line mixer
• Media support: USB, SD/MMC (up to 64 GB), Bluetooth
• Formats: MP3, WMA, WAV, FLAC
• Auto-play/single-play and repeat function
• 5-band EQ and directory support
• Autostart with last source, playback modes and EQ settings
• 3 input channels: Mic, Aux/MP3, Line (each with level controls)
• 2-way tone control and level control for master output
• Connections:
  • 1 x 6.3 mm/XLR combo (Mic/Line)
  • 1 x 3.5 mm jack (Aux In)
  • 1 x RCA L/R (Line In)

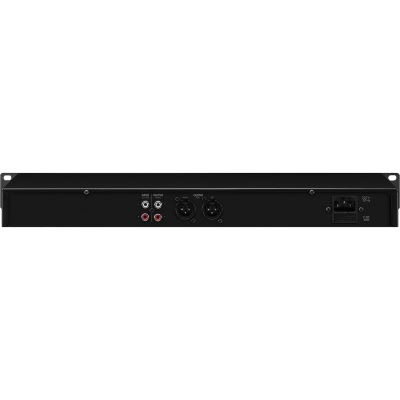

  • 1 x Cinch L/R (Line Out)
  • 1 x XLR L/R, balanced (output)
• Blue backlit LC display
• Operation via jog dial or IR remote control
• Dimensions: 482 x 44 x 160 mm (1 U)
• Weight: 2.5 kg
• Frequency range: 20-20,000 Hz
• Distortion factor: < 0.1 %
• Dynamic range: > 96 dB
• Channel separation: > 60 dB
• Signal-to-noise ratio: > 70 dB
• Power supply: 230 V/50 Hz
• Operating power consumption: 20 VA

Specs:

• Color: Black
• Type: Media Player
• Theme: DJ Equipment
