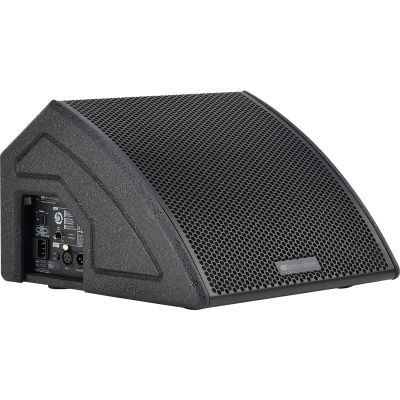

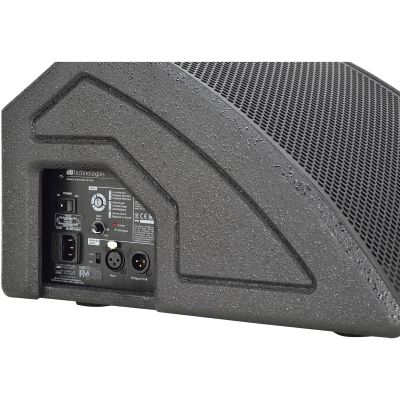

dB Technologies Flexsys FMX 10

The FMX series monitors offer very precise dispersion and the rotatable horn (60° x 90°) allows them to be quickly adjusted to the user's needs.

In addition, 8 on-board presets optimize the EQ for different requirements and make the FMX an easy-to-use tool for the user.

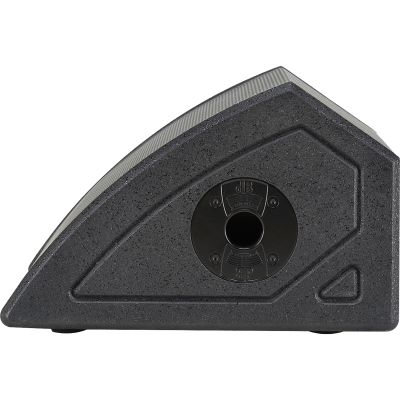

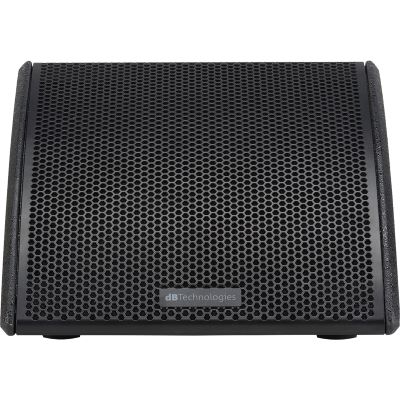

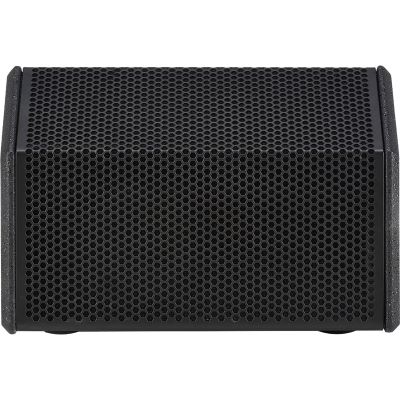

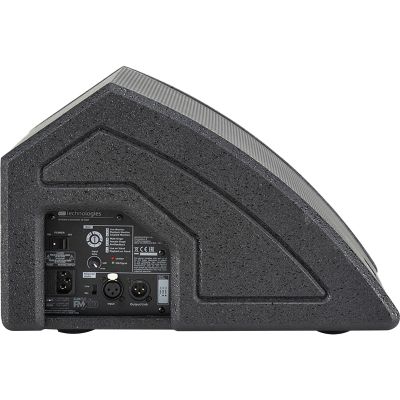

All FMX Series monitors feature a unique front-rear grille design, as well as a handle integrated on the bottom of the cabinet and a 36 mm tripod mount.

Features:

• 2-way coaxial-10" + 1"

• frequency response: 57 - 19 000 Hz
• max SPL: 125 dB
• rotatable horn (60° x 90°)
• Class D power amplifier / 800 W peak

• dimensions: W 39,00 x H 29,80 x D 41,10 cm
• Weight: 11.30 kg

Processor:

• Controller DSP: 28/56 bit
• AD/DA Converter: 24 bit/48 Hz
• System Presets: 8 presets
• Limiter: Peak, RMS, Thermal
• Advanced DSP Function: FIR Filters
• Crossover Frequency: 1800 Hz
• Slope LF/HF: 24 dB/oct

Specs:

• Power: 800 W
• Housing Material: Multiplex
• Woofer: 1 x 10
• Tweeter: 1 x 1
• Set Offer: no
• Type: Stage Monitor
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (666.51 KB)
