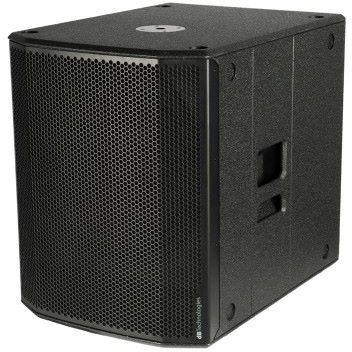

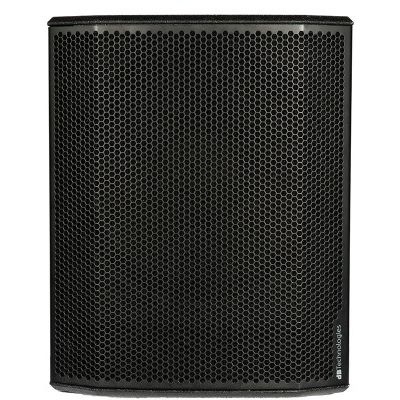

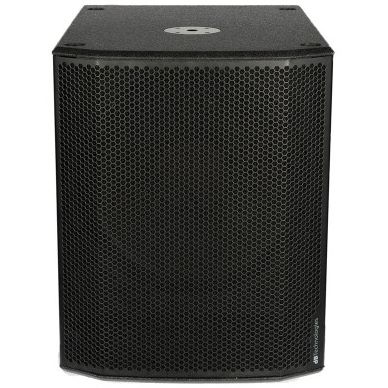

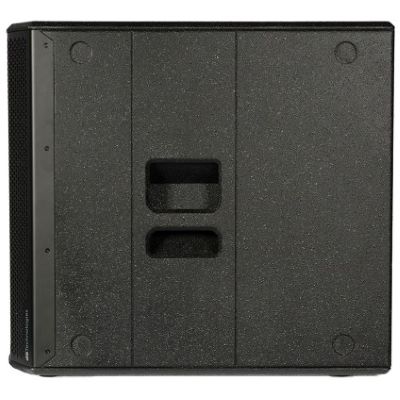

dB Technologies SUB 618

The SUB 618 is a powerful, active 18" subwoofer with bass reflex cabinet. He owns a maximum power of 1200W and a maximum SPL of 131dB.

Features:

• 18" woofer with 2,5" voice coil
• digital amplifier
• 600W/RMS, 1200W/Peak
• 35-130 Hz
• 133dB max. SPL
• 56-bit DSP
• RMS, peak, thermal limiter
• M20 tripod flange


Technical data:

• RMS Power: 600 W
• Peak Power: 1200 W

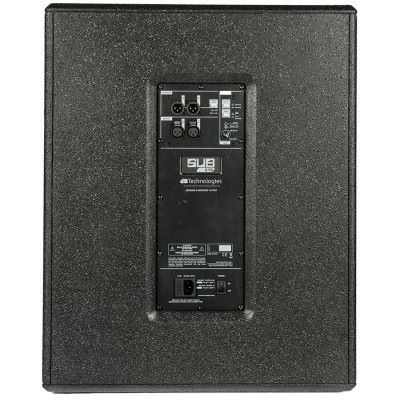

• Signal Input: 2 x XLR (balanced)
• Signal Out: 2 x XLR (balanced)
• Mains connections: VDE
• 220-240V~ (50-60Hz) or 110-120V~ (50-60 Hz)
• Housing: Plywood
• Grill: Full metal grill
• Pole Mount: Yeah, M20.
• width: 500 mm
• height: 625 mm
• depth: 690 mm
• Weight 31,1 kg

Specs:

• Power: 1200 W
• Housing Material: Wood
• Pole Mount: no
• Woofer: 1 x 18
• Set Offer: no
• Type: Subwoofer
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (1.92 MB)
