Dynacord SUB 112 D-Lite Product Details

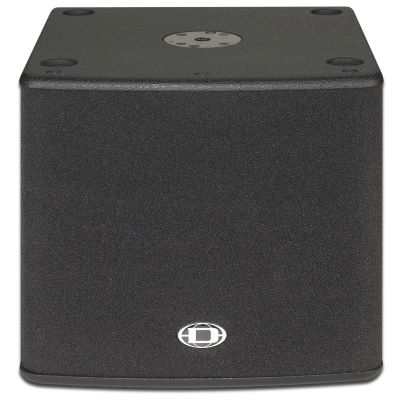

The Dynacord SUB 112 is a vented direct radiating with the high-power neodymium woofer DND12S400. The conical vent system, compared to conventional bass reflex ports, low losses and low air flow noise. High sound pressure levels at low frequencies are transmitted with much less distortion than conventional bass reflex ports. The SUB 112 is a passive filter with 6 dB / oct., That suppresses the high frequencies.
The SUB 112 can therefore directly parallel to Appropriate fullrange cabinets, eg Dynacord D 8 can be used as a bass extension. The SUB 112 and D 8 in this case are simply connected with a regular Speakon cable, further measures are not required.
The SUB 112 cabinet is made of 15mm birch plywood. All corner joints are grooved and glued. The cabinet surface is finished with a 2-component coating. The acoustic foam front on a powder-coated steel grille protects the DYNACORD DND 12S400 woofer against mechanical damage during transport and bad environmental conditions. The connector panel uses two 4-pole Speakon connectors for reliable connection and easy chaining equipped (INPUT / THRU). The pin assignment is 1 + / 1 -. Pins 2 + / 2 - are also connected between the two sockets. At the top a flange allows for a speaker stand pole. Appropriate fullrange cabinets that can be placed directly above the SUB 112. Such structures must of course be secured against falling. Drag this to always consult a certified specialist.
Four large rubber feet ensure a firm footing through two side-mounted carrying handles easy and safe transportation is provided. A protective cover is available as an accessory.
Features:
- Cabinet: Subwoofer
- Configuration: Built-In Hi-Cut Filter
- Nominal impedance: 8 Ohms
- Rated power RMS: 400 Watts
- Program power: 800 Watts
- Peak power: 1600 Watts
- SPL 2,83 V/1m 1 W/8 Ohm: 92 dB
- Max. SPL 1m (calculated with peak power): 124 dB
- Frequency range (-10dB): 43Hz - 350Hz
- Passive crossover frequency: 124 Hz
- Connector model: Speakon NL4MPR
- Dimensions (WxHxD) mm: 545 x 380 x 445 mm
- Shipping weight: 22 kg
- Net weight: 20 kg
Specs:
- Type: Subwoofer
- Theme: PA and Sonication
