EUROLITE DMX LED Color Chief Controller B-Ware

Why B-Ware?: exhibit with slight signs of use

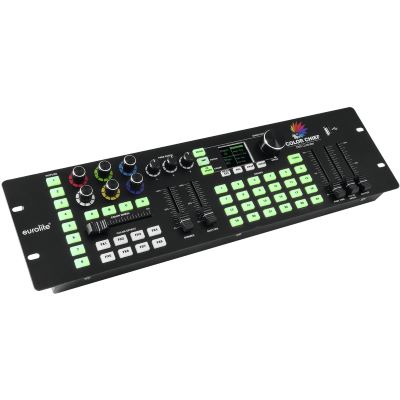

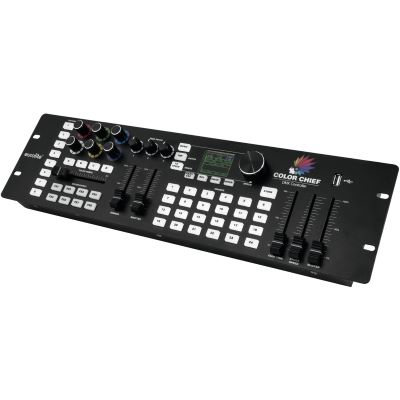

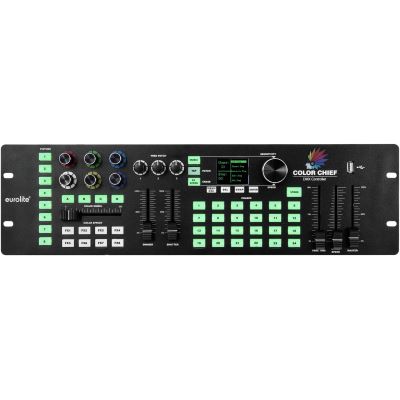

The DMX LED Color Chief by Eurolite is an innovative and easy to use DMX lighting console for LED spotlights. It is suitable for LED spotlights with up to 6 colours, simple lighting effects, compact batten luminaires, or for 8 devices or device groups with up to 4 segments.

Features:

• Easy control of LED spotlights with up to 6 colours, compact batten luminaires and simple lighting effects
• For 8 devices or device groups, each with up to 4 segments
• Each device can occupy up to 30 channels
• Quick and easy programming
• Eurolite KLS systems and LED spotlights already installed in the library
• Add more devices manually with ease
• 8 color effects directly selectable
• Three additional channels per device are freely patchable (e.g. for movements)
• Color wheel selection and simulation
• 24 memory locations for tunings and running lights
• Several running lights can run at the same time
• USB connection for data storage of light shows
• Clock control via music signal or TAP button
• Total dimming, fade time and running time easily adjustable
• 3-pin XLR connector
• Firmware update via USB
• Rubberized feet for use as table-top unit
• Rack mounting with 2 height units

Technical data:

• Power supply: 100-240 V AC, 50/60 Hz via supplied power supply unit (9 V/800 mA)
• Total connected load: <10 W
• Number of control channels: maximum 240
• Storable scenes/running lights: 24

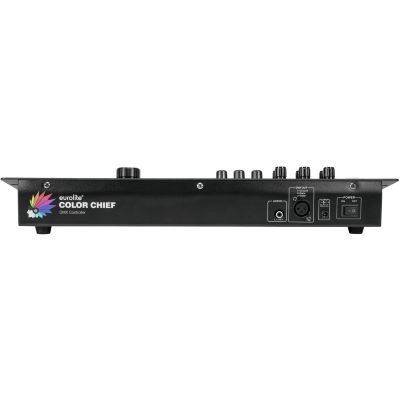

• DMX512 output: 3-pin XLR female connector
• Music control: via built-in microphone or via line input, cinch socket (min. 100 mV)
• Suitable storage media: USB devices (FAT32)
• Dimensions (L x W x H):482 x 132 x 85 mm
• Rack mounting: with 2 HE
• weight: 2,2 kg
