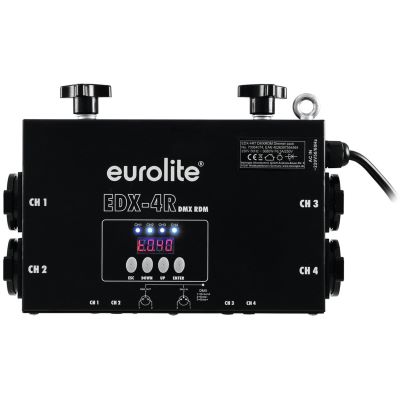

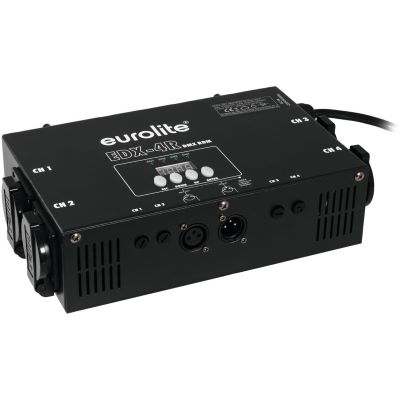

EUROLITE EDX-4RT DMX RDM Truss Dimmerpack

The EUROLITE EDX-4RT DMX RDM Truss Dimmerpack is a 4-channel dimmer pack for truss mounting. It has 10 programmable chases with up to 30 scenes each.

Features:

• DMX dimmer pack for truss installation
• Connected load: 4 x 1150 W
• 4 DMX channels
• LED status indication for each output channel
• Control panel with 4-digit LED display for addressing and settings
• Individual dimmer curves per channel (linear, square, inverse square, switch)
• 10 programmable chases with 30 scenes each can be stored
• Automatic and sound-controlled chase running mode
• 10 programmable scenes
• Supports RDM
• DMX512 input and output

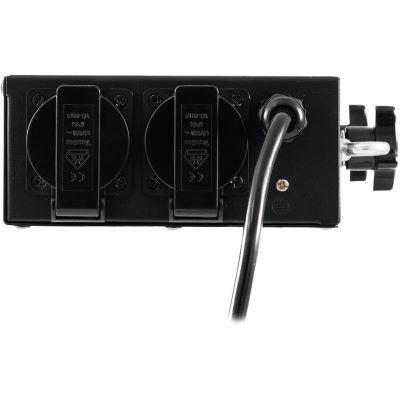

• Outputs via 4 safety sockets
• 2 x M8 thread

Technical Specificatons:

• Power supply: 230 V AC, 50 Hz
• Max. power output: 3680 W
• Max. total current: 16 A
• Resistive load/channel: 1150 W
• Max. current/channel: 5 A
• Number of control channels: 4
• Storable scenes: 10
• Storable chases: 10 with 30 steps each
• Sound control: via built-in microphone
• Output sockets: 4 safety power outlets

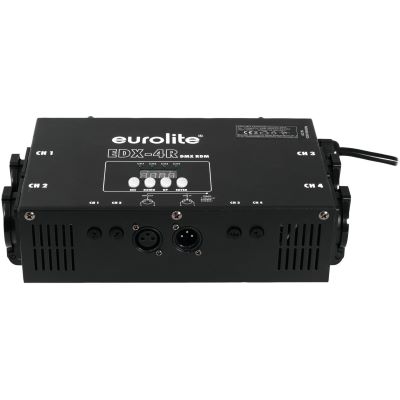

• DMX output: 3-pin XLR mounting plug
• DMX input: 3-pin XLR mounting jack
• Dimensions (W x D x H): 270 x 185 x 75 mm
• Weight: 2.3 kg

Instruction manual / Safety instructions:

• Manual (760.18 KB)
