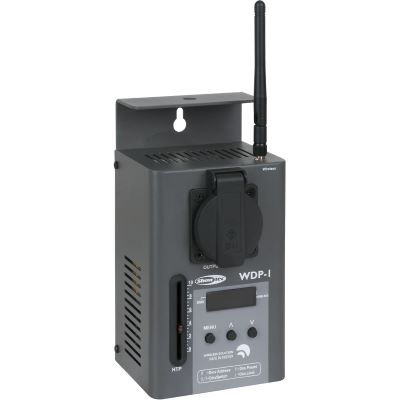

Showtec Single WDP-1

The Single WDP-1 is a one channel DMX dimmer/switch with built-in Wireless DMX receiver. It is wall- truss- and fixture mountable which makes it suitable in any location. It has both dim- and switch mode and can be controlled manually on the 50mm fader.

Features:

• 50 mm dimming slider
• Wireless DMX receiver built-in
• Compact All-in-one housing
• Applicable as WDMX receiver
• Input Voltage: 230VAC - 50 Hz
• Channel-Output: 10A max.

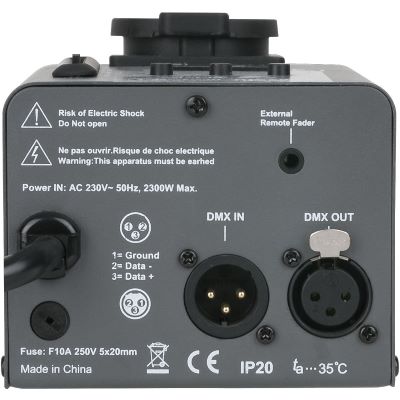

• DMX-Connectors: 3-pin XLR sockets
• Control Options: On-Board Control Panel, DMX, W-DMX
• DMX Channels: 1
• Fuse: F 10A 250V 5 x 20 mm
• Dimensions: 195 x 105 x 90 mm (LxWxH)
• Weight: 1,38 kg

Instruction manual / Safety instructions:

• Manual (1.18 MB)
