NEW EUROLITE LED KLS Laser Bar FX AIR

EUROLITE LED KLS Laser Bar FX AIR - Complete lighting effect system with laser, derbies and AirW-Funk

Take every party to a new level with the EUROLITE LED KLS Laser Bar FX AIR! This compact and powerful effect bar combines two spots, two rotating derbies, a show laser, a twinkle effect and the AirW radio unit in a single system - including a practical radio remote control. It is immediately ready for use, versatilely controllable and ideal for mobile DJs, solo entertainers, small stages and event locations.

The integrated AirW radio technology on 2.4 GHz enables wireless control with a long range - ideal for mobile use. The bar can be conveniently operated via DMX, music control or stand-alone. Thanks to the bag supplied, the Laser Bar is always protected and easy to transport.

EUROLITE - lighting technology for creative events

EUROLITE stands for proven event technology with a focus on innovation, user-friendliness and versatility. The KLS Laser Bar FX AIR embodies this claim perfectly: it combines classic lighting technology with modern features such as wireless control, pre-programmed shows and flexible DMX addressing.

Thanks to laser class 2M, the laser unit can be used without a laser safety officer. The bar not only impresses with its powerful effects, but also with practical features such as power linking, flicker-free projection and versatile application options - whether standing, flying or mounted on a tripod.

Conclusion: EUROLITE LED KLS Laser Bar FX AIR - all-in-one solution for impressive lighting effects

With the EUROLITE LED KLS Laser Bar FX AIR, you get a fully equipped lighting system that delivers maximum show power in the smallest of spaces. Whether wedding, club party, gala or mobile event - this effect light impresses with its user-friendliness, versatility and powerful performance.

Ideal for anyone who wants to be ready for action quickly without having to rely on complex lighting technology - including AirW wireless module, remote control and carrying bag!

Features:

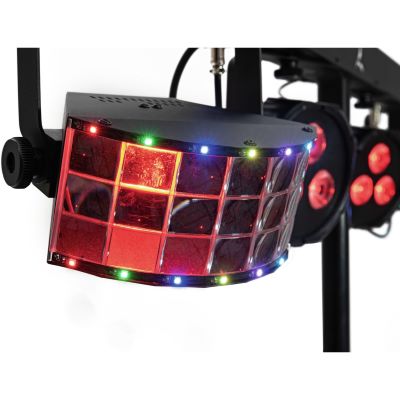

• Compact complete system with 2 spots, 2 derbies, show laser and twinkle effect
• Integrated AirW radio unit (2.4 GHz) with a range of up to 70 m
• Radio remote control with a range of up to 30 m (433.92 MHz)
• Adaptive frequency hopping for a stable connection
• 2 laser diodes (red & green) project hundreds of beams - particularly effective with fog
• Stepless color mixing and extensive effect programs
• DMX failure modes: blackout, hold, full on, auto
• Can be controlled via DMX, stand-alone, music control, master/slave, AirW, QuickDMX, W-DMX, CRMX, wireless remote control, optional wireless footswitch
• Pre-programmed for Light Captain & Colorchief
• LED spotlights:
  • 3 x 8 W 4in1 QCL RGB/WW LEDs (spots, individually controllable)
  • Spot beam angle: 12° (1/2 peak), 30° (1/10 peak)
• Lighting effects:
  • 4 x 3 W high-power R/G/B/W LEDs
  • 14 x 0.2 W SMD 3535 3in1 TCL RGB LEDs (homogeneous color mixing)
• Laser:
  • Laser class: 2M (no approval required)
  • Laser color: red (100 mW, 650 nm), green (30 mW, 532 nm)
• Control via:
  • DMX (3, 8, 11, 24, 27 channels)
  • AirW radio
  • Music control (integrated microphone)
  • Standalone & master/slave
  • Radio remote control (included)
  • QuickDMX, W-DMX, CRMX (USB options)
  • Optional wireless footswitch
• Mains connection via SEETRONIC P-Con (blue/grey)
• Power linking: Mains input and output for up to 8 devices
• DMX In/Out: 3-pin XLR built-in version
• DMX failure mode: Blackout, Hold, Full on, Auto
• Flicker-free projection
• Mounting: stand, floor, truss - Ø35 mm mount, mounting bracket included
• 4-digit 7-segment LED display
• Cooling via 3 integrated fans
• Color temperatures: 3100K and 5300K
• Material: painted metal housing, color: black matt
• Dimensions: 103 x 8.2 x 33.6 cm
• Weight: 8.10 kg
• Noise classification: Class 2 (low noise)
• Protection class: IP20, protection class I
• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 65 W
• Fuse: T 1.6 A (5 x 20 mm) replaceable

Scope of delivery:

• 1 x EUROLITE LED KLS Laser Bar FX AIR
• 1 x mains cable
• 1 x operating instructions
• 1 x declaration of conformity
• 1 x Remote control (incl. 12V 23AE battery)
• 2 x knurled screw
• 2 x mounting bracket
• 2 x washer
• 1 x carrying bag

Instruction manual / Safety instructions:

• Manual (7.82 MB)
