EUROLITE LED KLS Scan Next FX Kompakt-Lichtset

The EUROLITE LED KLS Scan Next FX compact light set is equipped with 4 spots for the colored basic lighting, UV LEDs for the popular black light effect and a derby effect for the party atmosphere. Furthermore, the set is equipped with two integrated scanners including gobo wheel and color wheel. The scanners each have a very effective 15 watt LED. The control options of the KLS offer something for every user: Even without an external controller, 20 different programs can be set, which run either automatically or music-controlled. Furthermore, programs can be called up and colored moods can be created via the included infrared remote control, or via an optional baseboard.

The KLS has a USB socket for QuickDMX. An optional DMX wireless adapter can be plugged into this for wireless DMX transmission. This works not only from one console to the KLS bars, but also among each other for master-slave operation in case of several KLS. Thus, 10 different DMX modes can control. In the smallest mode with three channels, the automatic and music-controlled programs can be called up and switched. The largest mode with 39 channels allows full control of each fixture, the derby and the scanners. Some modes control both scanners simultaneously, allowing one or both axes of motion to be inverted to create a coherent image.

Features:

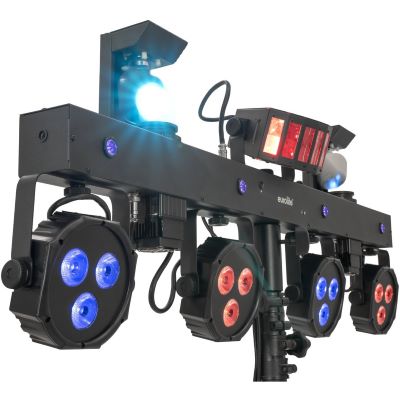

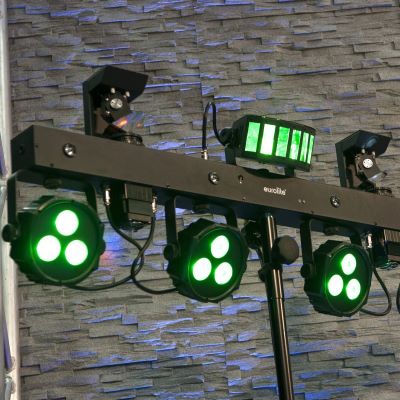

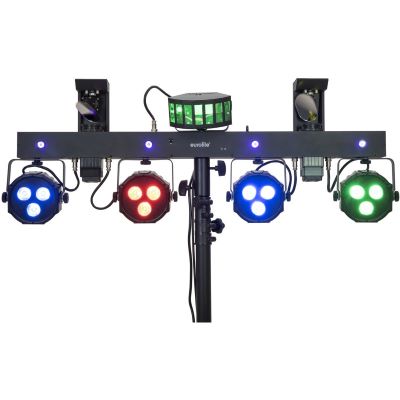

• DMX light effect bar with 1 rotating LED derby, 4 LED spots, 2 scanners and UV LEDs.
• Absolute lightweight best suited for mobile use

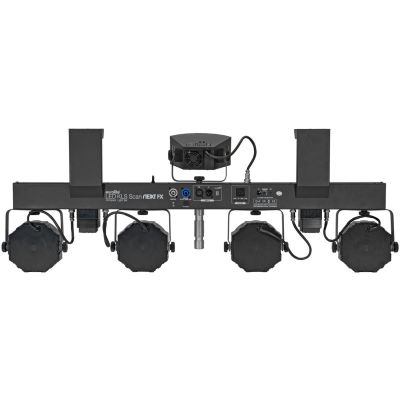

• Crossbar with integrated DMX control unit and TV spigot for tripod mounting

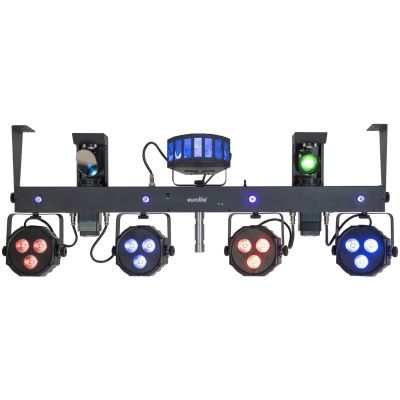

• Swiveling mounting brackets for truss mounting

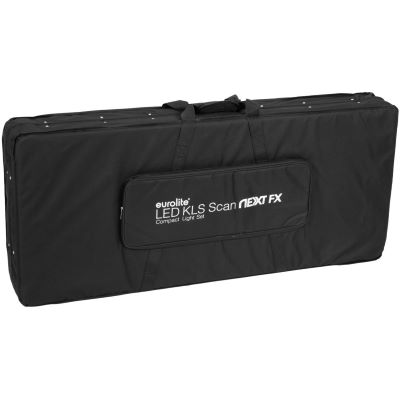

• Supplied pre-assembled in a practical transport bag

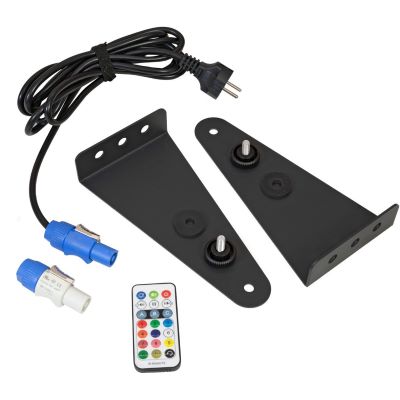

• Convenient remote control via included IR remote control or optional wireless foot switch
• Music control via built-in microphone with sensitivity control
• Many different DMX modes for different consoles and requirements

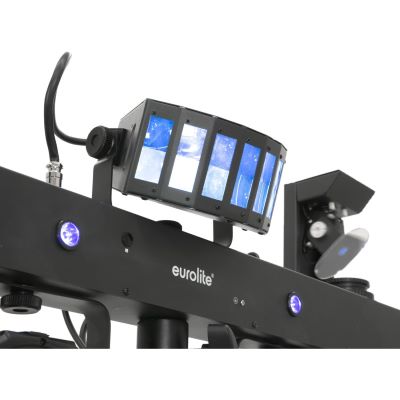

• LED derby and LED spots can be individually aligned and controlled

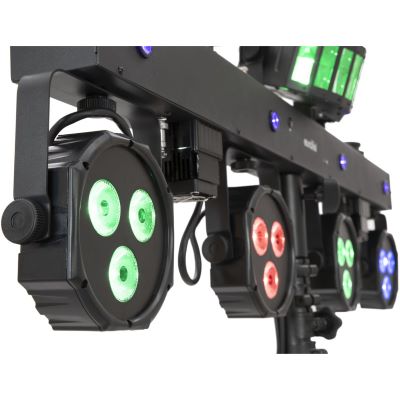

• Spots with 15° beam angle
• Mirror movement for both scanners separately invertible (e.g. for common, counter-rotating control)
• Newly designed software with attractive programs
• 20 integrated show programs (which include all 4 effect units) in auto and music mode
• Addressing and settings via control unit with 4-digit OLED display
• Compatible with QuickDMX - the wireless DMX system from Eurolite
• Phantom powered USB socket for QuickDMX receiver (accessory)

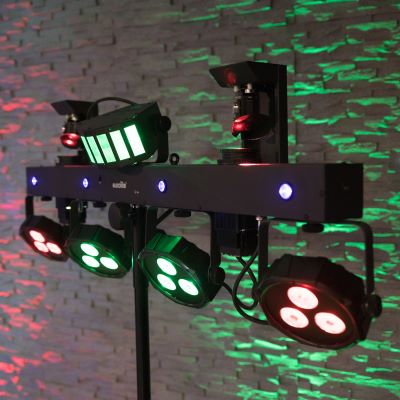

• When using fog, this effect is particularly effective
• P-Con power connectors for easy interconnection of up to 8 units
• Switching power supply technology for mains voltage between 100 and 240 volts
• Can be operated in 3; 7; 13; 14; 15; 18; 19; 30; 32; 39 CH DMX mode
• The device is cooled by a fan
• Controllable via DMX; QuickDMX via USB (optional); IR remote control (included); music control via microphone; stand-alone; wireless foot switch (optional); master/slave function

Technical data:

• Power supply: 100-240 V AC, 50/60 Hz
• Total connected load: 115 W
• Protection class: IP20
• Protection class: SK I
• Power connection: Power supply P-Con (blue), built-in version Power connection cable with safety plug (included)
• Power output: P-Con (gray), built-in version
• Fuse: 5 x 20 mm, T 2 A fuse replaceable
• Lamp type: LED lamp
• Equipment: color wheel; gobo wheel with static gobos
• DMX channels: 3; 7; 13; 14; 15; 18; 19; 30; 32; 39
• DMX input: 1 x 3-pin XLR (M) built-in version
• DMX output: 1 x 3-pin XLR (W) built-in version
• Cooling: Fan
• Control: DMX; QuickDMX via USB (optional); IR remote control (included); music control via microphone; stand-alone; wireless foot switch (optional); master/slave function
• Beam angle: 15
• Beam angle (1/2 peak): Spot 15°
• Beam angle (1/10 peak): Spot 28°
• Illuminance in lux (lx): R red 1m: 1022 lx, 3m: 125 lx, 6m: 33 lx
• Illuminance in lux (lx): G green 1m: 2448 lx, 3m: 285 lx, 6m: 75 lx
• Illuminance in lux (lx): B blue 1m: 395 lx, 3m: 47 lx, 6m: 13 lx
• Illuminance in lux (lx): WW 1m: 1892 lx, 3m: 219 lx, 6m: 58 lx
• All 1m: 4853 lx, 3m: 676 lx, 6m: 175 lx
• Housing color: Black
• Mounting system: TV spigot Ø 28mm
• Display type: OLED display
• Width: 1.1m
• Depth: 15,5 cm
• Height: 43 cm
• Weight: 12,80 kg

Instruction manual / Safety instructions:

• Manual (3.74 MB)
