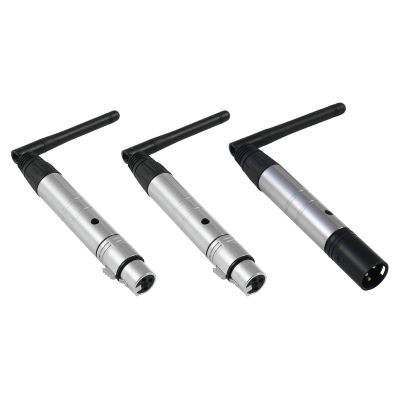

SET Eurolite QuickDMX Wireless Set

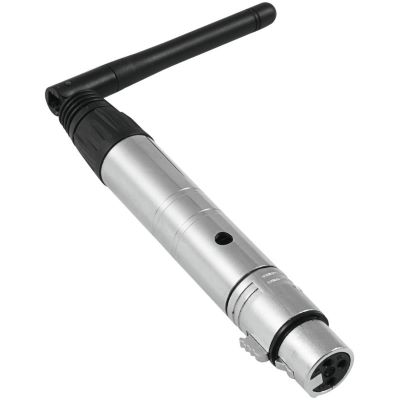

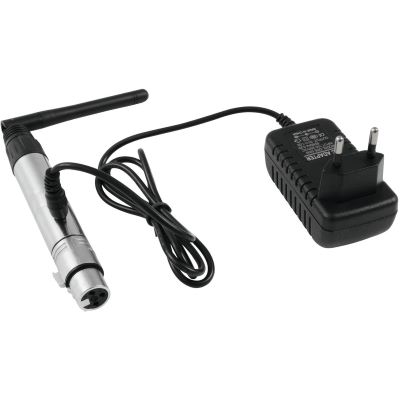

2x EUROLITE QuickDMX Funkempfänger

Model: 70064701

2 piece on stock

(1)

Features:

• Miniature wireless DMX receiver for the wireless transmission of up to 512 DMX channels
• User-friendly 3-pin XLR plug (female) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Operating range up to 400 m (with line-of-sight)
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Powered via included PSU
• 2.4 GHz ISM band - license-free worldwide
• Only to be sold in Germany, no export model available

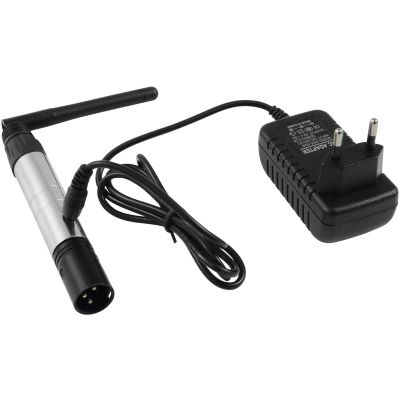

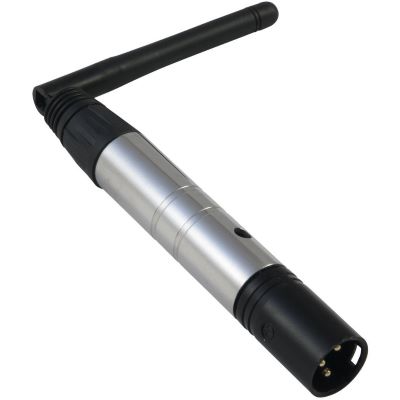

1x EUROLITE QuickDMX Funksender

Model: 70064700

2 piece on stock

(1)

Features:

• Miniature wireless DMX transmitter for the wireless transmission of up to 512 DMX channels
• User-friendly 3-pin XLR plug (male) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Operating range up to 400 m (with line-of-sight)
• Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Powered via included PSU
• 2.4 GHz ISM band - license-free worldwide
• Only to be sold in Germany, no export model available

Instruction manual / Safety instructions:

• Manual EUROLITE QuickDMX Funkempfänger (1.56 MB)
• Manual EUROLITE QuickDMX Funksender (1.56 MB)
