Furman HDS-16/E Kopfhoererverteiler

Following up on the tremendous success of its HDS-6/ HR-6 Headphone/Audio Distribution System, Furman introduces an enlarged and enhanced system, the HDS-16/HRM-16 Headphone/Audio Distribution System.

The HDS-16 Headphone/Audio Distribution System and HRM-16 Headphone/Audio Remote Mixer are the logical extension to Furman's very popular headphone amp/audio distribution lineup. These models are designed to function equally well for both live (in-ear or stage monitors) and studio applications, allowing greater flexibility and ease for both the user and the engineer.

The HDS-16/HRM-16 Headphone/Audio Distribution System cleanly routes 8 mono and 4 stereo signals to remote mixing locations via Centronics 50 pin cables. Up to eight HRM-16's can be connected directly or daisy chained to a single HDS-16, allowing as many as sixteen users (two per each HRM-16) to customize eight different mixes. A unique talkback system allows each user to communicate with other users and the main mixing location. Additionally, a SOLO system allows the engineer to mute all but one stereo send from the mix location very handy for reviewing recent takes or rough mixes. Additional HRM-16 features include local effects send/return, line out, overall bass/treble controls, talkback level, and a master level control.

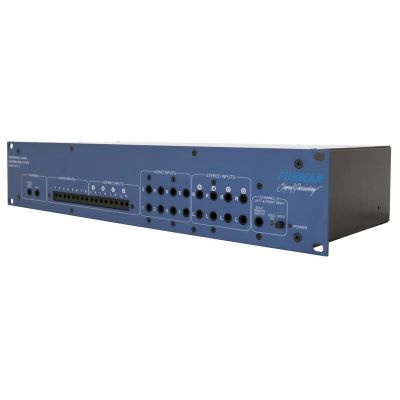

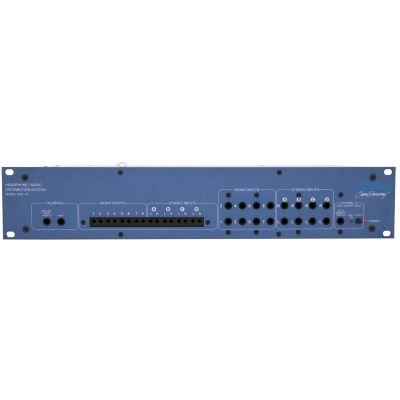

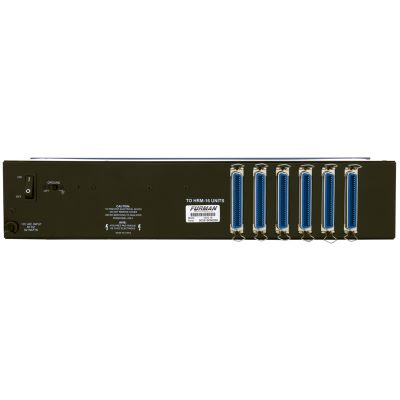

The double rack-space HDS-16 provides full patching functions on its front panel via 1/4" and TT input jacks, and is intended to be installed at the mixing console location. The HDS-16 provides power and signal conditioning to drive the HRM-16 Remote Mixers. There is no power cord or wall wart required for the HRM-16's. In addition, it includes two 1/4" jacks for the two-way talkback functions, and a SOLO REMOTE switch with an indicator that allows muting of all but one stereo feed at all HRM-16's. This comes in handy for isolating tracks for critical listening without having each HRM-16 user turn down all but one channel. The SOLO function also includes a 1/4" jack so actuation can be done with a footswitch. Front panel indicators include POWER ON and SOLO ON. The rear panel includes six Centronics 50 pin connectors to link up to six HRM-16's (more if daisy chaining is used), and the standard Furman ON/OFF and GROUND LIFT switches.

The unique talkback system is extremely versatile. It can be configured two different ways by moving a jumper on the circuit board in the HDS-16. One way allows the talkback mic on each HRM-16 to be fed to all of the other HRM-16 units as well as the HDS-16. The other configuration allows communication to the HDS-16 only. This is particularly useful for stage use where the user's talkback mic should not feed into all of the monitors (including the user's own monitor).

The HRM-16 Remote Mixer may either attach to a mic stand with the included mic stand clip and hardware, or be placed on a table or shelf. The unit requires no external power, and allows full volume/low distortion headphone mixes to be created on the fly.

The eight mono and four stereo signals each have level controls. Each mono channel also has a pan control and an effects send control which feeds its own rear panel 1/4" send/return jacks; the affected signal is returned into the mix and controlled via a stereo effects return knob. Also on the rear panel of the HRM-16 is a mono line out 1/4" jack to drive stage or in-ear monitors, a jack for a talk-back footswitch, and two 50 pin Centronics connectors to allow daisy chaining of up to four HRM-16's.

Connecting HDS-16 and HRM-16's is easy, as each mixer is supplied with a 25-foot super-flexible interconnect cable which can easily be extended or routed through walls and daisy chained to other HRM-16s. Cable extenders and thru-wall installation kits are available as well (see below).

The HDS-16 and HRM-16 are sold separately.

OPTIONS

Model HDS-16E: "E" suffix version is for use in countries with 220/240 VAC mains. Since HRM-16 units derive their power from the HDS-16, no special HRM-16 model is needed.

OPTIONAL ACCESSORIES

HRM-CABL: Replacement 25 foot (7.7m) Centronics cable for linking or daisy-chaining HRM-16's, or for extending existing cables.

HRM-16EX: Extension adapter which allows two HRM-CABLs to be joined together to create extended cable lengths. Up to eight HRM-CABLs may be joined, making a total length of up to 200 feet (62m), using one HRM-16EX adapter per cable segment (see Cable Specifications below).

HRM-THRU: Wallmount kit consisting of two Centronics connectors linked with an 18 inch flat cable. Includes two wall plates and gaskets.

HRM-RAW: Raw HRM-16 cable, priced per foot, for those desiring to make their own cables in exact, custom lengths.

HRM-CONN: Cable-mount Centronics connector, for making custom cables.





Features Every artist in the studio or on stage can have a custom headphone/monitor mix without any adjustments at the board

Perfect for tracking, overdubbing, rehearsal sessions, and onstage monitor mixing

HDS-16 rackmount distribution system connects to the studio console and routes 8 mono and 4 stereo signals to HRM-16 remote mixing stations via a single multi-pair cable

The HRM-16 Remote Mixer may either attach to a mic stand or be set on a shelf or table, allowing headphone/monitor mixes to be created on the fly

Talkback system allows each HRM-16 mixer user to communicate with other users and the main mixing location

One 25 foot (7.7m) HDS-16 to HRM-16 linking cable is included with each HRM-16 unit, eliminating the need for a costly "console snake"

HDS-16 provides ultra low distortion (less than .002%), low crosstalk, high dynamic range (greater than 105 dB) drive for the HRM-16's

All inputs are balanced; line outputs are balanced or single ended

Three year limited warranty



Specification:

 CABLE SPECIFICATIONS

25 twisted pair, 24AWG, with overall shield, Centronics 50 pin plug (male) each end. The length of cable used only affects the maximum continuous power out.

Losses for additional cable beyond 25 feet:

32 Ohm phones:

-0.34 dB (693 mW vs. 750 mW maximum output) per 100 feet of cable

100 Ohm phones:

-0.16 dB (746 mW vs. 770 mW maximum output) per 100 feet of cable

600 Ohm phones:

-0.056 dB (257 mW vs.260 mW maximum output) per 100 feet of cable

GENERAL SPECIFICATIONS

Inputs: Balanced, impedance 50k ohms, 90 dB CMRR

Line Outputs:

Balanced or single ended, impedance 50 ohms, 68 dB OCMR

Sensitivity: +4 dBu for rated output

Power Output:

750 mW at 32 ohms; 770 mW at 100 ohms; 260 mW at 600 ohms

Distortion and Noise:

Less than .002% THD, 20 Hz to 20 kHz, full rated power

Dynamic Range: Greater than 105 dB

Frequency Responsen: +0, -1 dB from 13 Hz to 32 kHz

Crosstalk: Less than -95 dB at 10kHz

Power Requirements:

HDS-16: 120 VAC, 60 Hz, 82 W

HDS-16E: 230 VAC, 50 Hz, 82 W

Mechanical:

HDS-16: Dimensions: 3.5" H x 19" W x 8" D; Weight: 9.4 lbs (4.3kg)

HRM-16: Dimensions: 2.875" H x 11" x 7" D; Weight: 3.5 lbs (1.6kg)
