FUTURELIGHT CP-1024 Controller 16bit
We are no longer offering this product.
You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.
- more of Futurelight
FUTURELIGHT CP-1024 Controller 16bit Product Details

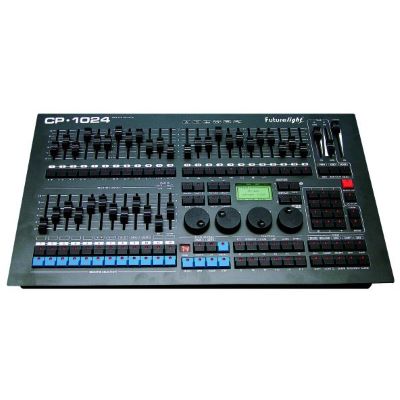

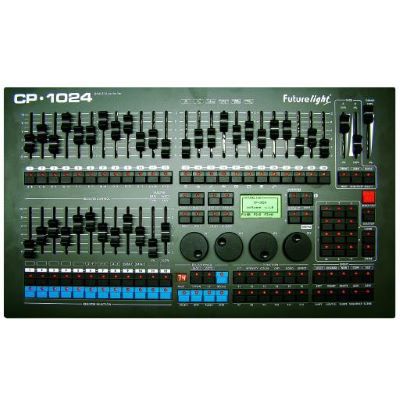

FUTURELIGHT CP-1024 controller 16bit
Everything under control!
Why not try something new. You are living true to this motto? Then take the next step with us and regard the CP-1024 controller, that was designed to operate scanners and moving lights. Compared to current control desks, the composition and the handling is different indeed, but maybe this is exactly the kind that is picture-perfect for you? Look at computers, there you also have Microsoftians and Appleians. The proof of the pudding is in the eating. Find out on what side you are!
Live Controller
Features:
- Easy-to-use operation
- Software updates available
- 1024 DMX Channels
- 2 DMX Universes, 3 & 5 Pin connectors on each output
- Control 128 moving light fixtures up to 64 channels each
- Control 256 conventional dimmers
- Playback scenes using buttons or playback faders
- Effect generator to create chase effects
- Conventional dimmers can be included in scene memory or be independent
- Easy to make color, gobo, focus & effect presets
- Large moving light fixture library available
- Scenes, shows, chases and presets can be assigned to the registers
- 12 event can be run at same time
- High variety of controlling speed parameters on each register, Frontpanel

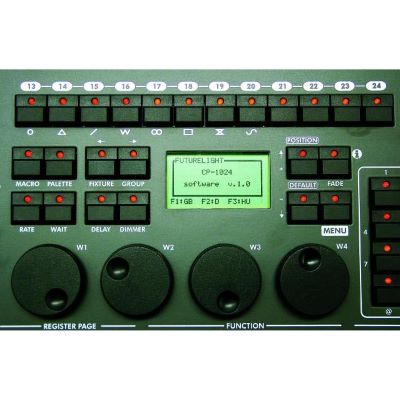

- 128x64 pixel backlit display for easy programming
- 4 menu and control data encoders
- 36 Multi function Quick access buttons
- 39pcs 60mm faders

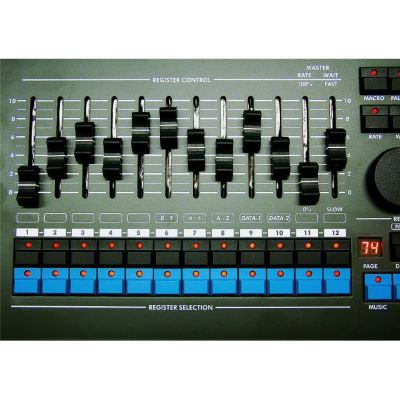

- 12 dedicated playback faders with 99 pages
- Grand master fader, and two additional A/B fader for dimmers
- Go, stop and back buttons
- Blackout, audio and beat buttons
- XLR connectors for frontside lighting, Connection panel
- 2 (3 Pin) DMX Outputs
- 2 (5 Pin) DMX Outputs
- USB Pendrive for memory back up, loading fixture profiles and software updates (up to 2 GB)
- PS2 Keyboard input
- PS2 Mouse input
- USB Port, for PC interface
- Jack Audio input for Chases, Capacity
- 99 programmable register page
- 2048 programmable scenes
- 1188 programmable program
- 1188 programmable presets
- 24 fixture groups
- Fade times up to 1 minute
- Run 12 program simultaneously
