Gemini PDM-03

Professional 4 Channel Stereo Mixers

When it comes to multi-purpose 19-inch audio mixers, Gemini has you covered with the PDM series – a line of multifaceted audio mixers designed to suit the needs of the performing DJ.  With powerful features such as dual 10-band EQ, echo section, and auto-talkover, you’ll have complete control over your sound, and with 7 RCA line inputs, 2 convertible RCA phono/line inputs, and 3 Mic inputs, you’ll never have to search for an extra set of jacks to plug into!

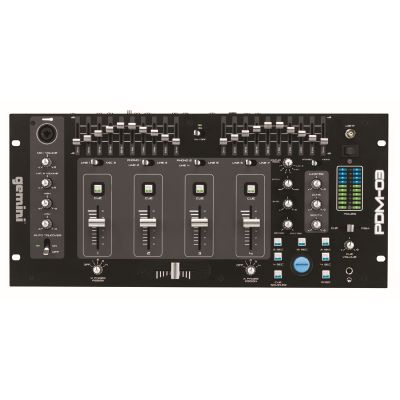

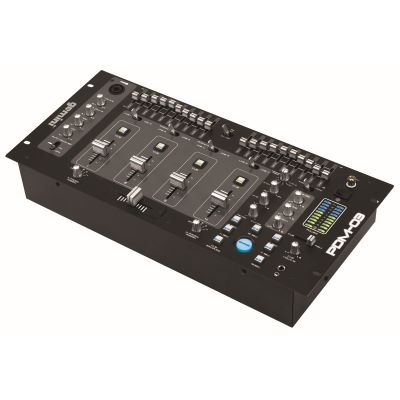

PDM-03

Professional 4 Channel Stereo Mixer

Face:

- 24 second digital sampler comprised of 5 memory banks with soft touch backlit sample buttons

- Rotary assignable channel control for sample selection

- Sample parameter control with rotary level, pitch bend, record/play/stutter controls

- Push button RoboPlay & cue sampler

- Rotary master volume control

- 5U, 19” rack mounted mixer

- 4 stereo channels

- 7 lines, 3 Mic, 2 phono/line convertible RCA inputs

- Master, record, booth, & zone RCA outputs

- 1/4” balanced master output

- 2 1/4” Mic inputs

- Dual 10 band graphic EQ with on/off switch & blue LED indicator

- Rotary zone, booth, & cue volume controls

- Stereo/mono switch

- Assignable cross fader

- Removable, user replaceable Rail Glide cross fader

- Push button cue per channel with green LED indicator

- CUE/PGM fader control allowing cue mix

- XLR-1/4” combo Mic input

- 2 band rotary Mic EQ & volume controls

- Talk over feature

- BNC lamp port

- 1/4” headphone input

Unit Dimentions: 19" X 3.4" X 8.6" (482.6 X 86.36 X 218.44mm) Weight 10.1 lbs. (4.7kg) Shipping: 14.1 lbs. (6.5kg)
