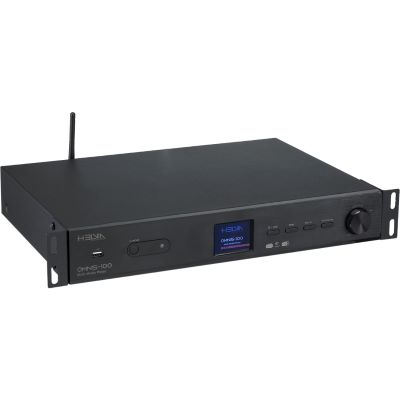

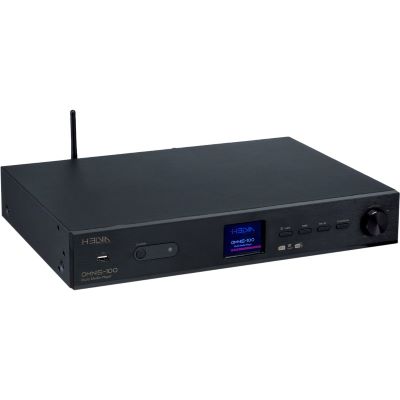

Helvia OMNIS-100 Multi Media Player

OMNIS-100 owes its name to the Latin adjective 'Omnis', which means 'anything, any kind, everything'. It is a rack module (43 cm wide) and one and a half units high (6.8 cm) that can be used as a stand-alone for a Hi-Fi system or inserted into a rack cabinet via the flaps included in the kit. It includes all the technologies for remote connection via wireless network and Bluetooth, as well as the physical connections via USB, LAN, RCA, optical and coaxial audio connectors.

Thanks to these features, the OMNIS-100 can be used as a playback device for audio signals from various streaming sources such as web radio or Spotify, or connected directly to smartphones, tablets and laptops thanks to the "BT Audio Streaming" function.

Features:

• Helvia - OMNIS-100 Multi Media Player)
• Direct connection to the streaming service of Spotify)
• Access to countless web radio stations)
• "BT Audio Streaming" function for wireless connection with smartphones or laptops)
• DAB/DAB+/FM stations with RDS function for additional radio station information)
• Wi-Fi antenna and LAN connection for streaming audio playback in large rooms)
• Remote control via smartphone or tablet with Android/iOS app UNDOK)
• Wireless control via included remote control)
• USB port for audio playback of files in MP3 format via external USB sticks)

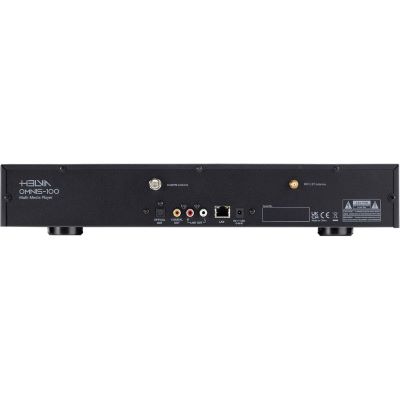

• Coaxial, optical and stereo RCA outputs for connecting a wide range of external devices)
• 2.4" color TFT display)
• Metal casing and laser engraved screen printing)

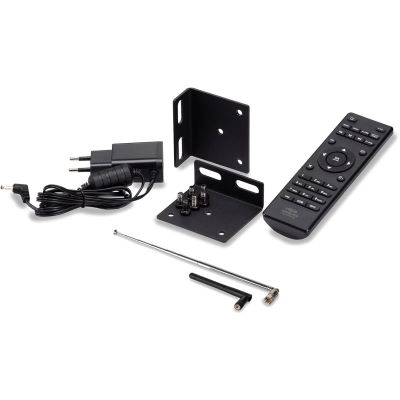

• Metal eyelets included for easy 19" rack mounting)
• External power supply (AC 100-240 V)

Technical data:

• Display: 2.4", 320 x 240, color TFT
• Audio Sources: Internet Radio, Podcasts, DAB/DAB+, FM, BT Audio Streaming, Spotify, USB mp3 Player
• Supported Networks: Wi-Fi IEEE 802.11b/g/n wireless; BT Audio Streaming (BT V4.2, supports A2DP profiles, AVRCP)
• Frequency Bands: WiFi : 2.400 - 2.4835 GHz; BT Audio Streaming: 2.4GHz - 2.48 GHz
• Maximum RF power: WiFi: <20dBm; BT Audio Streaming: Max. 8dBm
• Encrypted Key: WEP, WPA, WPA2 (PSK), WPS
• DAB / DAB+: Band III (174.928 - 239.200 MHz).
• FM: 87.5 - 108.0 MHz, with RDS
• S/N ratio: ≥70dB
• Input sensitivity: 800mV
• Frequency response: 20Hz-20KHz(±3dB)
• USB: Type A connector, female; FAT32 format - max 128 GByte;
• Recognized file format: Mp3; Max 8
• Subdirectories: Max 5000 files in each Directory
• Remote control power supply: 2 x 1.5V AAA battery
• Power consumption in standby mode: <1.0W
• Power consumption in network standby mode: <2.0W
• Operating temperature: 0° C - 35° C

Specs:

• Color: Black
• Type: Media Player
• Theme: DJ Equipment
