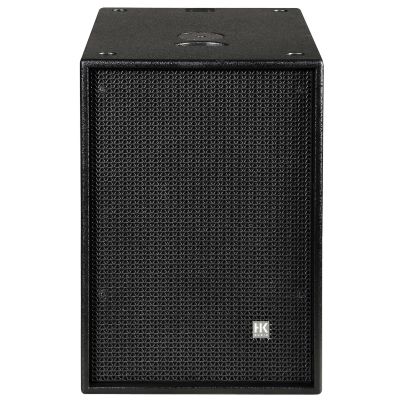

HK Audio CTA 118 Sub Aktiver Systembass Product Details
An active, direct-loaded subwoofer, the 18“ HK-Audio CTA 118 SUB serves as the systems powerful engine room. All the required circuitry is on board, including a 56-bit DDO-Pro digital controller and two 1,000-watt RMS PWM power amps. One of the power amps drives the subwoofers 18“ speaker; the other is configured by the controller to drive a CTA 208 mid/high unit or a ConTour Series CT 108, CT 112 or CT 115 enclosure.
Packing a powerful punch, the CTA 118 SUB delivers low-ranging yet clearly defined bass response, rendering impulses with great accuracy and authority even when handling the heaviest loads.
Filter presets have been devised for the various setups. They fine-tune the components of each configuration to work optimally with each other, ensuring peak system performance and reliability. Simply select the appropriate filter preset on the controller, and the integrated display will immediately indicate all information of relevance to the given setting.
The internal electronic circuitry is shock-mounted on rubber grommets, while a dolly facilitates transport and affords additional protection against damage and dirt.
Features:
- Output power, Subwoofer: 1000 W RMS, Class D
- Output power, Mid/High: 1000 W RMS, Class D
- Protection circuits: DDO Pro Limiter, thermal protect, short-circuit
- Line In/ Through: XLR female, electronically balanced & floating
- Mid/High Out: 1x Speakon NL 4
- Mains In/Out: DDO-Pro Net/ RS 485 Ethercon
- Woofer: 18”
- Frequency response- 10 dB: 36 Hz – fx
- Frequency response +/- 3 dB: 42 Hz – fx
- Sensitivity 1W/1m: 101 dB
- Max. SPL calculated: 134 dB
- Max. SPL peak: 133 dB
- Max. SPL: 130 dB 10% THD (50 Hz- 200Hz)
- Enclosure (birch): 18 mm (3/4”), 13-ply
- Finish: Black polyurethane lacquer
- Grille: Metal grille with black acoustic foam
- Handles: 6 slot grips routed into the side panels, 1 on the top
- Pole mount: M20
- Weight: 59 kg/ 129.8 lbs.
- Dimensions (W x H x D): 51 x 73 x 71 cm, 20” x 28 3/4” x 27 7/8”
- Accessories: Protective cover, dolly, stack plate
