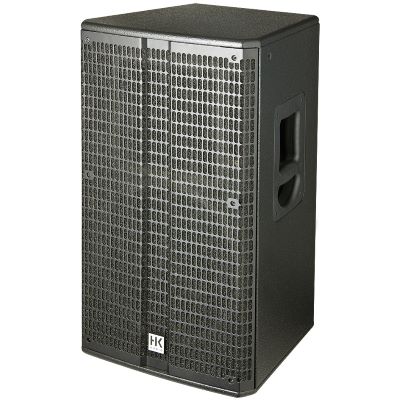

HK Audio Linear 5 115 F passiv
We are no longer offering this product.
You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.
- Related Products
- more of HK Audio
- all articles from the category Speakers Passive
HK Audio Linear 5 115 F passiv Product Details
Features:
- Model L5 115 F
- Max SPL peak 139 dB half space
- Max SPL 130 dB half space
- Power-handling nominal (RMS) 600 Watt
- Power-handling, peak 2400 Watt
- Power-handling, program 1200 Watt
- Frequency response +/- 3 dB 60 Hz - 18 kHz
- Frequency response -10 dB 55 Hz - 20 kHz
- Nominal impedance 8 Ohm
- Sensitivity 1W 106 dB
- Connections 2 x Speakon NL 4
- Low/ Mid Speaker 15" with 3" voice coil
- HF Driver 1" with 1,75" voice coil
- Horn characteristics 60°- 90° (asy) x 55° CD horn, rotatable
- Equalizer EQ switch Flat / Contour
- Crossover frequency 1,7 kHz, 12dB/Oktave
- Pole mount Duo Tilt 3/7
- Rigging points 3 x M8
- Handles 2 integrated
- Optional accessories Protective cover
- Enclosure Hybrid (birch multiplex / MDF)
- Grille 2 mm metal grille backed with black acoustic foam
- Finish Acrylic enamel, black
- Dimensions (WxHxD) 44,9 x 70,8 x 45 cm
- Weight 30,1 kg / 66,4 lbs
Specs:
- Impedance: 8 Ω
- Power: 500 W
- Housing Material: MDF
- Pole Mount: yes
- Airworthy: yes
- Woofer: 1 x 15
- Tweeter: 1 x 1,75
- Set Offer: no
- Type: Full Range Speaker
- Theme: PA and Sonication
