Icon Qcon Pro X B-Ware

Why B-Ware: Slight signs of use.

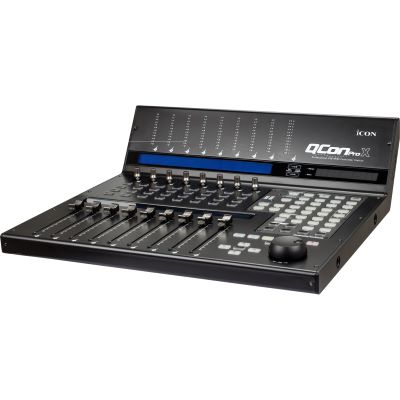

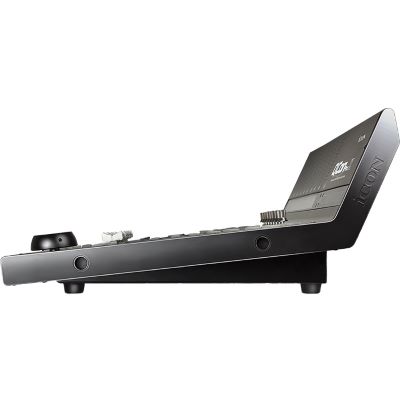

USB MIDI DAW Controller

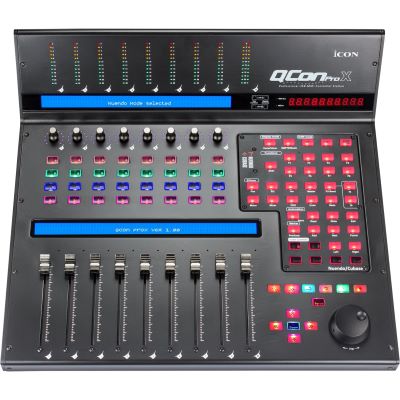

The new edition of the successful 8-channel QCon Pro control surface, now in all-black garb, two displays, 18 assignable buttons, changeable aluminum panels tailored for the DAW you're using, and newly developed meter bridge with 12-segment LED display each.

Features:

• 8 touch-sensitive & motorized channel faders & 1 touch-sensitive & motorized master fader.
• LED metering bridge incl. 12-segment LED level meter per channel
• Stereo LED level meter for the master channel
• 8 potentiometers with dual function (turn & confirm) to control different parameters, equipped with multi-color LED display
• 11-step LED display for each potentiometer to indicate the set position
• 2 large backlit LCD displays for showing channel names, control values etc. per channel
• 12-stage LED display for showing the current time position in SMPTE or BBT format
• 18 freely assignable keys
• Jog wheel for quick search and control within the project
• Illuminated buttons per channel including record, solo, mute, select and monitor plus 6 illuminated transport buttons including play, stop, record, rewind, forward and loop
• Illuminated zoom button with 4 directional keys
• 9 illuminated, assignable MIDI function keys
• Expandable up to 32 channels with 3 units of iCon QCon EX G2
• Optional expansion units available: e.g. motorized joysticks, key or potentiometers

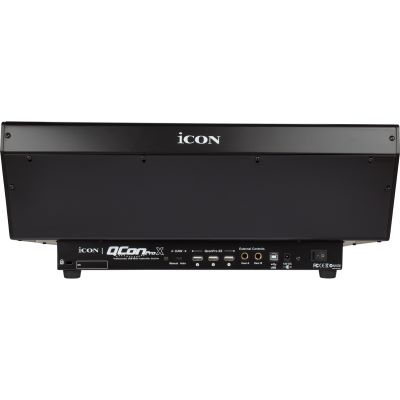

• User A & User B RCA jacks for connecting pedals
• Automatic detection as well as manual mode for setting different DAWs
• Class compatible with Windows XP, Vista (32-bit), Windows 7 (32-bit and 64-bit), Windows 8 (32-bit and 64-bit) and Mac OS X (IntelMac)
• USB 2.0 high-speed connectivity, firmware upgrade available via iMap software
• Built-in Mackie Control protocol for using the QCon Pro under Cubase, Nuendo, Samplitude, Logic Pro, Ableton Live, Reaper, Reason, Studio One and Bitwig, as well as Mackie HUI protocol for Pro Tools

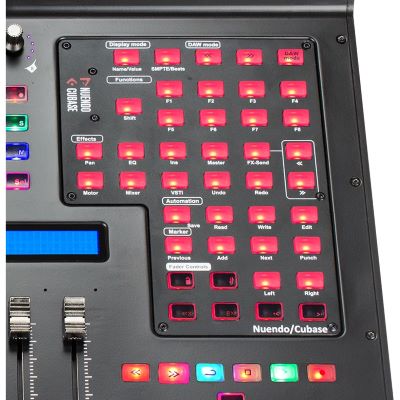

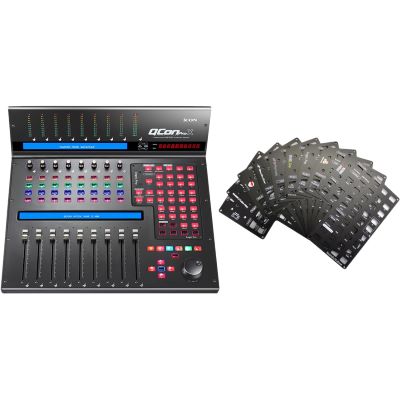

• Various overlay slides available for popular DAWs such as Cubase, Nuendo, Samplitude, Logic Pro, Ableton Live, Reason, Reaper, Studio One and Bitwig

Specs:

• Type: DAW Controller
• Color: Black
• MIDI Inputs: 0 Ports
• MIDI Outputs: 0 Ports
• Host Port: USB
• Jogwheel: yes
• Theme: Recording and Studio
