NEW Midiplus Up

Midiplus Up - Professional 8-channel DAW controller for maximum efficiency in the studio

The Midiplus Up is a sophisticated 8-channel DAW controller designed specifically for music producers, sound engineers and creative minds who want to control their Digital Audio Workstation (DAW) with maximum precision and efficiency. Equipped with motorized faders, RGB-illuminated buttons and high-quality displays, the Midiplus Up brings a new level of control and workflow optimization to any studio.

Whether recording, mixing or arranging, the Midiplus Up offers haptic, visually clear and intuitive control that goes far beyond what is possible with a mouse and keyboard. Thanks to its support of the HUI and Mackie Control protocols, the controller is compatible with almost all common DAWs such as Logic Pro®, Pro Tools®, Cubase™ or Ableton® Live™.

Midiplus - Innovative studio technology with high practical suitability

As an established manufacturer of professional audio hardware, Midiplus stands for high-quality devices with an excellent price-performance ratio. The company has made a name for itself with innovative solutions, particularly in the field of MIDI and DAW controllers. With the Midiplus Up, Midiplus once again proves how intuitive and powerful modern studio hardware can be.

The Midiplus Up was developed on the basis of practical requirements from everyday studio life - with a focus on workflow, ergonomics and flexible usability.

Technical details of the Midiplus Up DAW controller

The Midiplus Up is equipped with eight 100 mm long, touch-sensitive motorized faders that ensure precise automation movements and exact level control. Each channel also has a clickable rotary control and dedicated buttons for Solo, Mute and Select.

Eight high-resolution 1.3-inch color displays provide a maximum overview, displaying important information such as channel names, levels and parameters in real time. The 73 RGB-backlit silicone buttons provide direct access to transport functions, automation modes (Read, Write, Touch, Latch, Trim) and other shortcuts.

A central control element is the clickable jog wheel with associated function buttons - ideal for fast navigation, zooming and precise editing within the session. In addition, the Midiplus Up offers eight shortcut buttons that can be assigned individually.

The controller has an ergonomic fold-out stand system with two adjustable tilt angles (8° and 0°) so that the working angle can be optimally adjusted - a well thought-out solution for long studio sessions.

Connection is via USB Type-C, with both USB-C to C and USB-C to A cables included in the scope of delivery. A separate mains adapter (DC 12V/2.0A) provides the necessary power supply for the powerful controller.

Why the Midiplus Up is revolutionizing studio work

The Midiplus Up takes DAW control to a professional level. The combination of tactile feedback, automated faders and a sophisticated user interface enables audio projects to be edited much faster and more precisely. Especially with complex arrangements or extensive mixdowns, using the Up saves valuable time and makes working more intuitive.

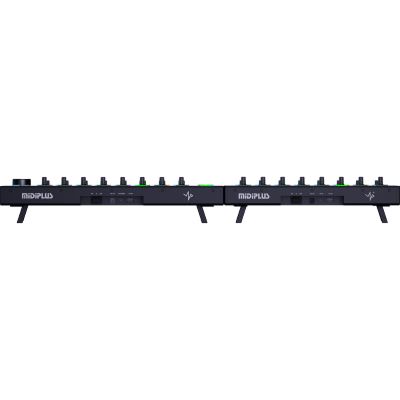

Compared to conventional keyboard and mouse controls, the Up offers direct physical feedback - a decisive advantage when it comes to controlling volumes, plug-in parameters or automation data. The ability to expand the controller to up to 32 channels with up to three Up+ expansion modules also makes it a future-proof investment for any studio.

The complete integration into the most common DAWs, the high-quality design and the ergonomic operation make the Midiplus Up the first choice for demanding users who want to optimize their workflow without sacrificing a haptic feel.

Features:

• Can be expanded to up to 32 channels with the optional Midiplus Up+ (1x Midiplus Up + 3x Midiplus Up+.)
• 8 touch-sensitive, motorized 100 mm faders
• 8 clickable rotary knobs with precise parameter control
• 8 high-resolution 1.3" color displays for channel and parameter display
• Compatible with HUI and Mackie control protocols
• Support for Logic Pro®, Pro Tools®, Cubase™, Ableton® Live™
• 73 RGB-illuminated silicone buttons for transport, automation and shortcuts
• Dedicated buttons for Read, Write, Touch, Latch and Trim
• 6 transport buttons for play, stop, record, rewind, fast forward, loop
• Jog wheel with companion buttons for precise navigation
• 8 freely assignable shortcut buttons
• Extendable feet with two tilt angles (8° and 0°)
• USB Type-C port for PC/MAC, USB Type-A for expansion, DC port for power adapter
• Dimensions: 442 x 295 x 54 mm
• Weight: 3.45 kg
• Scope of delivery: USB-C to C cable, USB-C to A cable, operating instructions

Specs:

• Color: Black
• MIDI Inputs: 0 Ports
• MIDI Outputs: 0 Ports
• Host Port: USB
• Jogwheel: yes
• Type: DAW Controller
• Theme: Recording and Studio
