Korg Modwave Module digitaler Wavetable-Synthesizer

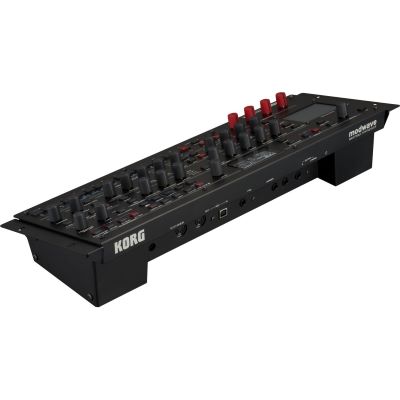

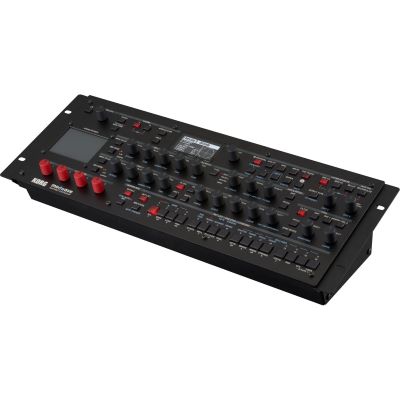

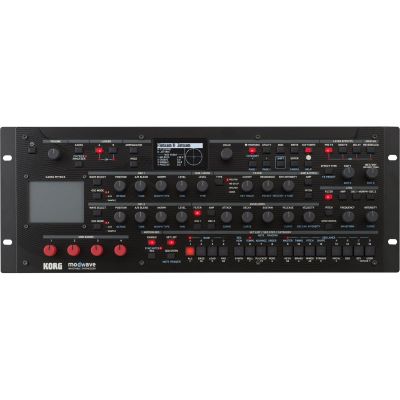

The modwave module is the space-saving rack version of the modwave mkII and has the same controls and features as the surprisingly versatile wavetable synthesizer from KORG, with the exception of the keyboard and the pitch/modulation wheels. The modwave sound generation is based on a combination of wavetables, PCM samples and various filter models, which, in conjunction with extensive modulation possibilities and a top-class effects section, offers almost infinite possibilities for sound design. The innovative KAOSS PHYSICS function enables unique modulations based on a physical model in which a virtual ball is thrown into a virtual space and continues to move there based on modifiable physical conditions (acceleration, deceleration, bouncing off walls, etc.), whereby this "ball" can be "guided" and "set in motion" via the integrated X/Y touchpad. Thanks to Motion Sequencing 2.0, the integrated step sequencer enables complex programmed sound changes with parameter changes on up to four different tracks. For individual expansion, a total of 4 GB of additional memory is available for your own samples, which can be transferred to the instrument using editor software. The modwave module also supports the MIDI 2.0 Property Exchange Standard and polyphonic aftertouch, making it an ideal complement to the KORG Keystage MIDI 2.0 keyboard. For use as a desktop module, you can choose between two different installation angles. Alternatively, the modwave module can also be installed on 4 height units in a conventional 19" rack to save space.

Features:

• Korg - Modwave Module digital wavetable synthesizer
• Desktop/rack version of the modwave mkII
• 60 stereo voices
• Modwave synthesis based on wavetables and PCM samples with versatile filter models
• 2 layers of 2 oscillators (wavetable or PCM) per sound program
• 4 GB user memory for your own sample material
• KAOSS Physics with integrated X/Y touchpad
• Support for the MIDI 2.0 property exchange standard
• Support for polyphonic aftertouch
• 4 assignable MOD controls
• 4 envelopes
• 5 LFOs
• 2 MOD processors
• 2 key tracking generators
• Motion Sequencing 2.0
• 3 effect blocks + master reverb and 4-band equalizer
• Inspiring Randomize function for creating new sounds at random

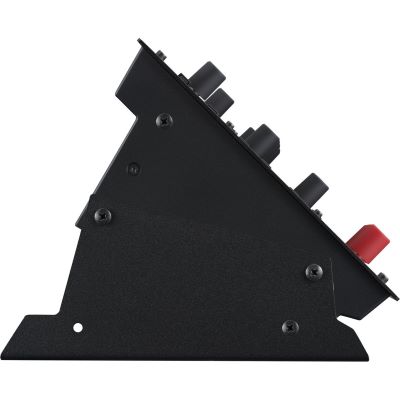

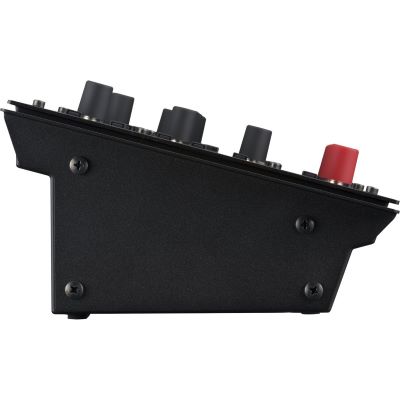

• Two different installation angles when used as a desktop module
• Can be mounted in a 19" rack (4 U)
• Fully compatible with modwave, modwave mkII and modwave native

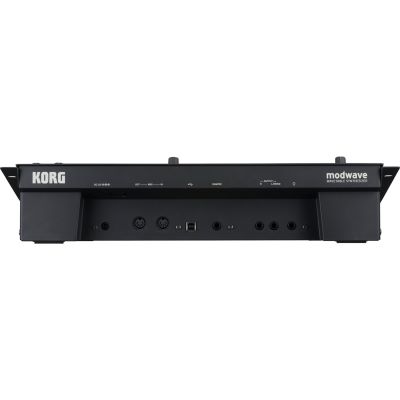

• Connections: Headphone output, L/MONO and R outputs, damper pedal input, MIDI IN/OUT, USB type B
• Power supply: External power supply unit (DC 12V, 2,500 mA, included)
• Power consumption: 5 watts
• Dimensions (W x D x H): 483 x 172 x 107 mm
• Weight: 1.7 kg

Specs:

• Color: Black
• USB-MIDI: USB and MIDI
• MIDI Inputs: 1 Port
• MIDI Outputs: 1 Port
• Type of sound generation: digital
• Type: Synthesizer
• Theme: Recording and Studio
