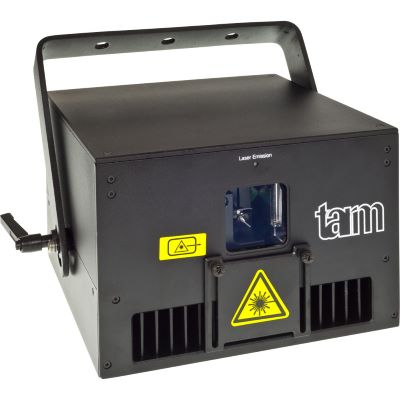

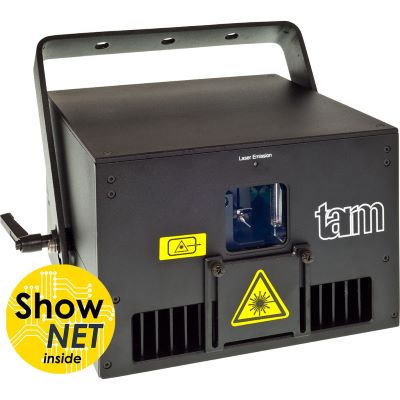

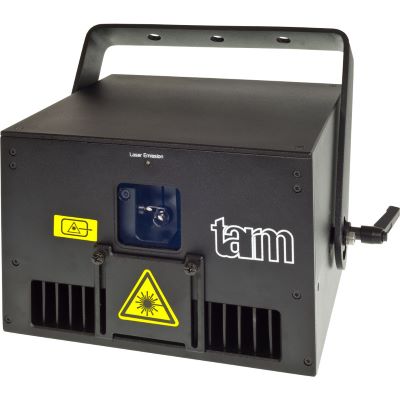

Laserworld Laser Tarm 2.5 ShowNet

The Tarm 2.5 is a full color white light laser system with full analog color modulation, pure diode assembly and a guaranteed output power(after optics) of 2'700mW. The Tarm 2.5 (ShowNET) systems have an integrated digital to analog converter (DAC) for showcontroller and showeditor, but can also be controlled with any ILDA laser control software like Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP etc. via an external ILDA interface (e.g. FB3). With the integrated ShowNet network interface and the included laser show software, inexperienced users can create their own laser show already in the beginner-friendly "Dj Mode", while experienced users can edit all settings manually in the "Professional Mode". Tarm 2.5 has with the high quality projector very good beam characteristics with a beam diameter of approx. 3.5 mm and a divergence of less than 1.0 mrad (full angle) and is strongly positioned in the laser power: Red (750 mW / 637 nm), Green (700 mW / 520 nm) and Blue (1'500 mW / 450 nm). With 45 kpps at 8° ILDA and a maximum scan angle of 50°, the scanners are also very fast, making them suitable for more complex graphic projections and professional applications.

Features:

• 2'700 mW guaranteed power after optics
• very fast maximum scan speed of 45 kpps 8° ILDA
• high precision diode arrays provide a small beam diameter with excellent divergence of less than 0.9 mrad at full angle
• novel method to increase the beam precision of the single-mode diodes
• pure diode laser
• beautiful colors and color gradients
• potentiometers to adjust the color intensity
• housing is very robust and dustproof, reduces maintenance to a minimum
• mounting bracket can be rotated, allows hanging and standing mounting of the laser
• Compatible with any ILDA laser control software
• Switchable scan safety and switch for mirroring the image on X and Y axis

Technical data:

• Power Red: 700 mW / 637 nm
• power blue: 1'500 mW / 450 nm
• Power green: 750 mW / 520 nm
• Beam parameter(full angle): approx. 3.5 mm / 0.9 mrad
• Laser source: Diode
• Laser class: 4
• Operating modes: ILDA, DMX, LAN, ArtNet, integrated SD card, automatic mode, master-slave
• Scanner: 45kpps ILDA 8°
• Scanning angle(MAX): 50° maximum
• Accessories: power cable, user manual, interlock, key, showeditor full version software license included in delivery
• Power consumption: 100 W
• Power supply: 85 V - 250 V / AC
• Weight: 7kg
• Dimensions: 220 / 220 / 150 mm

ATTENTION: We would like to point out that this device contains a class 4 laser (according to the classification according to DIN EN 60825-1: 2015-07).
