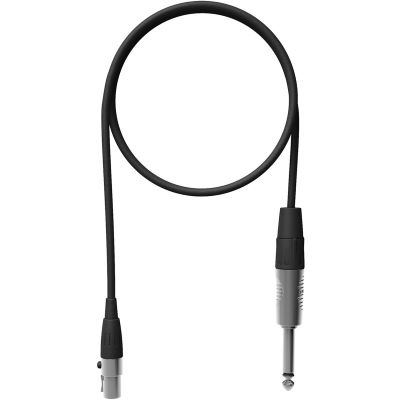

LD Systems U308 BPG - Funksystem with Bodypack und Gitarren Kabel

The LD Systems U300 series convinces by a very good transmission quality. It offers a range of up to 100m under ideal conditions. The transmitter of the U308 system has a runtime of up to 10h. It has a total of 12 channels and can be used with up to 5 other systems.

Features:

• UHF diversity radio systems with FM technology
• 12 selectable channels
• 100 meter range under ideal conditions
• Up to 6 systems can be used simultaneously
• ASC infrared synchronization of transmitter and receiver
• Squelch with pilot tone
• 10 h transmitter runtime with two AA batteries
• Receiver in sturdy metal housing
• Optional rack mounting kit as accessory
• U500 replacement capsules also suitable for the U300 handheld microphone

Technical data:

• Radio frequency range: 823 - 832 MHz , 863 - 865 MHz
• weight: 0,83 kg

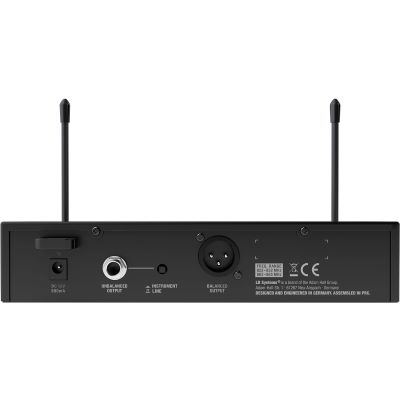

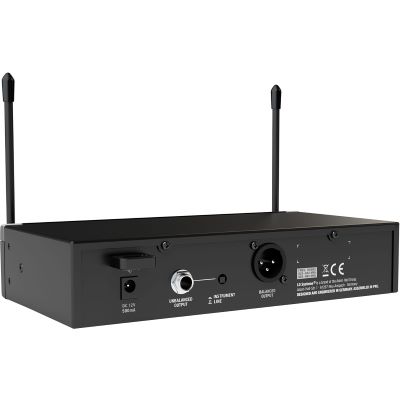

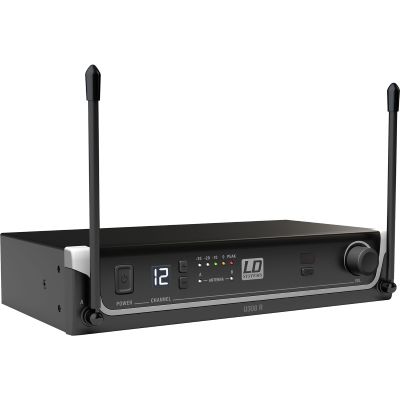

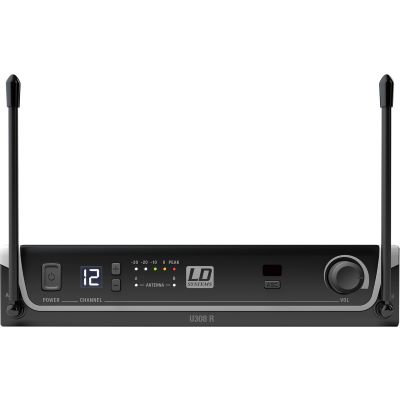

Technical data receiver:

• Modulation type: FM
• Channels: 12
• Antenna inputs: 2 x fixed
• Frequency response: 25 - 16,000 Hz
• Power supply: 12 V DC - 18 V DC (500 mA), external

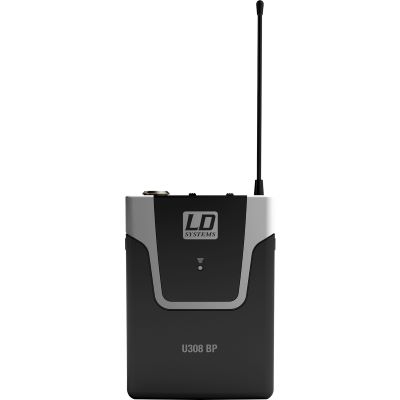

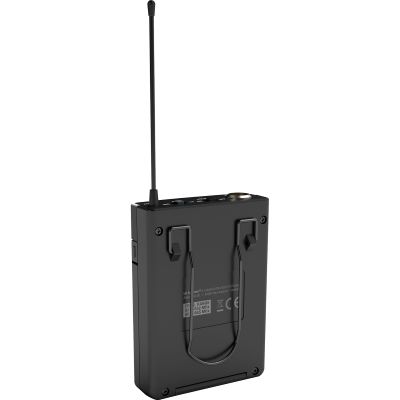

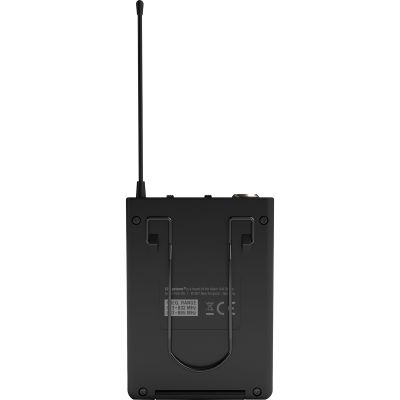

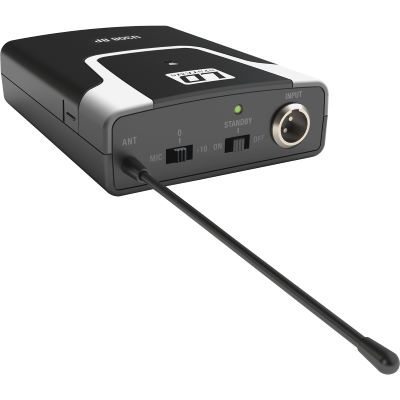

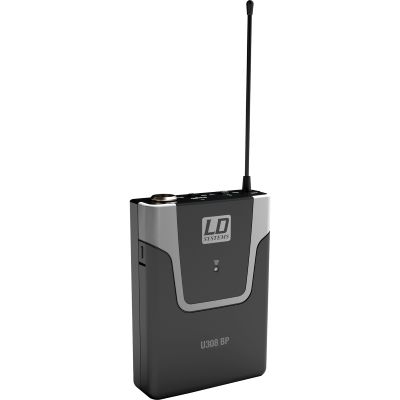

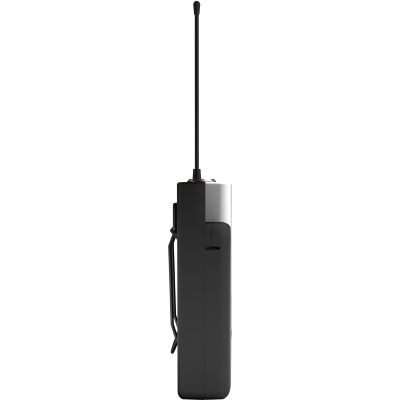

Technical Data Bodypack:

• Inputs: Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
• HF output power: 10 mW
• Power supply: 2 x AA batteries
• Operating time: > 10 hrs.

Specs:

• Color: Black
• Set Offer: no
• Frequency band: UHF
• Type: Radio System
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (2.6 MB)
