Shure GLXD 16+ E

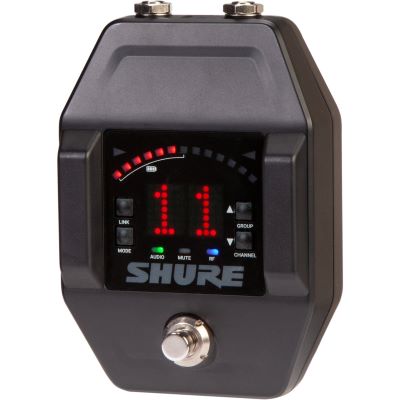

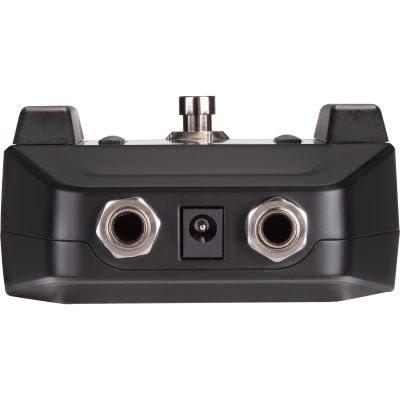

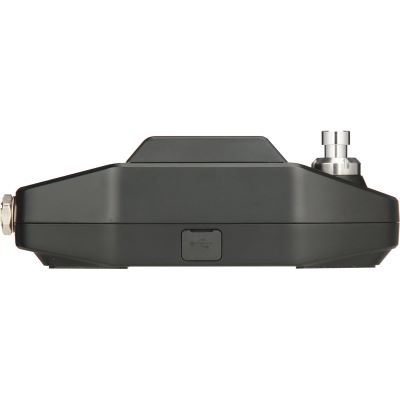

The new GLX-D+ wireless system in pedalboard format includes the WA305 premium guitar cable, the GLXD1+ digital bodypack transmitter and the GLXD6+ pedalboard receiver. Wireless freedom without compromise or complicated setup. The new GLXD6+ dual-band pedalboard-sized receiver features a rugged metal housing for full integration into your pedalboard (9 V DC power supply). The built-in tuner with a new 6.3mm guitar input makes it easy to switch between rehearsal and live performance - whether you plug your guitar directly into the pedalboard or play wirelessly. Easily switch between two or more transmitters linked to a single receiver.

Features:

GLXD 6+:

• Dimensions: 138 x 95 x 48 mm
• Weight: 560 g
• Housing: Aluminum
• Power requirements: 9 V - 15 V, 400mA
• Noise rejection: 35 dB, typical
• Gain adjustment range: -20 to 40 dB in 1 dB steps
• Configuration 6.35 mm (1/4") output: Impedance balanced
• Impedance 6.35 mm (1/4") output: 100 Ω (50 Ω, unbalanced)
• Maximum Audio Output Level-6.35 mm (1/4") connector (at 3 kΩ load): +8.5 dBV
• Pin Assignments 6.35 mm (1/4") Connector: Tip=audio, Ring/Sleeve=ground
• Antenna input impedance: 50 Ω
• Antenna Type: Dual Band Internal Monopole
• Maximum Input Level: -20 dBm

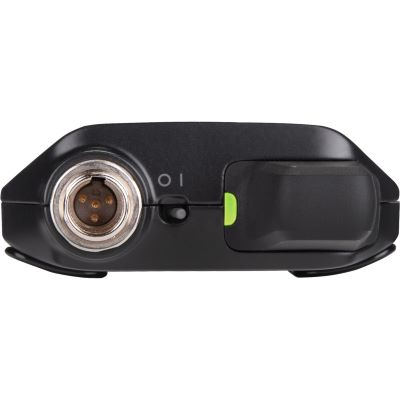

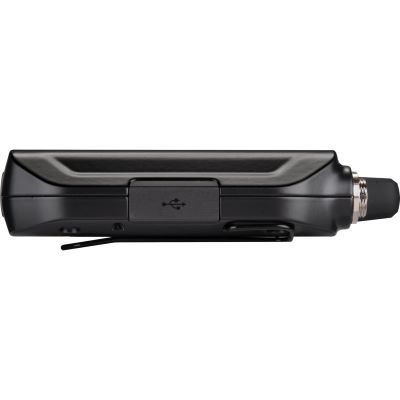

GLXD 1+:

• Dimensions: 115 x 66.94 x 28.51 mm, without antenna
• Weight: 153.1 g, without battery
• Power requirements: 3.7 V rechargeable Li-Ion battery
• Housing: cast metal, black powder coated
• Input impedance: 900 kΩ
• RF output power: 10 mW E.I.R.P. max.
• Connector: 4-pin mini-plug (TA4M)
• Configuration: Unbalanced
• Maximum input level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp-p)
• Antenna type: Dual band internal monopole

Specs:

• Color: Black
• Set Offer: no
• Frequency band: 2.4 Ghz
• Type: Radio System
• Theme: Guitars and Basses
