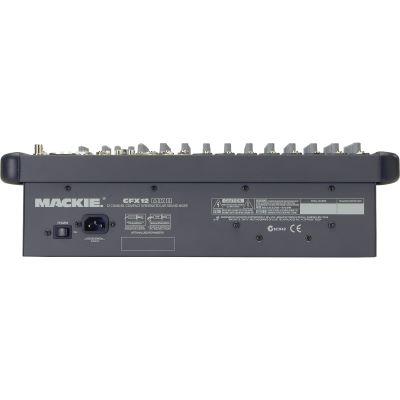

Mackie CFX 12 MKII

Mackie CFX 12 MK II

The New Standard for Affordable, Rugged Mixers
It all started with Mackie's VLZ PRO's, the mixer that defined the standards for affordable high-quality sound. Now, Mackie's new CFX12mkII sets the standard for affordable and rugged mixers with built-in effects.


Mackie CFX12mkII at a Glance:

* 12-channels - 8 mono mic/line and 2 stereo line.
* Built-in 32-bit EMAC™ digital effects processor with 16 effects.
* Onboard nine-band stereo graphic equalizer.
* 3-band EQ with swept mid on mic/line, 4-band EQ on stereo line channels.
* Pan, Mute, PFL solo on each channel.
* Subwoofer output from built-in 18 dB/octave, 75 Hz crossover.
* Logarithmic taper 60 mm faders.
* 48 V phantom power.



These wildly popular 12, 16, and 20-channel live sound mixers feature genuine Mackie-designed mic preamps, 9-band phase-accurate graphic equalizers, and a host of great features for live sound. The new CFX12mkII includes sleek grey cosmetics, new ergonomic knobs, impact-resistant rubber sides, and new irresistibly low prices. The CFX12mkII features genuine low-noise, high-headroom Mackie mic preamps, 8 mono mic/line and 2 stereo line channels, a built-in 32-bit EMAC™ digital effects processor with 16 effects, external and internal EFX sends and EFX to Monitor control, an onboard 9-band stereo graphic equalizer, subwoofer out, and a true 4-bus design ideal for live sound applications, plus a great deal more, all designed to make live sound mixing a breeze - an efficient, great-sounding breeze!


Mackie CFX12mkII Features:

* Genuine low-noise, high-headroom Mackie mic preamps.
* 12 mono mic/line and 2 stereo line channels.
* Built-in 32-bit EMAC™ digital effects processor with 16 effects.
* External and internal EFX sends and EFX to Monitor control.
* Onboard nine-band stereo graphic equalizer.
* True 4-bus design ideal for live sound applications.
* 2 Pre/Post aux sends and internal/external FX sends.
* 3-band EQ with swept mid (100 Hz to 8 kHz) on mic/line.
* 4-band EQ on stereo line channels.
* Pan, Mute, PFL solo on each channel.
* 100 Hz low-cut filters on all mic/line channels.
* Subwoofer output from built-in 18 dB/octave, 75 Hz crossover.
* Break switch mutes all channels.
* Headphone output with level control.
* Tape/CD inputs with level control assignable to Main Mix.
* Logarithmic taper 60 mm faders.
* 48 V phantom power.
* 12 V BNC lamp.

Instruction manual / Safety instructions:

• Manual (1.43 MB)
