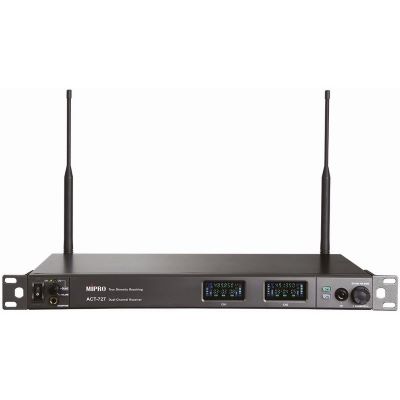

Mipro ACT 727B UHF 823-832 MHz

Mipro ACT 727B UHF 823-832 MHz - The ACT 700 series is rugged and can be used flexibly and professionally in a variety of applications. The industry's only bright colour vacuum fluorescent display (VFD) offers a wide viewing angle on the high contrast and crystal clear display of all parameters. Thanks to a further improved HF and IF circuit of the 3rd generation, the receivers offer excellent and superior audio and radio quality.

Features:

• EIA-Standard 1/2 19" RU (ACT - 717B ) & 19" RU (ACT-727B/747B ) robust heat dissipating metal housing with perfect shielding against interference.
• UHF PLL synthesizer with high stability and low emissions.
• 3rd Generation Mipro: Improved RF filter elements and circuits for lower sensitivity to interference and more interference-free channels.
• 104 preset channels in 10 groups together with the Auto-Scan function enable a quick search for interference-free channels.
• The world's first ACT ™ (Automatic Channel Targeting ) offers precise and fast frequency synchronization between receiver and transmitters.
• True diversity antenna system for best reception quality.
• Dual squelch setting for NoiseLock and pilot tone. transmitter can be switched on/off at any time without causing annoying noises.
• The industry's only bright colour vacuum fluorescent display (VFD) offers a wide viewing angle on the crystal clear display of all parameters. Automatic dimming of the display in stand-by mode.
• All settings can be made intuitively and quickly using a single knob.
• Adjust the reception sensitivity using the interference warning indicator. Higher sensitivity for a wider reception range, lower sensitivity to reduce interference.
• Output signal can be tapped over 3 steps adjustable as single or sum signal. The output level is tuned to the sensitivity of the microphone capsule for optimal performance.
• TNC antenna connections with 8V power supply (e.g. for optional boosters)
• PC control software for real-time control and monitoring .
• Internal switching power supply for a stable power supply of 100 ~ 240V AC

Technical data:

• Model: ACT-727B
• Channel: Double
• Housing (metal): EIA standard 19 " 1U
• Display: Color VFD displays frequency code, RF & audio level, transmitter battery indicator, diversity signals, interference warning indicator. Programmable user names, group, channel, squelch level, PC address and lock status
• Frequency range: 823-832 MHz
• Bandwidth: 24 MHz (center gap 10 MHz)
• Frequency setup: 104 selectable channels (ML 44 channels, max. 8 compatible), group 1~6 > 8 compatible channels, group 7~8 > 12 compatible channels, group 9~10 > 16 compatible channels
• Antennas: true diversity
• Tuner procedure: PLL Synthesized
• Frequency stability: ±0.005%(-10~50℃)
• Sensitivity: 6 dBμV, with signal-to-noise ratio > 80 dB, 40 kHz deviation
• Signal-to-noise ratio: > 105 dB(A)
• Distortion factor: <0.5% at 1KHz
• Transmission range: 50 Hz~18 kHz, with high pass filter
• Squelch: Dual squelch setting for NoiseLock and pilot tone
• Output signal strength: output level is tuned to the sensitivity of the microphone capsule for optimal performance
• Max. Output power: balanced: +16dBV / 0dBV / - 6dB; unbalanced: +10dBV / 0dBV / - 6dB
• Connections: Balanced XLR connector
• Output signal: single or sum signal
• Operating mode: Manual or PC controlled via optional control software
• Display: VFD (Vacuum Fluorescence Display)
• Power supply: Internal switching power supply 100~240V AC
• Dimensions (WxHxD): 482 × 44 × 265 mm (19 × 1.7 × 10.5 ")
• Weight: Approx. 3.0 kg (6.6 lbs)
• Transmitter: ACT-72H/ 72HC hand-held transmitter or ACT-72T/ 72TC bodypack transmitter

Specs:

• Color: Silver
• Set Offer: no
• Frequency band: UHF
• Type: Receiver
• Theme: Microphones
