Mooer Preamp LIVE

The PREAMP LIVE from MOOER is the flagship of the popular micro preamps. The digital preamp models in this device are the best of the best from MOOER. Each of the 50 preamp models is a faithful reproduction of a real tube amplifier. In addition, you can capture the sound of your favorite amps with the innovative TONE CAPTURE function. Not only does it contain 12 preamp channels that can be fully programmed with pre/post boost and noise gates, but it also offers 30 different cab simulations that you can assign to each channel individually. The PREAMP LIVE is a platform for guitarists to conveniently set up and control amp sounds in any live situation. Thanks to the sophisticated and intuitive controls and connections, the MOOER PREAMP LIVE is the ultimate digital preamp modeler for any live situation.

Features:

• Preamp Modeller effect pedal
• digital mode of operation
• 50 different authentic reproductions of real tube amplifiers
• 12 independent channels in 3 banks
• 30 different cab simulations, individually assignable to each channel
• Support for third-party IRs (max. sample length 23.2 ms / 1024 points)
• TONE CAPTURE feature for creating extended EQ stages based on sampled external amps or other equipment
• MIDI compatibility
• Additional setup options via Preamp LIVE software (Windows/Mac) or mobile app (Android/Apple)
• 3-band EQ
• integrated switchable pre/post boost
• integrated switchable pre/post noise gate
• Integrated serial effects loop
• true bypass
• controls for volume, bass, mid, treble, gain and boost
• 1 / Source footswitch
• 2 / Target footswitch
• 3 / Capture footswitch
• 4 / Active footswitch
• Status LEDs
• Metal housing

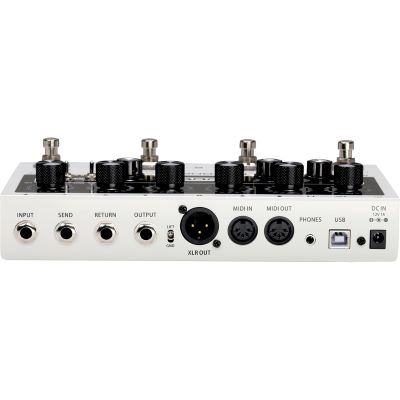

• 6.3 mm mono jacks IN/OUT
• 6.3 mm mono jacks SEND/RETURN effects loop
• Ground lift switch
• Balanced XLR output for connection to PA equipment or audio interfaces
• DIN-5 pin MIDI IN/OUT
• 3.5 mm stereo jack Phones output
• USB B socket for connection to PC and MAC
• Power supply via included 12 V DC power supply unit 2.1 mm x 5.5 mm barrel connector, polarity (-) inside
• Battery operation not supported
• Power consumption 600 mA
• Dimensions (L x W x H) 230 x 130 x 46 mm
• Weight 1,180 g
• Preamp LIVE software (compatible with Windows and Mac) and mobile app (for Android or Apple) available online

Specs:

• Impedance: 0 Ω
• Channels: 12
• Effect Processor: no
• Amplification: Solid State
• Headphone Out: yes
• digital modelling: yes
• Type: Preamp
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (5.3 MB)
