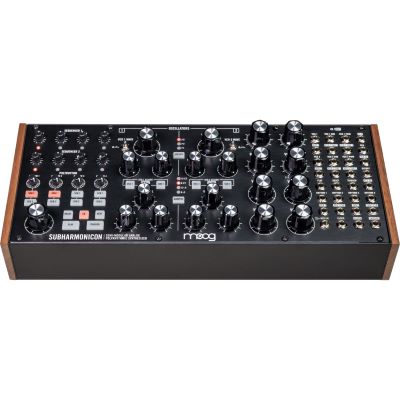

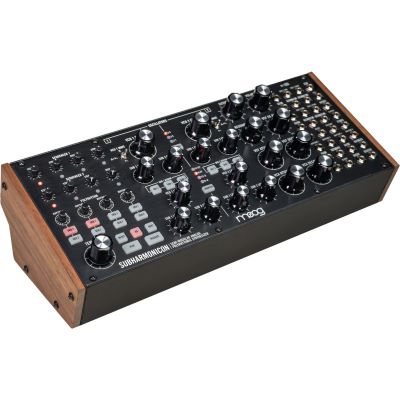

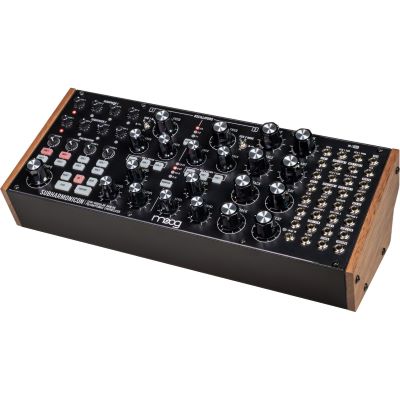

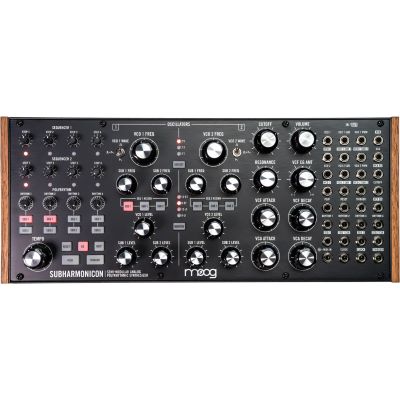

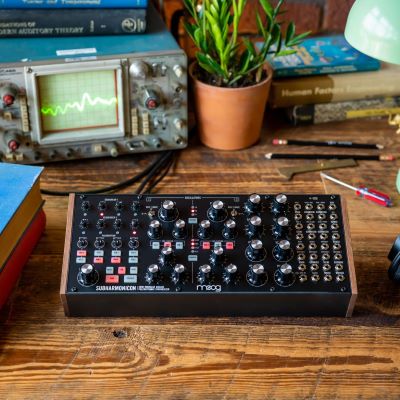

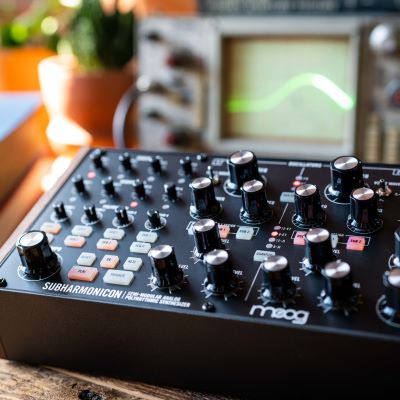

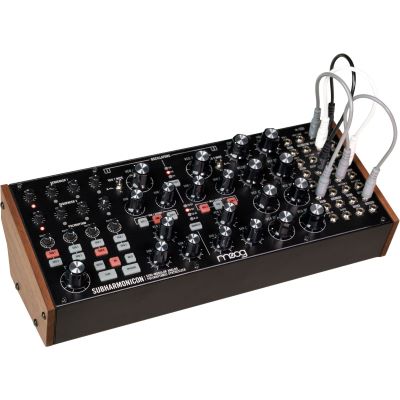

Moog Subharmonicon B-Ware

Why B-goods: Slight signs of use.

Features:

• Analog sound generation

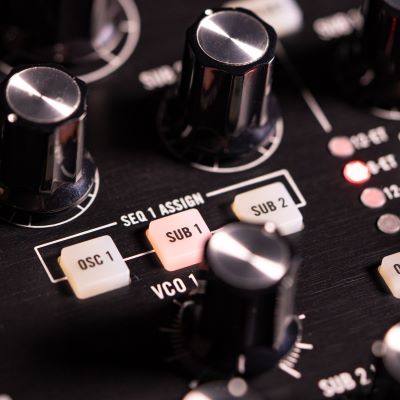

• SOURCES: VCO 1, SUB 1, SUB 2 / VCO 2, SUB 1, SUB 2
• FILTER: self-oscillating ladder filter, low-pass, 4-pole (-24 dB/octave)
• ENVELOPES: VCA EG (attack, decay); VCF EG (attack, decay)
• Analog sequencers (x2)
• STEPS: 4 steps per sequencer, selectable quantization

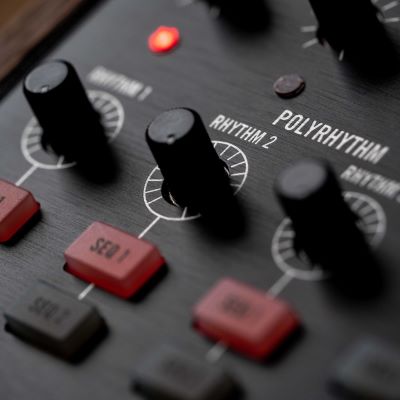

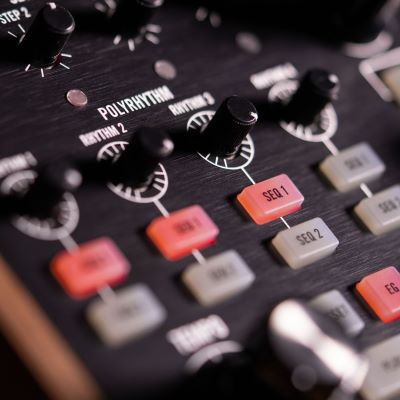

• Rhythm generators (x4)
• RHYTHM: Derived by dividing the tempo by an integer value (1-16)
• CLOCK: 20 BPM to 3,000 BPM (beats per minute; 1 pulse per quarter note), MIDI clock, EXT CLOCK

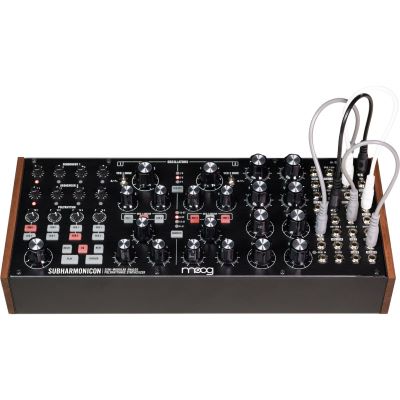

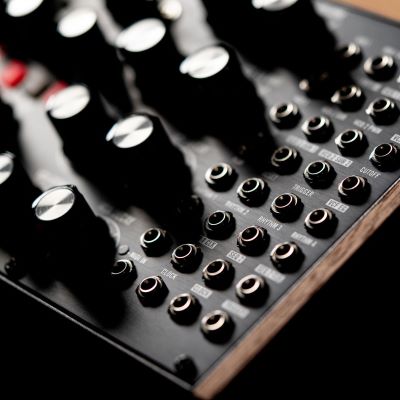

• Patchbay
• JACKS: 32 × 3.5 mm
• INPUTS: 17 input jacks
• OUTPUTS: 15 output sockets
• MIDI: 3.5 mm MIDI input (dongle type A included)

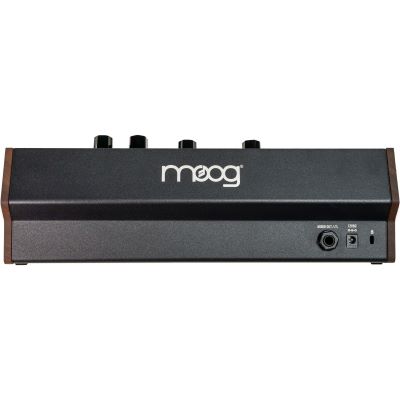

• Rear panel
• AUDIO: 1⁄4" TRS headphones or 1⁄4" TS instrument
• POWER: Power supply connection
• SECURITY: Kensington lock slot
• Dimensions (HxWxD): 10.67 × 31.93 × 13.31 cm
• Weight: 1.58 kg

Specs:

• Type: Synthesizer
• Color: Black
• USB-MIDI: MIDI
• MIDI Inputs: 1 Port
• MIDI Outputs: 0 Ports
• Type of sound generation: Analogue
• Theme: Recording and Studio
