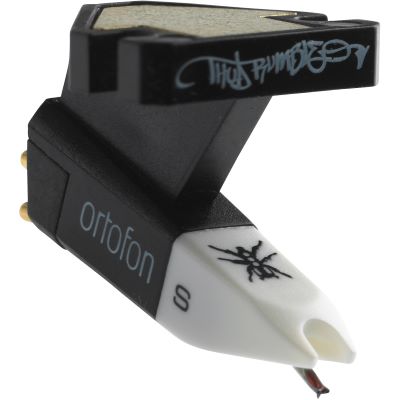

Ortofon OM Set Q-Bert Product Details
Co-developed by one of the most legendary DJs of all time, the Ortofon Q-Bert provides unsurpassed handling, high output voltage, and low wear characteristics that literally put it in a class of itss own. Turntablists and mix DJs alike will appreciate the strong output of this cartridge, coupled with unrivaled tracking ability and sonic characteristics. The Ortofon Q-Bert features a more subdued high end, which helps to minimize surface noise from worn vinyl, and an accentuated mid-range to help bring scratching to the front of the sound stage.
Features:
- Output voltage at 1000 Hz, 5 cm/sec.: 11mV
- Channel balance at 1 kHz: 1,5 dB
- Channel seperation at 1 kHz: 222 dB
- Frequency range at -3 dB: 20 - 20.000 Hz
- Frequency response: 20 - 20.000 Hz, 3dB
- Tracking ability at 315 Hz at recommended tracking force: 90 µm
- Compliance, dynamic, lateral: 12 µm/mN
- Stylus type: Spherical
- Stylus tip radius: R 18 µm
- Tracking force range: 3,0 g (30mN)
- Tracking force recommended: 4,0 g (40mN)
- Tracking angle: 20 °
- Internal impedance, DC resistance: 1680 Ohm
- Internal inductance: 920 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 200 - 400 pF
- Cartridge weight: 5 g

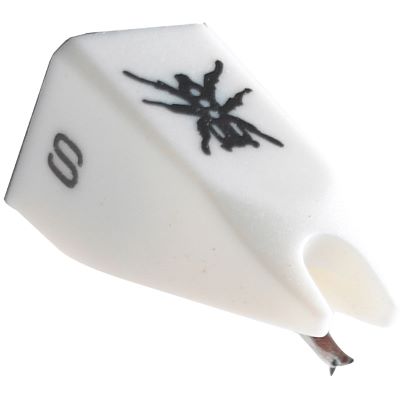

- Replacement stylus unit: Q-Bert
Specs:
- Type: Pickup
- Theme: DJ Equipment
