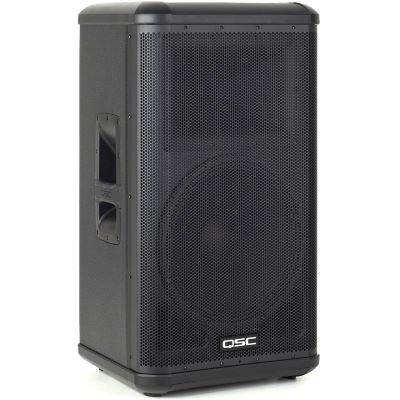

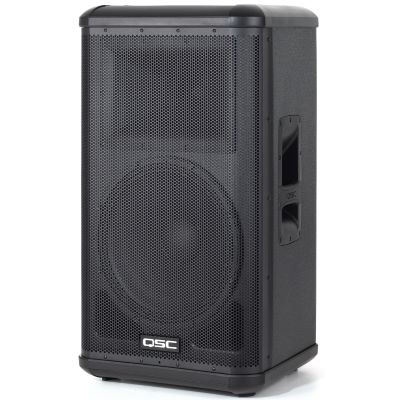

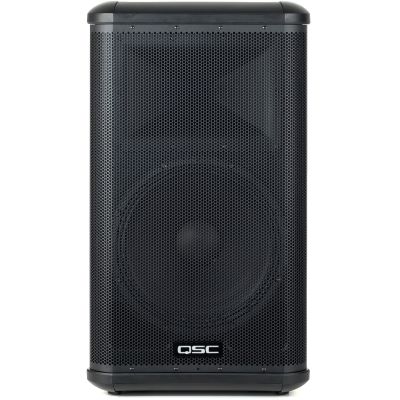

QSC HPR 152i
We are no longer offering this product.
You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.
- more of QSC
QSC HPR 152i Product Details
The bi-amplified 15" 2-way HPR152i is a versatile speaker that's at home in nearly any sound reinforcement setting. A high-power low-frequency driver with a 3" voice-coil provides extension down to 47 Hz. The 1.75" (diaphragm) compression driver on a 90° x 60° horn delivers smooth high frequencies up to 20 kHz. A 500 watt (400 LF / 100 HF) power module includes a 100 Hz high-pass filter (HPF) for use in subwoofer-equipped systems.
Features:
- Power module based on the best-selling RMX series amplifier technology provides 500 total watts of power
- Attractive and professional appearance
- Rugged birch enclosure
- Tour-grade 16 gauge steel grille
- Ergonomic handles with comfortable, non-slip grip
- 35 mm pole socket
- 3 M10 rigging points for suspended installation
Specifications:
- Configuration: 15" 2-way full-range powered loudspeaker
- Transducers: 15" cone transducer with 3" voice coil; 1.75" diaphragm compression driver
- Frequency Response (-3 dB): 54 Hz - 17.5 kHz
- Frequency Range (-10 dB): 47 Hz - 20 kHz
- Nominal Coverage, -6 dB: 90° x 60°
- Maximum SPL (1 meter): 135 dB peak
- Power output:400W LF Class H; 100W HF Class AB+B
- Input impedance: 22k balanced; 11k unbalanced
- Controls: Gain; Low-cut filter; Front LED On/Off; Power; Circuit breaker
- Indicators: Power; Signal; Limit
- Cooling: Convection
- Amplifier protection: Thermal and output power limiting; Output short circuit; Overtemperature muting; Driver DC protection
- Current consumption at 120 VAC (1/8 power EIA noise): 1.5A
- Enclosure: Painted Birch plywood
- Finish: Black textured paint
- Grille: Powder coated 16 gauge steel
- Suspension/Attachment Points: 3 M10 rigging locations
- Connectors: Balanced female XLR line level input; Balanced male XLR full range line level out
- Dimensions: 33.6" H x 19.1" W x17.9" D (853mm x 485mm x 455mm)
- Net weight: 100 lbs. / 45.5 kg
