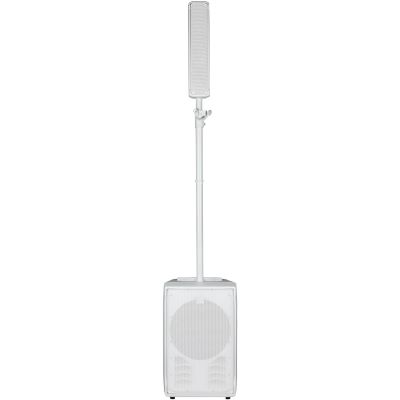

RCF EVOX J8 WH

The RCF EVOX J8 WH features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.

Features:

• 128 dB Max SPL
• 1400 Watt 2-way peak power
• DSP Processing with FiRPHASE
• 12" woofer, high power 2.5" voice coil
• 8 x 2" ultra compact fullrange 1.0" voice coil
• Dimensions (HxWxD): 2350 x 350 x 450 mm / 92.5 x 13.77 x 17.71
• 23,8/52.5 kg/lbs

Technical Specificatons:

• Frequency Response -3 dB: 40 Hz ÷ 20 Hz
• Max SPL: 128 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 30°
• Fullrange: 8 x 2.0'', 1.0'' v.c
• Woofer: 12'', 2.5'' v.c
• Input signal: bal/unbal
• Input connectors: XRL, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu
• Total power: 1400 W PEAK
• High frequencies: 400 W PEAK
• Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
• High frequencies: 200 W RMS
• Low frequencies: 500 W RMS
• Connections: Convection
• Cabinet Material: PP Composite
• Handles: 1 Top
• Pole Mount/Cap: Yes
• Grille: steel
• Colour: White

Specs:

• Power: 700 W
• Housing Material: Plastic
• Pole Mount: yes
• Woofer: 1 x 12
• Tweeter: 8 x 2
• Set Offer: no
• Bluetooth: No
• Type: PA System
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (1.83 MB)
