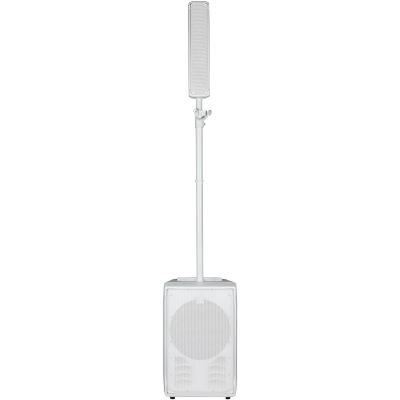

RCF EVOX JMIX8 WH

Taking the RCF EVOX JMIX8 WH one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer.

Features:

• 128 dB Max SPL
• 1400 Watt 2-way peak power
• 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
• DSP Processing with FiRPHASE
• 12" woofer, high power 2.5" voice coil
• 8 x 2" ultra compact fullrange 1.0" voice coil
• Dimensions (HxWxD): 2350 x 350 x 450 mm 92.5 x 13.77 x 17.71
• weight: 24,4 kg/53.8 lbs
• Bluetooth Audio

Technical Specificatons:

• Frequency Response: 40 ÷ 20000 Hz
• Max SPL @ 1M: 128 dB
• Horizontal Coverage Angle: 120°
• Vertical Coverage Angle: 30°
• Fullrange: 8 x 2.0'', 1.0'' v.c
• Woofer: 12'', 2.5'' v.c
• Input Signal: bal/unbal
• Input Connectors: XRL, Jack
• Output Connectors: XLR
• Input Sensitivity: -2 dBu/+4 dBu
• Crossover Frequencies: 220 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, Mic/Line
• Total Power: 1400 W Peak, 700 W RMS
• High Frequencies: 400 W Peak, 200 W RMS
• Low Frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• MIC: 4
• Remote Controlled Storable Gain: Yes
• Gain Range: 0÷45 dB
• Input Noise Level: -114 dBu A-Weighted
• MIC Inputs Impedance: 3 kohm
• Low Cut: 20 Hz ÷ 1000 dB
• Phantom Power +48V: Yes
• Mono Line: 4
• Gain Selection: 0 dB ÷ 45 dB
• Line Input Impedance: 11 kohm
• HI-Z Line Input: 1
• HI-Z Line Inputs Impedance: 1 Mohm
• A/D Dynamic Range: 108 dB
• Stereo Line: 2
• Gain Selection: 0 dB ÷ 45 dB
• Stereo Line Input Impedance (kOhm): 11 kOhm
• Gain Selection: 0 dB
• color: White

Specs:

• Power: 700 W
• Housing Material: Plastic
• Pole Mount: no
• Woofer: 1 x 12
• Tweeter: 8 x 2
• Set Offer: no
• Bluetooth: Yes
• Type: PA System
• Theme: PA and Sonication
